| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Model Number: | WAB |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Corrugated Carton |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Carbon Steel/Stainless Steel | Surface Finish: | Zinc Plated |
|---|---|---|---|
| Type: | Hexagon Head Type | Size: | M6 - M24, 1/4" - 1" |
| Connection: | Common Bolt | Color: | Sliver/Yellow |
| High Light: | Zinc Strut Fasteners,Carbon Steel Strut Fasteners,Zinc Wedge Anchor Bolts |
||

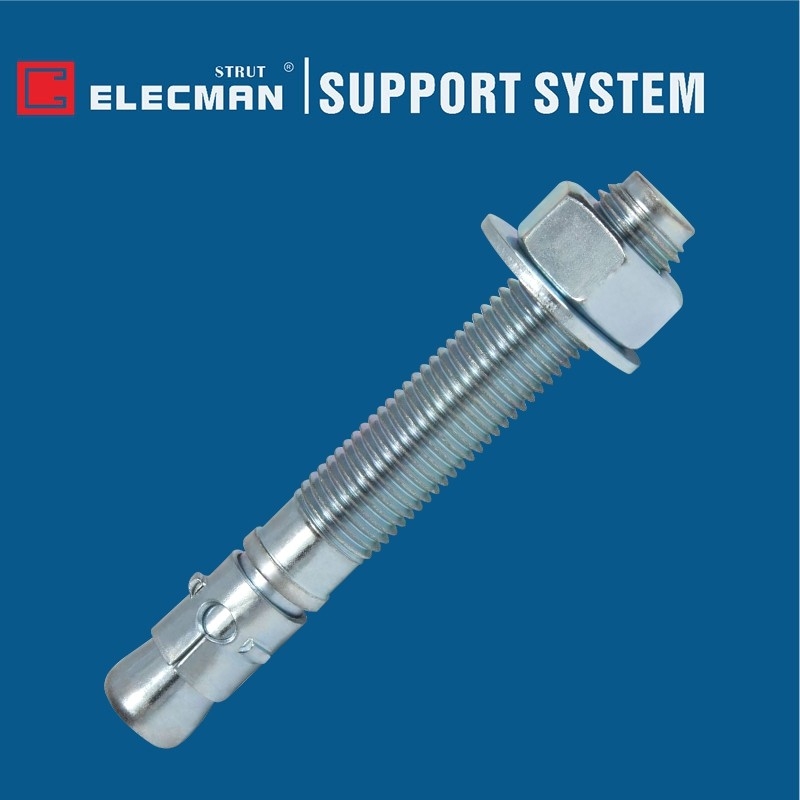

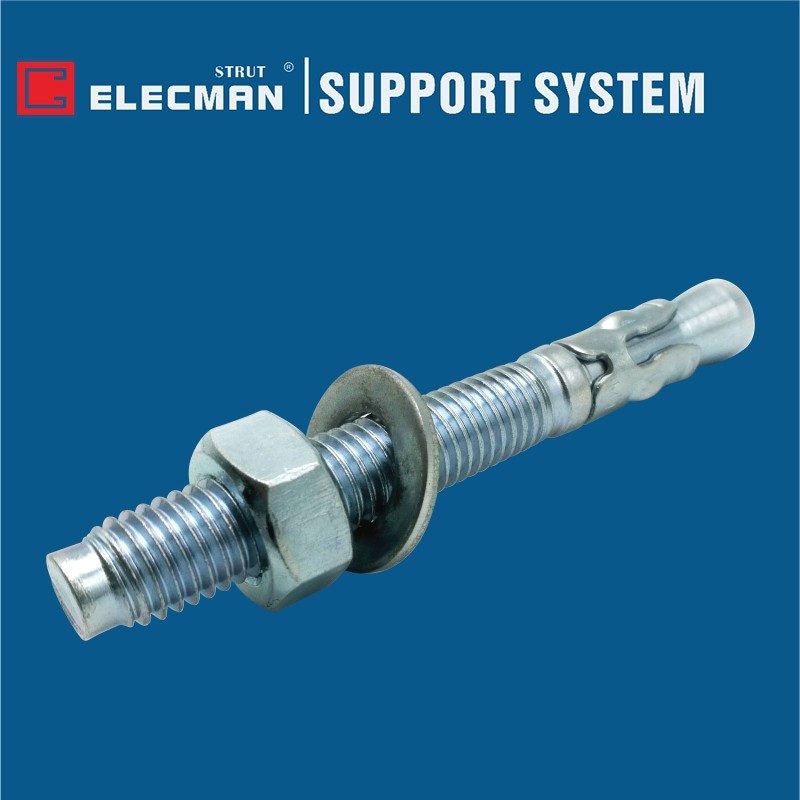

ELECMAN ® Zinc Plated Carbon Steel/Stainless Steel Wedge Anchor Bolts
Applications
ELECMAN ® Zinc plated carbon steel/stainless steel wedge anchor bolt is cold formed and consists of a threaded section with standard coarse bolt threads at 1 end, and a parabolic mandrel at the opposite end for a smoother expansion. It has a 360 degree 1-piece clip that functions as a 2-piece clip for more contact, a torque controlled expansion, and can be installed into a bottomless hole. 3 head styles are available: Hex Nut, Wire Hanger and Tie Down Hook.
Features
Specification Data
ELECMAN provides full size zinc plated carbon steel/stainless steel wedge anchor bolt.
| UNC THREAD | METRIC THREAD | ||||
| CAT # | Trade Size | Length of Anchor | CAT # | Trade Size | Length of Anchor |
| WAB14 | 1/4" | 40 ~ 100mm | WAB-M6 | M6 | 40 ~ 100mm |
| WAB516 | 5/16" | 50 ~ 150mm | WAB-M8 | M8 | 50 ~ 150mm |
| WAB38 | 3/8" | 60 ~ 200mm | WAB-M10 | M10 | 60 ~ 200mm |
| WAB12 | 1/2" | 80 ~ 220mm | WAB-M12 | M12 | 80 ~ 220mm |
| WAB58 | 5/8" | 100 ~ 300mm | WAB-M16 | M16 | 100 ~ 300mm |
| WAB34 | 3/4" | 100 ~ 300mm | WAB-M20 | M20 | 100 ~ 300mm |
| WAB1 | 1" | 120 ~ 300mm | WAB-M24 | M24 | 120 ~ 300mm |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the plugs body is made of high quality brass, every parts of the plugs are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time. For internal packing, use small carton boxes or self sealing plastic bag, for external packing, use good quality corrugated carton. ELECMAN can follow any requirement of customers.
