| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Model Number: | FW |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Corrugated Carton |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Steel/Stainless Steel | Surface Finish: | Zinc Plated, Hot-Dipped Galvanized |
|---|---|---|---|
| Type: | Flat Washer | Size: | M2 - M20 |
| Shape: | Round | Color: | Sliver |
| High Light: | Stainless Steel Strut Fasteners,Strut Fasteners Flat Washers,M10 fender washers bulk |
||

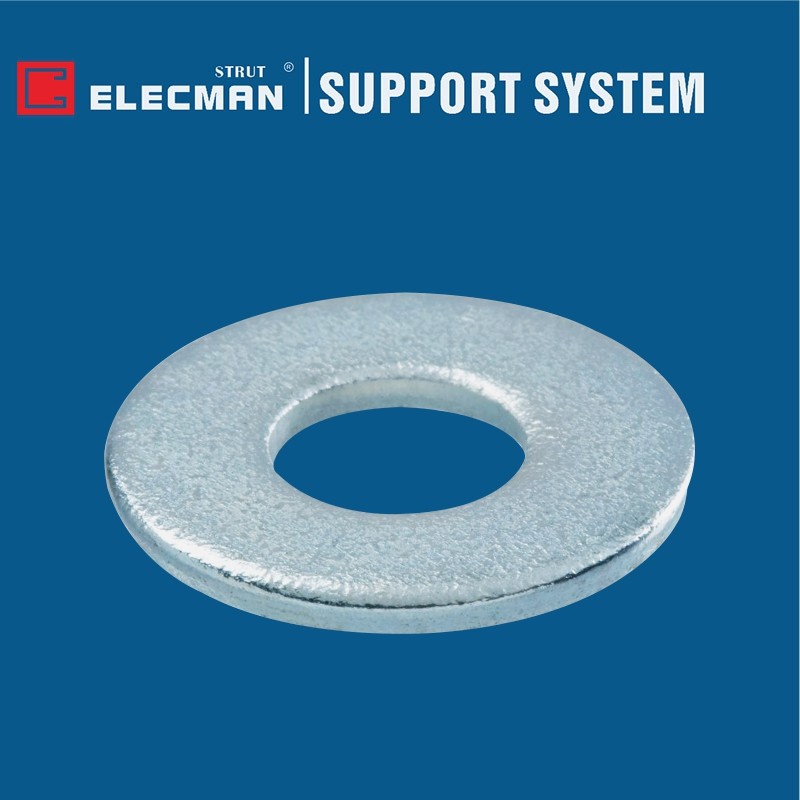

ELECMAN ® Zinc Plated Stainless Steel Plain Circular Flat Washer M2 - M20
Applications
ELECMAN ® Zinc plated stainless steel plain circular flat washers are the most used plain circular washers with an appropriate-sized hole at the center. The basic purpose of using a flat washer is to spread the load over the surface area of the object. Thus it reduces the pressure on the fastened object.
Features
Specification Data
ELECMAN provides full size zinc plated stainless steel plain circular flat washers.
| CAT # | Trade Size | I.D. | O.D. | Thickness | |
| Max | Min | ||||
| FW-M2 | M2 | 2.2mm | 5mm | 0.35mm | 0.25mm |
| FW-M2.5 | M2.5 | 2.7mm | 6mm | 0.55mm | 0.45mm |
| FW-M3 | M3 | 3.2mm | 7mm | 0.55mm | 0.45mm |
| FW-M4 | M4 | 4.3mm | 9mm | 0.9mm | 0.7mm |
| FW-M5 | M5 | 5.3mm | 10mm | 1.1mm | 0.9mm |
| FW-M6 | M6 | 6.4mm | 12mm | 1.8mm | 1.4mm |
| FW-M8 | M8 | 8.4mm | 16mm | 1.8mm | 1.4mm |
| FW-M10 | M10 | 10.5mm | 20mm | 2.2mm | 1.8mm |
| FW-M12 | M12 | 13.0mm | 24mm | 2.7mm | 2.3mm |
| FW-M14 | M14 | 15.0mm | 28mm | 2.7mm | 2.3mm |
| FW-M16 | M16 | 17.0mm | 30mm | 3.3mm | 2.7mm |
| FW-M18 | M18 | 19.0mm | 34mm | 3.3mm | 2.7mm |
| FW-M20 | M20 | 21.0mm | 37mm | 3.3mm | 2.7mm |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the plugs body is made of high quality brass, every parts of the plugs are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time. For internal packing, use small carton boxes or self sealing plastic bag, for external packing, use good quality corrugated carton. ELECMAN can follow any requirement of customers.
