| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Model Number: | FFW |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Corrugated Carton |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Steel/Stainless Steel | Surface Finish: | Zinc Plated, Hot-Dipped Galvanized |
|---|---|---|---|
| Type: | Fender Washer | Size: | M2 - M12 |
| Shape: | Round | Color: | Sliver |
| High Light: | M2 Strut Fasteners,M12 Strut Fasteners,Zinc m12 fender washer |
||

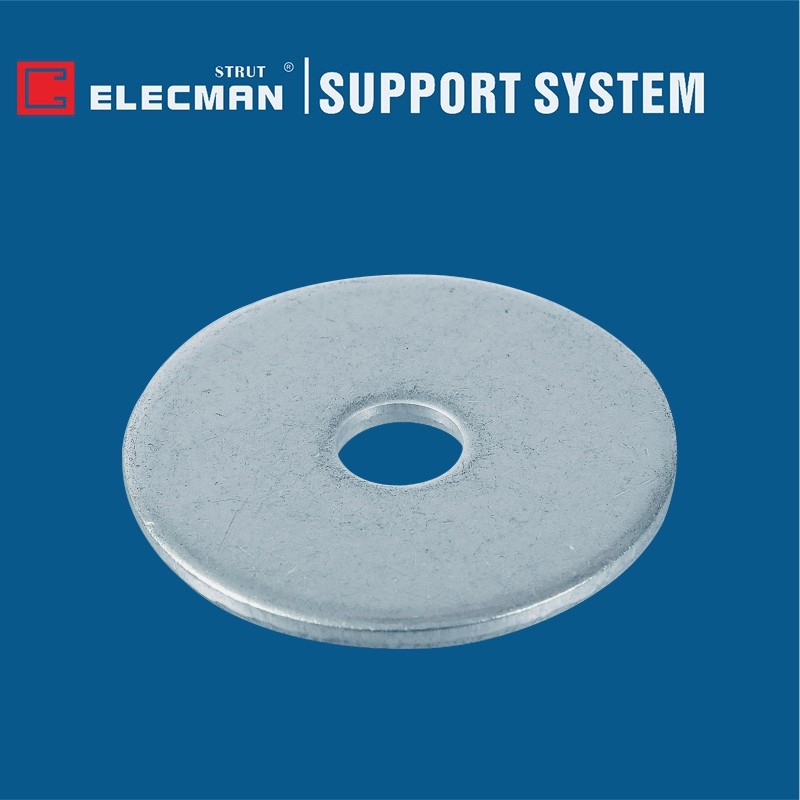

ELECMAN ® Zinc Plated Steel Round Flat Fender Washer M2 - M12
Applications
ELECMAN ® Zinc plated steel round flat fender washer is a flat washer with a larger outer diameter in proportion to its center hole, and have a wider bearing surface that helps to spread the load over the larger surface of the object. Thus it helps to lower the pressure over the object’s surface.
Features
Specification Data
ELECMAN provides full size zinc plated steel round flat fender washer.
| CAT # | Trade Size | I.D. | O.D. | Thickness |
| FFW-M2 | M2 | 2.2mm | 6mm | 0.8mm |
| FFW-M2.5 | M2.5 | 2.7mm | 8mm | 0.8mm |
| FFW-M4 | M4 | 4.3mm | 12mm | 0.8mm |
| FFW-M5 | M5 | 5.3mm | 15mm | 1.25mm |
| FFW-M6 | M6 | 6.4mm | 18mm | 1.6mm |
| FFW-M8 | M8 | 8.4mm | 24mm | 2.0mm |
| FFW-M10 | M10 | 10.5mm | 30mm | 2.5mm |
| FFW-M12 | M12 | 13.0mm | 37mm | 3.0mm |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the plugs body is made of high quality brass, every parts of the plugs are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time. For internal packing, use small carton boxes or self sealing plastic bag, for external packing, use good quality corrugated carton. ELECMAN can follow any requirement of customers.
