| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Model Number: | TR |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Corrugated Carton |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | SS304 SS316 Stainless Steel | Surface Finish: | Zinc Plated, Hot-Dipped Galvanized |
|---|---|---|---|
| Type: | All Threaded | Size: | 1/4" - 1" |
| Length: | 2.4mm~6m | Color: | Sliver |
| High Light: | SS316 stainless steel threaded rod,M10 stainless steel threaded rod,m10 threaded rod Bar |
||

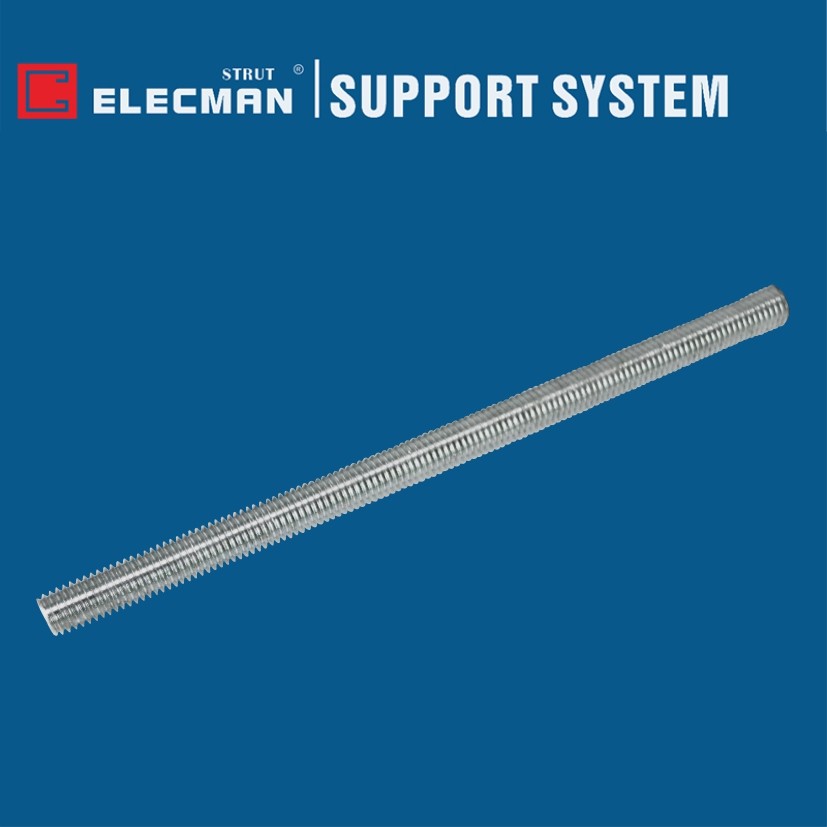

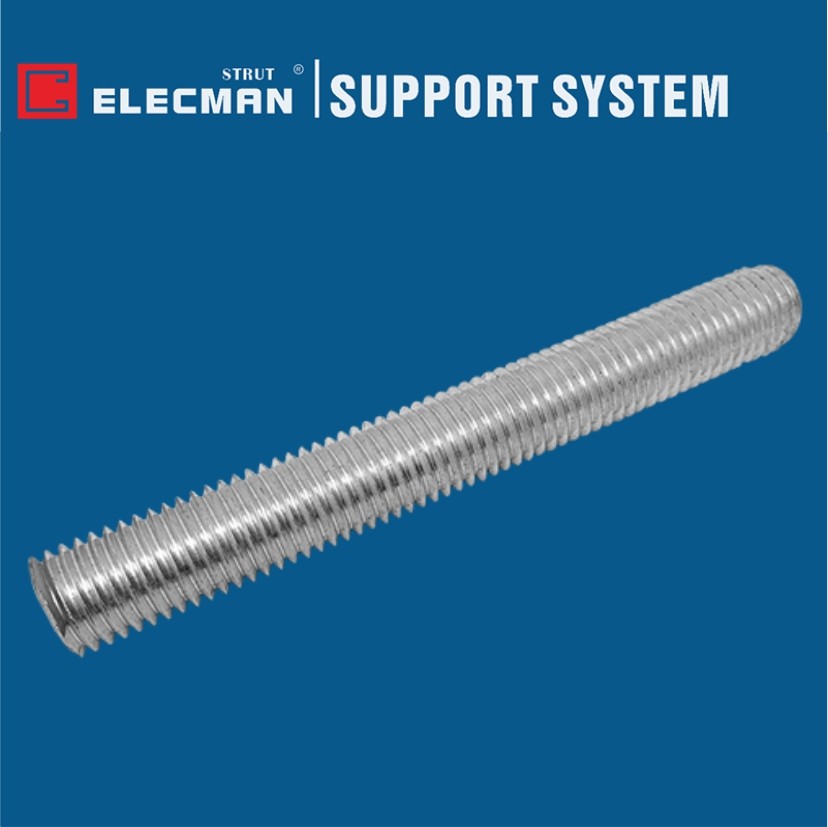

ELECMAN ® SS304 SS316 Stainless Steel Fully Threaded Rods, Threaded Bar
Applications
ELECMAN ® SS304 SS316 stainless steel fully threaded rods are fasteners with threads running their entire length for full engagement of nuts or other female-threaded components, and are are used with strut channels to support the electrical pipe system.
Features
Specification Data
ELECMAN provides full size SS304 SS316 stainless steel fully threaded rods from 1/4" to 1".
| UNC Thread | Metric Thread | Recommended Load | |||
| CAT # | Trade Size | CAT # | Trade Size | LBS. | KN |
| TR14 | 1/4" | TRM6 | M6 | 240 | 1.07 |
| TR516 | 5/16" | TRM8 | M8 | 380 | 1.69 |
| TR38 | 3/8" | TRM10 | M10 | 730 | 3.24 |
| TR12 | 1/2" | TRM12 | M12 | 1350 | 6.00 |
| TR58 | 5/8" | TRM14 | M14 | 1810 | 8.05 |
| TR34 | 3/4" | TRM16 | M16 | 2710 | 12.05 |
| TR78 | 7/8" | TRM20 | M20 | 3770 | 16.77 |
| TR1 | 1" | 4960 | 22.06 | ||
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the plugs body is made of high quality brass, every parts of the plugs are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time. For internal packing, use small carton boxes or self sealing plastic bag, for external packing, use good quality corrugated carton. ELECMAN can follow any requirement of customers.
