Combination Aluminum Conduit Bodies Set Screw Threaded LB Type 1/2" - 2"

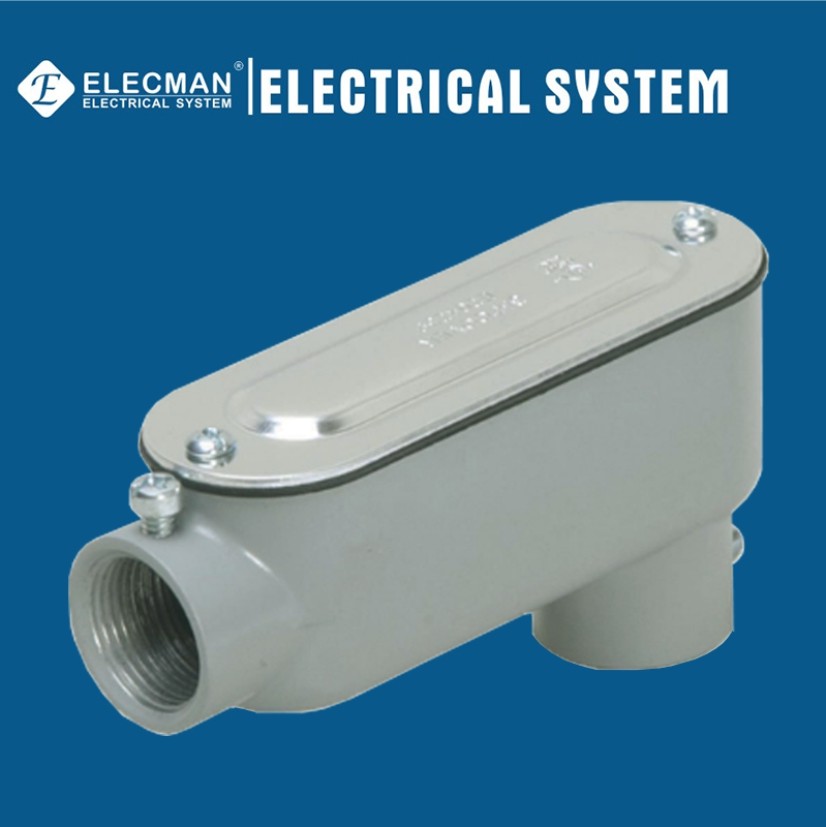

ELECMAN ® Combination Aluminum 1/2" - 2" Conduit Body Set Screw & Threaded LB Type

Applications

ELECMAN® Combination aluminum 1/2" - 2" conduit bodies set screw & threaded LB type are used with threaded IMC/Rigid conduit, or EMT, for pulling access or to split into multiple directions. Removable cover allows access for maintenance and making taps and splices to conductors.

Features

• Durable die cast aluminum construction.
• Premium powder coat finish.
• Stamped aluminum cover.
• Includes NBR synthetic rubber gasket.
• Combination head screw.

​

Certifications and Compliances

ELECMAN® Combination aluminum 1/2" - 2" conduit bodies set screw & threaded LB type are produced to the following specifications:

• UL listed
• File No.: E513113

Specification Data

ELECMAN provides full size combination aluminum conduit bodies set screw & threaded LB type.

Packing Information

Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time. For internal packing, use small carton boxes or self sealing plastic bag, for external packing, use good quality corrugated carton. ELECMAN can follow any requirement of customers.

​

More Specifications

ELECMAN provides more specification and type combination aluminum conduit bodies set screw & threaded type.

Conduit Body LB Type With Gasket And Cover(set screw & threaded type)
CAT #	Size	Dimensions			Description	Pictures
		Height/cm	Length/cm	Width/cm
STLB050	1/2"	5.90	10.95	3.40	Aluminum LB Type Set Screw & Threaded Connection With Gasket And Cover
STLB075	3/4"	6.68	12.91	3.97
STLB100	1"	7.65	15.03	4.62
STLB125	1-1/4"	9.55	19.86	6.37
STLB150	1-1/2"	9.55	19.86	6.37
STLB200	2"	12.05	25.53	8.10
Conduit Body LL Type With Gasket And Cover(set screw & threaded type)
CAT #	Size	Dimensions			Description	Pictures
		Height/cm	Length/cm	Width/cm
STLL050	1/2"	4.05	10.95	5.15	Aluminum LL Type Set Screw & Threaded Connection With Gasket And Cover
STLL075	3/4"	4.73	12.91	5.85
STLL100	1"	5.40	15.03	6.81
STLL125	1-1/4"	6.95	19.86	8.94
STLL150	1-1/2"	6.95	19.86	8.94
STLL200	2"	9.25	25.53	10.85
Conduit Body LR Type With Gasket And Cover(set screw & threaded type)
CAT #	Size	Dimensions			Description	Pictures
		Height/cm	Length/cm	Width/cm
STLR050	1/2"	4.05	10.95	5.15	Aluminum LR Type Set Screw & Threaded Connection With Gasket And Cover
STLR075	3/4"	4.73	12.91	5.85
STLR100	1"	5.40	15.03	6.81
STLR125	1-1/4"	6.95	19.86	8.94
STLR150	1-1/2"	6.95	19.86	8.94
STLR200	2"	9.25	25.53	10.85
Conduit Body C Type With Gasket And Cover(set screw & threaded type)
CAT #	Size	Dimensions			Description	Pictures
		Height/cm	Length/cm	Width/cm
STC050	1/2"	4.05	12.00	3.40	Aluminum C Type Set Screw & Threaded Connection With Gasket And Cover
STC075	3/4"	4.73	14.00	3.97
STC100	1"	5.40	16.40	4.62
STC125	1-1/4"	6.95	21.20	6.37
STC150	1-1/2"	6.95	21.20	6.37
STC200	2"	9.25	26.80	8.10
Conduit Body T Type With Gasket And Cover(set screw & threaded type)
CAT #	Size	Dimensions			Description	Pictures
		Height/cm	Length/cm	Width/cm
STT050	1/2"	4.05	12.00	5.15	Aluminum T Type Set Screw & Threaded Connection With Gasket And Cover
STT075	3/4"	4.73	14.00	5.85
STT100	1"	5.40	16.40	6.81
STT125	1-1/4"	6.95	21.20	8.94
STT150	1-1/2"	6.95	21.20	8.94
STT200	2"	9.25	26.80	10.85
