| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | TLB |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Corrugated Carton |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Aluminum | Surface Finish: | Powder Coated |
|---|---|---|---|
| Type: | LB Type | Size: | 1/2" - 2" |
| Connection: | Threaded | Color: | Gray |
| High Light: | IMC Aluminum Conduit Bodies,Threaded Aluminum Conduit Bodies,IMC rigid conduit body |
||

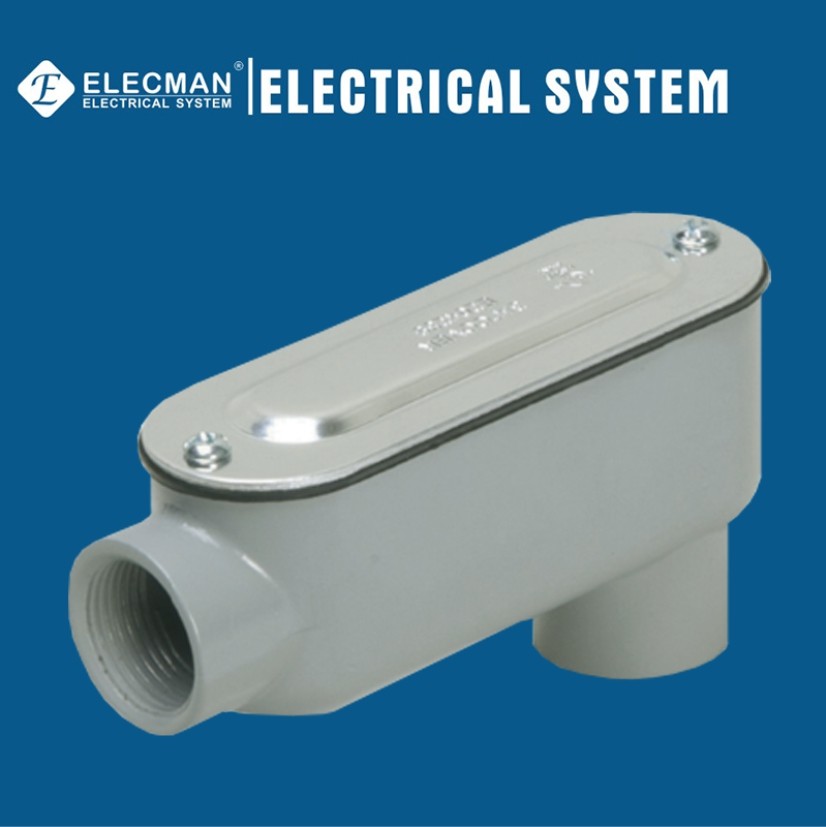

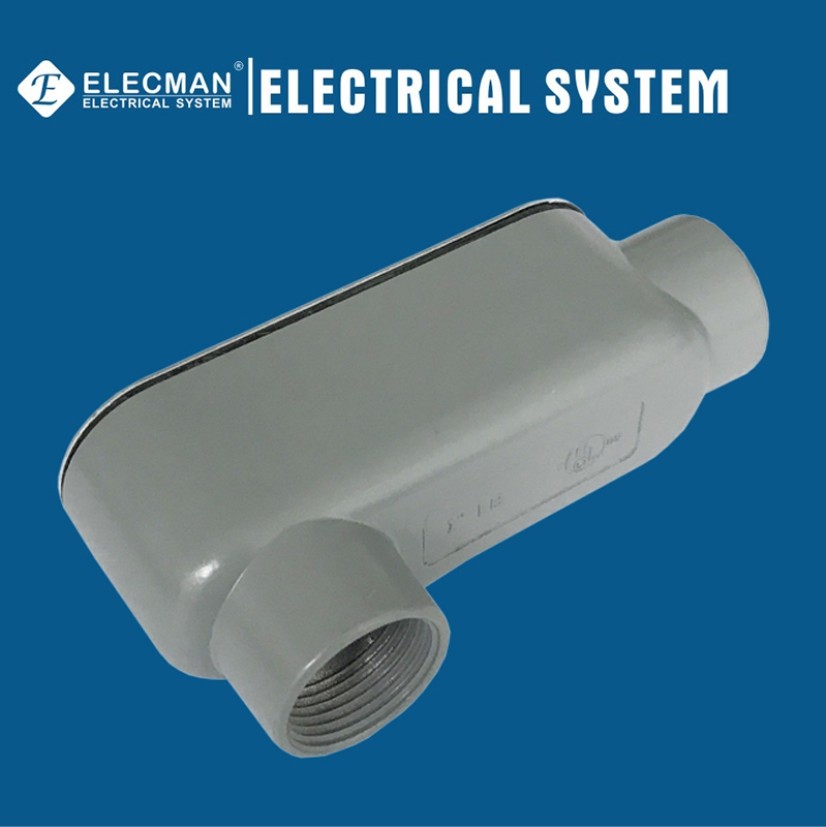

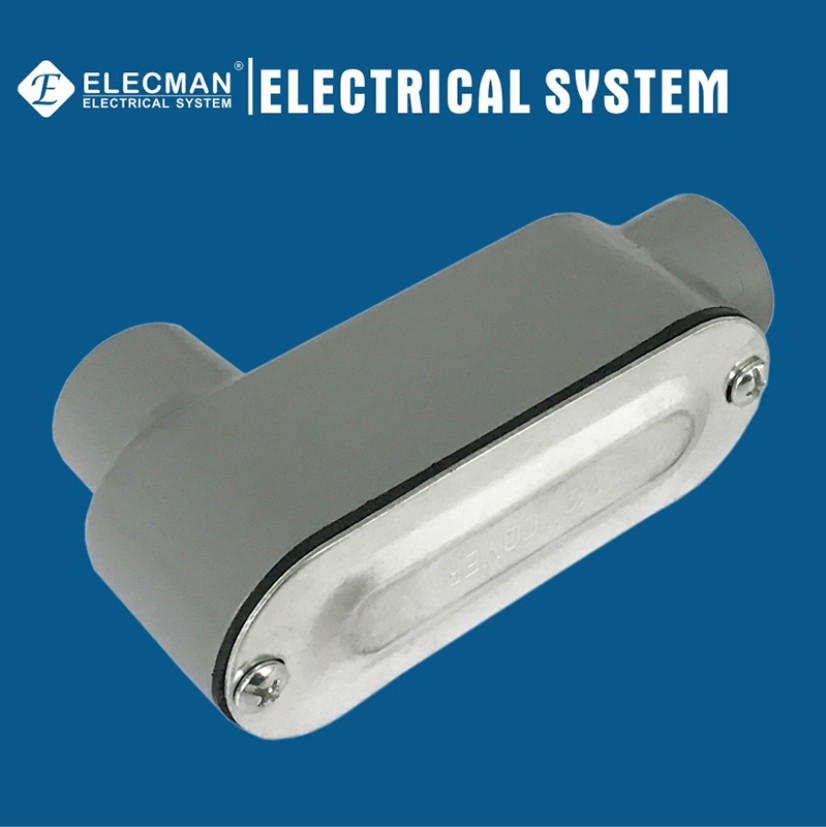

ELECMAN ® Aluminum 1/2" - 2" IMC/Rigid Conduit Body Threaded LB Type
Applications
ELECMAN® Aluminum 1/2" - 2" IMC/Rigid conduit bodies threaded LB type are used with IMC/Rigid conduits, for pulling access or to split into multiple directions. Removable cover allows access for maintenance and making taps and splices to conductors.
Features
Certifications and Compliances
ELECMAN® Aluminum 1/2" - 2" IMC/Rigid conduit bodies threaded LB type are produced to the following specifications:
Specification Data
ELECMAN provides full size aluminum IMC/Rigid conduit bodies threaded LB type.
| CAT # | Size | Dimensions | MASTER PACK | WEIGHT/C | VOLUME/C | ||
| Height/cm | Length/cm | Width/cm | PCS | KGS | CBM | ||
| TLB050 | 1/2" | 5.90 | 10.95 | 3.40 | 50 | 5.30 | 0.012 |
| TLB075 | 3/4" | 6.68 | 12.91 | 3.97 | 50 | 9.00 | 0.018 |
| TLB100 | 1" | 7.65 | 15.03 | 4.62 | 50 | 10.80 | 0.027 |
| TLB125 | 1-1/4" | 9.55 | 19.86 | 6.37 | 20 | 9.50 | 0.026 |
| TLB150 | 1-1/2" | 9.55 | 19.86 | 6.37 | 20 | 9.50 | 0.026 |
| TLB200 | 2" | 12.05 | 25.53 | 8.10 | 10 | 9.00 | 0.027 |
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time. For internal packing, use small carton boxes or self sealing plastic bag, for external packing, use good quality corrugated carton. ELECMAN can follow any requirement of customers.
More Specifications
ELECMAN provides more specification and type aluminum IMC/Rigid conduit bodies threaded type.
| Conduit Body LB Type With Gasket And Cover(threaded type) | ||||||
| CAT # | Size | Dimensions | Description | Pictures | ||
| Height/cm | Length/cm | Width/cm | ||||
| TLB050 | 1/2" | 5.90 | 10.95 | 3.40 | Aluminum LB Type Threaded Connection With Gasket And Cover |
|
| TLB075 | 3/4" | 6.68 | 12.91 | 3.97 | ||
| TLB100 | 1" | 7.65 | 15.03 | 4.62 | ||
| TLB125 | 1-1/4" | 9.55 | 19.86 | 6.37 | ||
| TLB150 | 1-1/2" | 9.55 | 19.86 | 6.37 | ||
| TLB200 | 2" | 12.05 | 25.53 | 8.10 | ||
| Conduit Body LL Type With Gasket And Cover(threaded type) | ||||||
| CAT # | Size | Dimensions | Description | Pictures | ||
| Height/cm | Length/cm | Width/cm | ||||
| TLL050 | 1/2" | 4.05 | 10.95 | 5.15 | Aluminum LL Type Threaded Connection With Gasket And Cover |
|
| TLL075 | 3/4" | 4.73 | 12.91 | 5.85 | ||
| TLL100 | 1" | 5.40 | 15.03 | 6.81 | ||
| TLL125 | 1-1/4" | 6.95 | 19.86 | 8.94 | ||
| TLL150 | 1-1/2" | 6.95 | 19.86 | 8.94 | ||
| TLL200 | 2" | 9.25 | 25.53 | 10.85 | ||
| Conduit Body LR Type With Gasket And Cover(threaded type) | ||||||
| CAT # | Size | Dimensions | Description | Pictures | ||
| Height/cm | Length/cm | Width/cm | ||||
| TLR050 | 1/2" | 4.05 | 10.95 | 5.15 | Aluminum LR Type Threaded Connection With Gasket And Cover |
|
| TLR075 | 3/4" | 4.73 | 12.91 | 5.85 | ||
| TLR100 | 1" | 5.40 | 15.03 | 6.81 | ||
| TLR125 | 1-1/4" | 6.95 | 19.86 | 8.94 | ||
| TLR150 | 1-1/2" | 6.95 | 19.86 | 8.94 | ||
| TLR200 | 2" | 9.25 | 25.53 | 10.85 | ||
| Conduit Body C Type With Gasket And Cover(threaded type) | ||||||
| CAT # | Size | Dimensions | Description | Pictures | ||
| Height/cm | Length/cm | Width/cm | ||||
| TC050 | 1/2" | 4.05 | 12.00 | 3.40 | Aluminum C Type Threaded Connection With Gasket And Cover |
|
| TC075 | 3/4" | 4.73 | 14.00 | 3.97 | ||
| TC100 | 1" | 5.40 | 16.40 | 4.62 | ||
| TC125 | 1-1/4" | 6.95 | 21.20 | 6.37 | ||
| TC150 | 1-1/2" | 6.95 | 21.20 | 6.37 | ||
| TC200 | 2" | 9.25 | 26.80 | 8.10 | ||
| Conduit Body T Type With Gasket And Cover(threaded type) | ||||||
| CAT # | Size | Dimensions | Description | Pictures | ||
| Height/cm | Length/cm | Width/cm | ||||
| TT050 | 1/2" | 4.05 | 12.00 | 5.15 | Aluminum T Type Threaded Connection With Gasket And Cover |
|
| TT075 | 3/4" | 4.73 | 14.00 | 5.85 | ||
| TT100 | 1" | 5.40 | 16.40 | 6.81 | ||
| TT125 | 1-1/4" | 6.95 | 21.20 | 8.94 | ||
| TT150 | 1-1/2" | 6.95 | 21.20 | 8.94 | ||
| TT200 | 2" | 9.25 | 26.80 | 10.85 | ||
