2" Threaded T Type Aluminum Conduit Bodies IMC Rigid Conduit Bodies

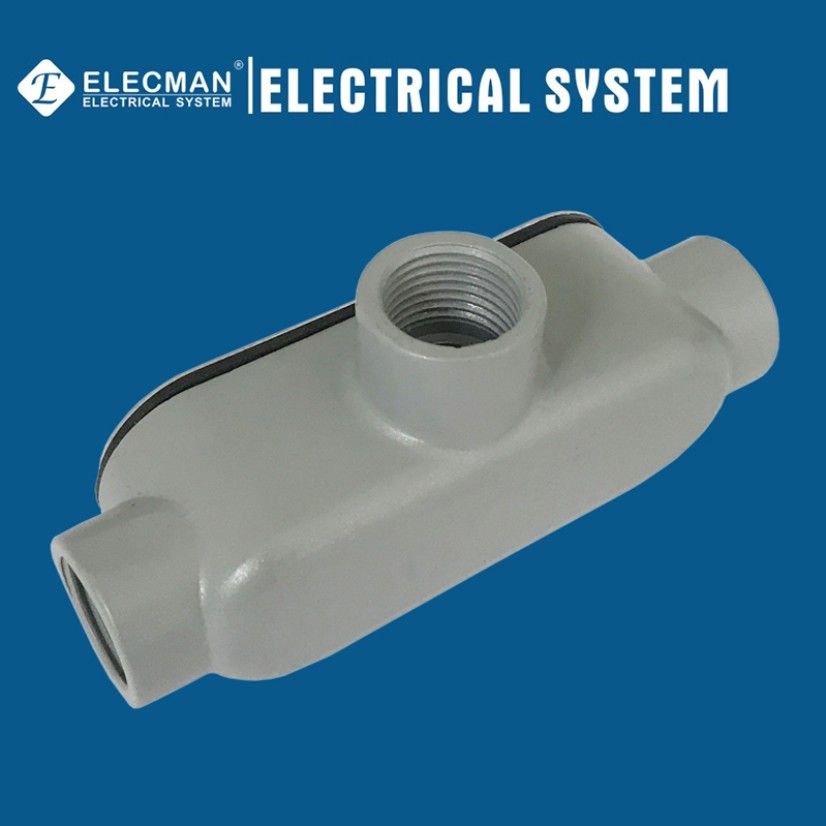

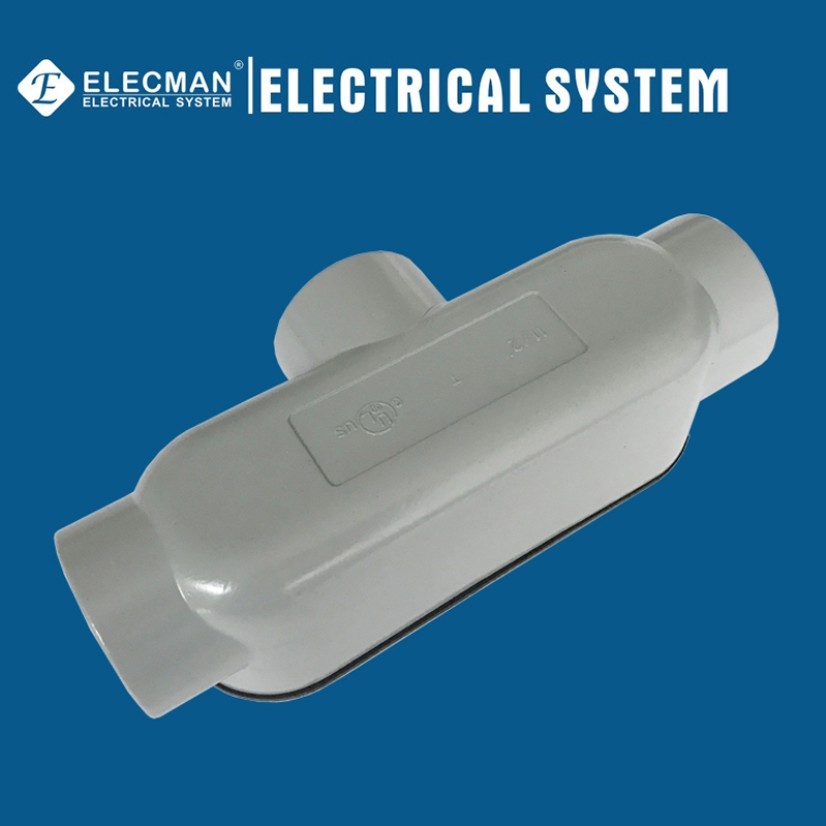

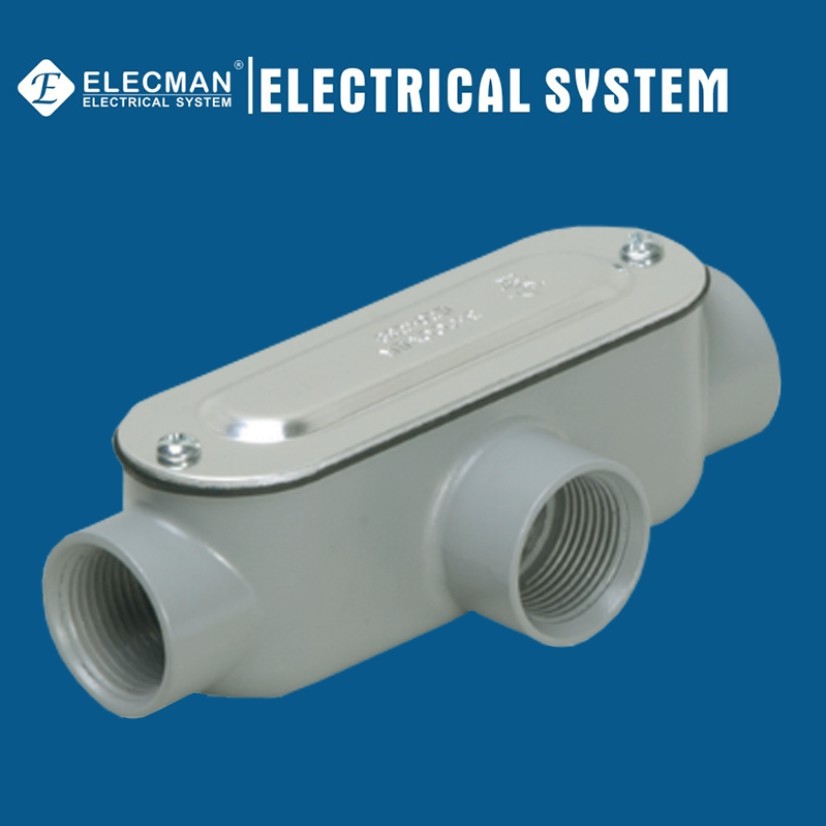

ELECMAN ® Aluminum 1/2" - 2" IMC/Rigid Conduit Body Threaded T Type

Applications

ELECMAN® Aluminum 1/2" - 2" IMC/Rigid conduit bodies threaded T type has roomy interior allows for maximum wiring space, smooth, rounded integral bushings in hubs offers protection for conductor insulation. Excellent ground continuity and corrosion resistance; lightweight aluminum construction; flat back design for easy, flat mounting against surface. UL listed; available in sizes from 1/2” to 2”.

Features

• Durable die cast aluminum construction.
• Premium powder coat finish.
• Stamped aluminum cover.
• Includes NBR synthetic rubber gasket.
• Combination head screw.

​

Certifications and Compliances

ELECMAN® Aluminum 1/2" - 2" IMC/Rigid conduit bodies threaded T type are produced to the following specifications:

• UL listed
• File No.: E513113

Specification Data

ELECMAN provides full size aluminum IMC/Rigid conduit bodies threaded T type.

Packing Information

Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time. For internal packing, use small carton boxes or self sealing plastic bag, for external packing, use good quality corrugated carton. ELECMAN can follow any requirement of customers.

​

More Specifications

ELECMAN provides more specification and type aluminum IMC/Rigid conduit bodies threaded type.

Conduit Body LB Type With Gasket And Cover(threaded type)
CAT #	Size	Dimensions			Description	Pictures
		Height/cm	Length/cm	Width/cm
TLB050	1/2"	5.90	10.95	3.40	Aluminum LB Type Threaded Connection With Gasket And Cover
TLB075	3/4"	6.68	12.91	3.97
TLB100	1"	7.65	15.03	4.62
TLB125	1-1/4"	9.55	19.86	6.37
TLB150	1-1/2"	9.55	19.86	6.37
TLB200	2"	12.05	25.53	8.10
Conduit Body LL Type With Gasket And Cover(threaded type)
CAT #	Size	Dimensions			Description	Pictures
		Height/cm	Length/cm	Width/cm
TLL050	1/2"	4.05	10.95	5.15	Aluminum LL Type Threaded Connection With Gasket And Cover
TLL075	3/4"	4.73	12.91	5.85
TLL100	1"	5.40	15.03	6.81
TLL125	1-1/4"	6.95	19.86	8.94
TLL150	1-1/2"	6.95	19.86	8.94
TLL200	2"	9.25	25.53	10.85
Conduit Body LR Type With Gasket And Cover(threaded type)
CAT #	Size	Dimensions			Description	Pictures
		Height/cm	Length/cm	Width/cm
TLR050	1/2"	4.05	10.95	5.15	Aluminum LR Type Threaded Connection With Gasket And Cover
TLR075	3/4"	4.73	12.91	5.85
TLR100	1"	5.40	15.03	6.81
TLR125	1-1/4"	6.95	19.86	8.94
TLR150	1-1/2"	6.95	19.86	8.94
TLR200	2"	9.25	25.53	10.85
Conduit Body C Type With Gasket And Cover(threaded type)
CAT #	Size	Dimensions			Description	Pictures
		Height/cm	Length/cm	Width/cm
TC050	1/2"	4.05	12.00	3.40	Aluminum C Type Threaded Connection With Gasket And Cover
TC075	3/4"	4.73	14.00	3.97
TC100	1"	5.40	16.40	4.62
TC125	1-1/4"	6.95	21.20	6.37
TC150	1-1/2"	6.95	21.20	6.37
TC200	2"	9.25	26.80	8.10
Conduit Body T Type With Gasket And Cover(threaded type)
CAT #	Size	Dimensions			Description	Pictures
		Height/cm	Length/cm	Width/cm
TT050	1/2"	4.05	12.00	5.15	Aluminum T Type Threaded Connection With Gasket And Cover
TT075	3/4"	4.73	14.00	5.85
TT100	1"	5.40	16.40	6.81
TT125	1-1/4"	6.95	21.20	8.94
TT150	1-1/2"	6.95	21.20	8.94
TT200	2"	9.25	26.80	10.85
