| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | TLR |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Corrugated Carton |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Aluminum | Surface Finish: | Powder Coated |
|---|---|---|---|
| Type: | LR Type | Size: | 1/2" - 2" |
| Connection: | Threaded | Color: | Gray |
| High Light: | 2 Inch Aluminum Conduit Bodies,IMC Aluminum Conduit Bodies,IMC lr conduit |
||

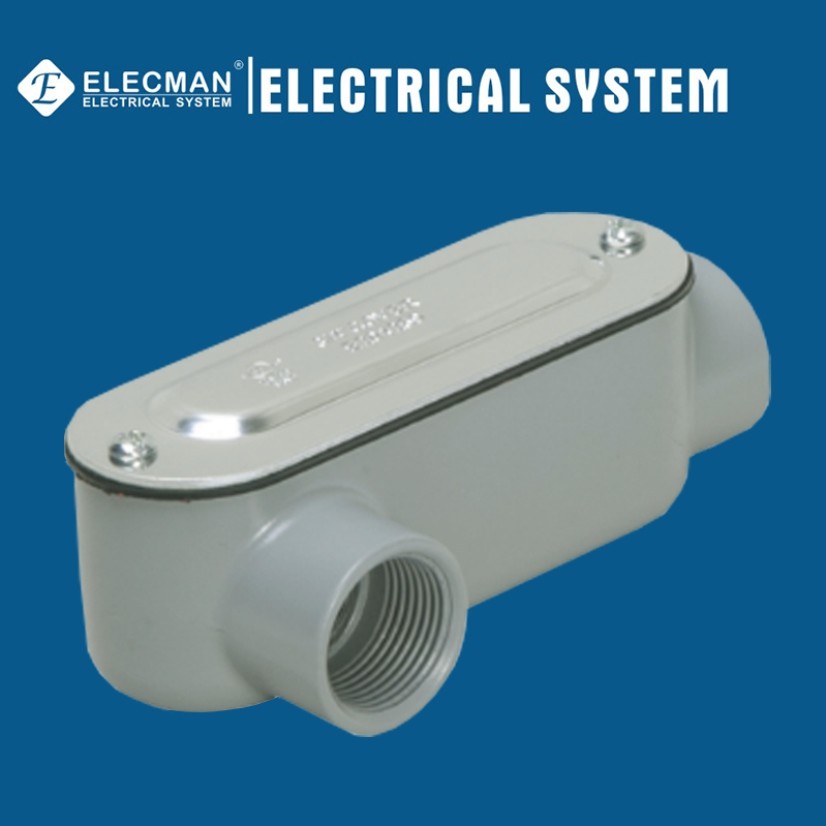

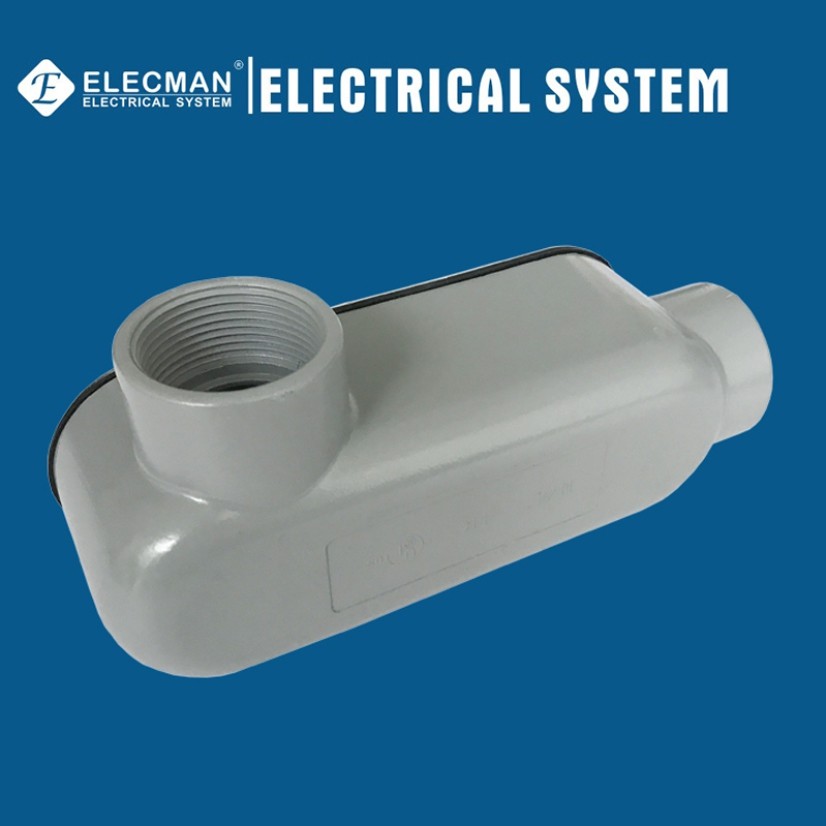

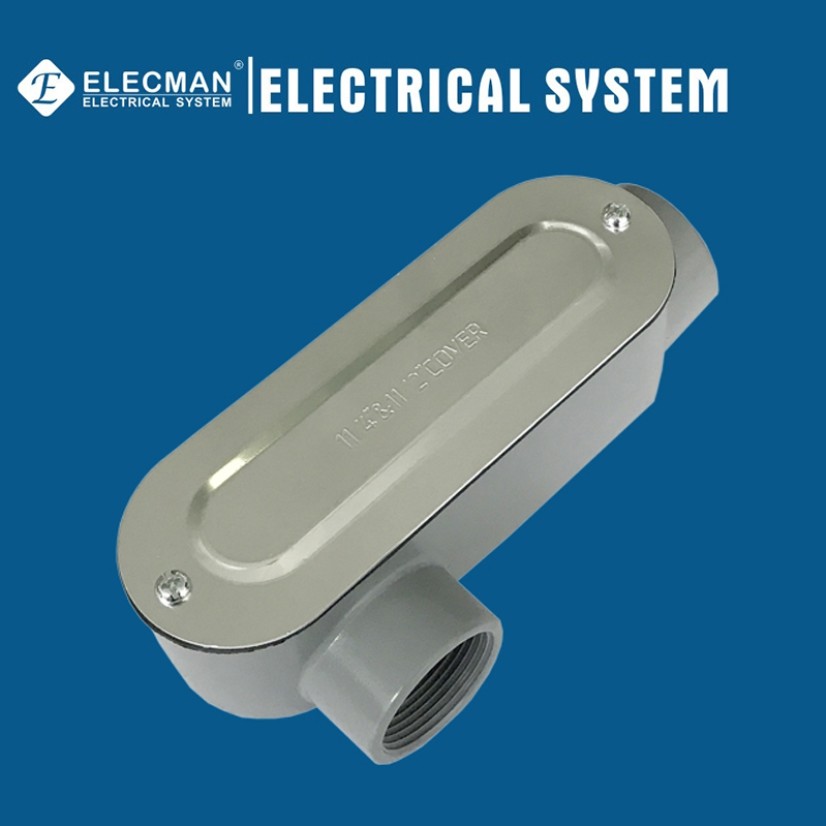

ELECMAN ® Aluminum 1/2" - 2" IMC/Rigid Conduit Body Threaded LR Type
Applications
ELECMAN® Aluminum 1/2" - 2" IMC/Rigid conduit bodies threaded LR type can access the inside of rigid or IMC conduits to pull wires, splice or perform maintenance. This aluminum conduit body comes with a cover and gasket.
Features
Certifications and Compliances
ELECMAN® Aluminum 1/2" - 2" IMC/Rigid conduit bodies threaded LR type are produced to the following specifications:
Specification Data
ELECMAN provides full size aluminum IMC/Rigid conduit bodies threaded LR type.
| CAT # | Size | Dimensions | MASTER PACK | WEIGHT/C | VOLUME/C | ||
| Height/cm | Length/cm | Width/cm | PCS | KGS | CBM | ||
| TLR050 | 1/2" | 4.05 | 10.95 | 5.15 | 50 | 5.30 | 0.012 |
| TLR075 | 3/4" | 4.73 | 12.91 | 5.85 | 50 | 8.50 | 0.018 |
| TLR100 | 1" | 5.40 | 15.03 | 6.81 | 50 | 11.80 | 0.028 |
| TLR125 | 1-1/4" | 6.95 | 19.86 | 8.94 | 20 | 9.50 | 0.024 |
| TLR150 | 1-1/2" | 6.95 | 19.86 | 8.94 | 20 | 9.50 | 0.024 |
| TLR200 | 2" | 9.25 | 25.53 | 10.85 | 10 | 9.00 | 0.026 |
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time. For internal packing, use small carton boxes or self sealing plastic bag, for external packing, use good quality corrugated carton. ELECMAN can follow any requirement of customers.
More Specifications
ELECMAN provides more specification and type aluminum IMC/Rigid conduit bodies threaded type.
| Conduit Body LB Type With Gasket And Cover(threaded type) | ||||||
| CAT # | Size | Dimensions | Description | Pictures | ||
| Height/cm | Length/cm | Width/cm | ||||
| TLB050 | 1/2" | 5.90 | 10.95 | 3.40 | Aluminum LB Type Threaded Connection With Gasket And Cover |
|
| TLB075 | 3/4" | 6.68 | 12.91 | 3.97 | ||
| TLB100 | 1" | 7.65 | 15.03 | 4.62 | ||
| TLB125 | 1-1/4" | 9.55 | 19.86 | 6.37 | ||
| TLB150 | 1-1/2" | 9.55 | 19.86 | 6.37 | ||
| TLB200 | 2" | 12.05 | 25.53 | 8.10 | ||
| Conduit Body LL Type With Gasket And Cover(threaded type) | ||||||
| CAT # | Size | Dimensions | Description | Pictures | ||
| Height/cm | Length/cm | Width/cm | ||||
| TLL050 | 1/2" | 4.05 | 10.95 | 5.15 | Aluminum LL Type Threaded Connection With Gasket And Cover |
|
| TLL075 | 3/4" | 4.73 | 12.91 | 5.85 | ||
| TLL100 | 1" | 5.40 | 15.03 | 6.81 | ||
| TLL125 | 1-1/4" | 6.95 | 19.86 | 8.94 | ||
| TLL150 | 1-1/2" | 6.95 | 19.86 | 8.94 | ||
| TLL200 | 2" | 9.25 | 25.53 | 10.85 | ||
| Conduit Body LR Type With Gasket And Cover(threaded type) | ||||||
| CAT # | Size | Dimensions | Description | Pictures | ||
| Height/cm | Length/cm | Width/cm | ||||
| TLR050 | 1/2" | 4.05 | 10.95 | 5.15 | Aluminum LR Type Threaded Connection With Gasket And Cover |
|
| TLR075 | 3/4" | 4.73 | 12.91 | 5.85 | ||
| TLR100 | 1" | 5.40 | 15.03 | 6.81 | ||
| TLR125 | 1-1/4" | 6.95 | 19.86 | 8.94 | ||
| TLR150 | 1-1/2" | 6.95 | 19.86 | 8.94 | ||
| TLR200 | 2" | 9.25 | 25.53 | 10.85 | ||
| Conduit Body C Type With Gasket And Cover(threaded type) | ||||||
| CAT # | Size | Dimensions | Description | Pictures | ||
| Height/cm | Length/cm | Width/cm | ||||
| TC050 | 1/2" | 4.05 | 12.00 | 3.40 | Aluminum C Type Threaded Connection With Gasket And Cover |
|
| TC075 | 3/4" | 4.73 | 14.00 | 3.97 | ||
| TC100 | 1" | 5.40 | 16.40 | 4.62 | ||
| TC125 | 1-1/4" | 6.95 | 21.20 | 6.37 | ||
| TC150 | 1-1/2" | 6.95 | 21.20 | 6.37 | ||
| TC200 | 2" | 9.25 | 26.80 | 8.10 | ||
| Conduit Body T Type With Gasket And Cover(threaded type) | ||||||
| CAT # | Size | Dimensions | Description | Pictures | ||
| Height/cm | Length/cm | Width/cm | ||||
| TT050 | 1/2" | 4.05 | 12.00 | 5.15 | Aluminum T Type Threaded Connection With Gasket And Cover |
|
| TT075 | 3/4" | 4.73 | 14.00 | 5.85 | ||
| TT100 | 1" | 5.40 | 16.40 | 6.81 | ||
| TT125 | 1-1/4" | 6.95 | 21.20 | 8.94 | ||
| TT150 | 1-1/2" | 6.95 | 21.20 | 8.94 | ||
| TT200 | 2" | 9.25 | 26.80 | 10.85 | ||
