Aluminum EMT 2 Inch Conduit Body Set Screw T Type

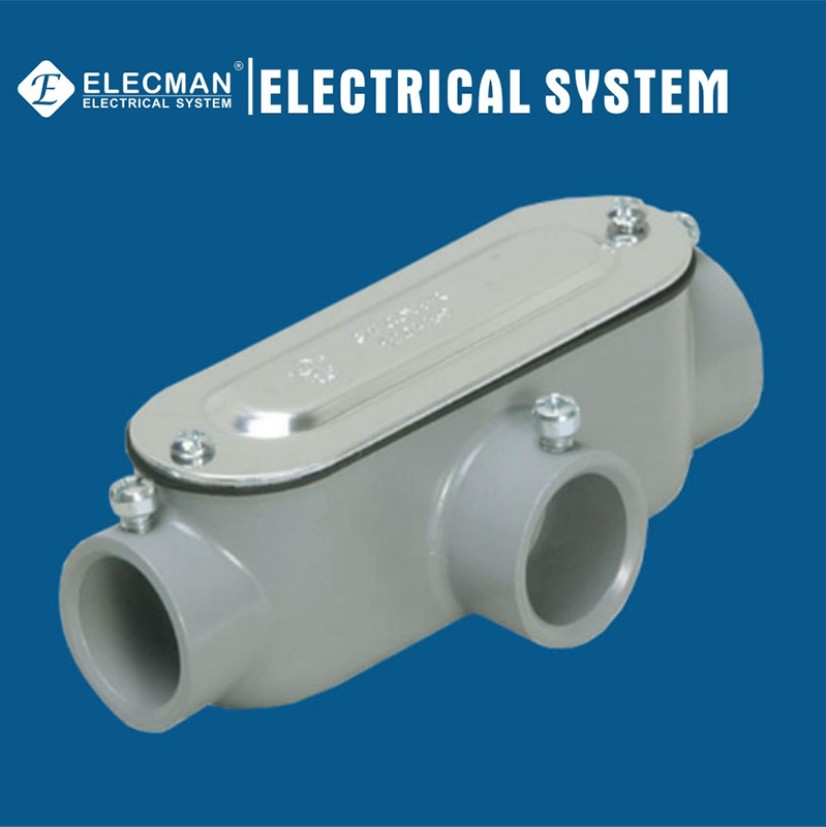

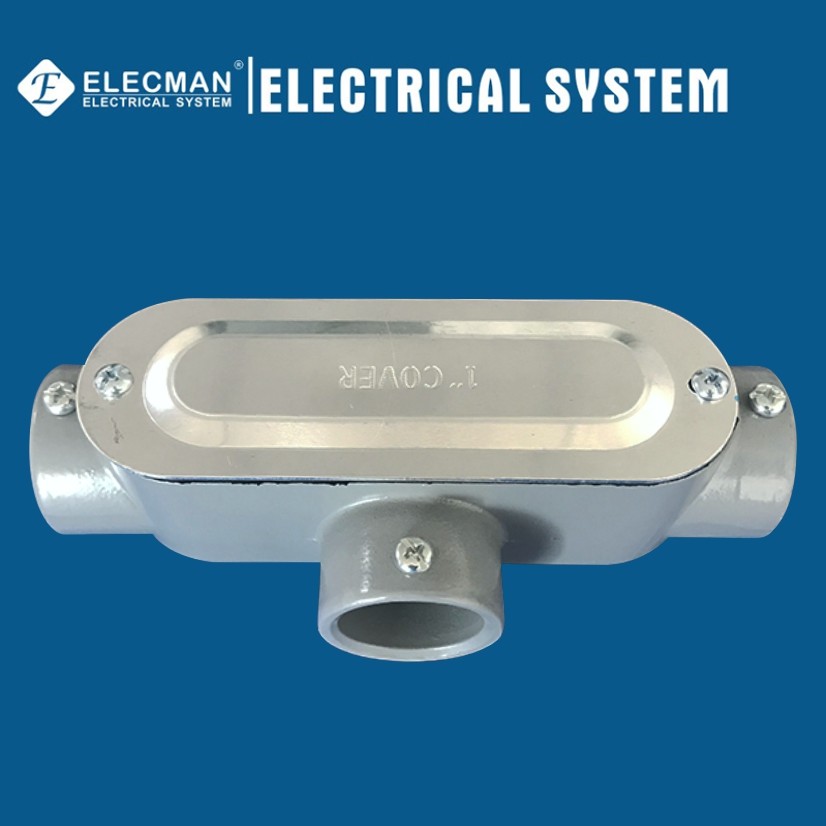

ELECMAN ® Aluminum 1/2" - 2" EMT Conduit Body Set Screw T Type

Applications

ELECMAN® Aluminum 1/2" - 2" EMT conduit bodies set screw T type are used for changing EMT conduits direction and offer a removable cover making general maintenance and wire pulling convenient. The EMT conduit body constructed from high-grade aluminum provides excellent ground continuity and corrosion resistance. The outlet conduit body is perfect for outdoor installation.

Features

• Durable die cast aluminum construction.
• Premium powder coat finish.
• Stamped aluminum cover.
• Includes NBR synthetic rubber gasket.
• Combination head screw.

​

Certifications and Compliances

ELECMAN® Aluminum 1/2" - 2" EMT conduit bodies set screw T type are produced to the following specifications:

• UL listed
• File No.: E513113

Specification Data

ELECMAN provides full size aluminum EMT conduit bodies set screw T type.

Packing Information

Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time. For internal packing, use small carton boxes or self sealing plastic bag, for external packing, use good quality corrugated carton. ELECMAN can follow any requirement of customers.

​

More Specifications

ELECMAN provides more specification and type aluminum EMT conduit bodies set screw type.

Conduit Body LB Type With Gasket And Cover(set screw type)
CAT #	Size	Dimensions			Description	Pictures
		Height/cm	Length/cm	Width/cm
SLB050	1/2"	5.90	10.95	3.40	Aluminum LB Type Set Screw Connection With Gasket And Cover
SLB075	3/4"	6.68	12.91	3.97
SLB100	1"	7.65	15.03	4.62
SLB125	1-1/4"	9.55	19.86	6.37
SLB150	1-1/2"	9.55	19.86	6.37
SLB200	2"	12.05	25.53	8.10
Conduit Body LL Type With Gasket And Cover(set screw type)
CAT #	Size	Dimensions			Description	Pictures
		Height/cm	Length/cm	Width/cm
SLL050	1/2"	4.05	10.95	5.15	Aluminum LL Type Set Screw Connection With Gasket And Cover
SLL075	3/4"	4.73	12.91	5.85
SLL100	1"	5.40	15.03	6.81
SLL125	1-1/4"	6.95	19.86	8.94
SLL150	1-1/2"	6.95	19.86	8.94
SLL200	2"	9.25	25.53	10.85
Conduit Body LR Type With Gasket And Cover(set screw type)
CAT #	Size	Dimensions			Description	Pictures
		Height/cm	Length/cm	Width/cm
SLR050	1/2"	4.05	10.95	5.15	Aluminum LR Type Set Screw Connection With Gasket And Cover
SLR075	3/4"	4.73	12.91	5.85
SLR100	1"	5.40	15.03	6.81
SLR125	1-1/4"	6.95	19.86	8.94
SLR150	1-1/2"	6.95	19.86	8.94
SLR200	2"	9.25	25.53	10.85
Conduit Body C Type With Gasket And Cover(set screw type)
CAT #	Size	Dimensions			Description	Pictures
		Height/cm	Length/cm	Width/cm
SC050	1/2"	4.05	12.00	3.40	Aluminum C Type Set Screw Connection With Gasket And Cover
SC075	3/4"	4.73	14.00	3.97
SC100	1"	5.40	16.40	4.62
SC125	1-1/4"	6.95	21.20	6.37
SC150	1-1/2"	6.95	21.20	6.37
SC200	2"	9.25	26.80	8.10
Conduit Body T Type With Gasket And Cover(set screw type)
CAT #	Size	Dimensions			Description	Pictures
		Height/cm	Length/cm	Width/cm
ST050	1/2"	4.05	12.00	5.15	Aluminum T Type Set Screw Connection With Gasket And Cover
ST075	3/4"	4.73	14.00	5.85
ST100	1"	5.40	16.40	6.81
ST125	1-1/4"	6.95	21.20	8.94
ST150	1-1/2"	6.95	21.20	8.94
ST200	2"	9.25	26.80	10.85
