EMT Set Screw LL Type Aluminum Conduit Bodies 1/2" - 2"

ELECMAN ® Aluminum 1/2" - 2" EMT Conduit Body Set Screw LL Type

Applications

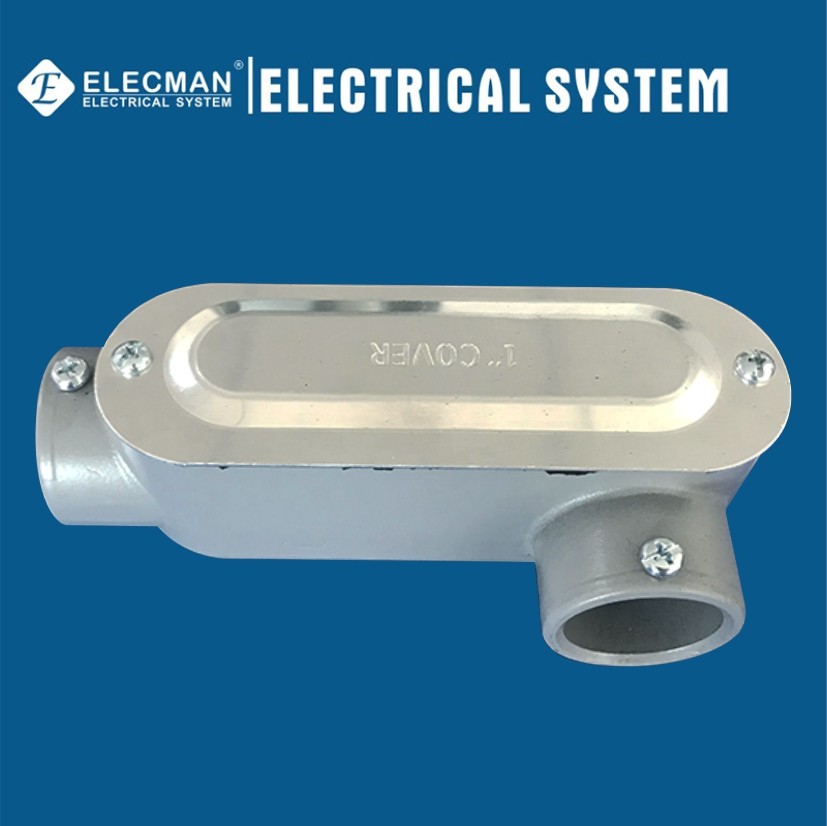

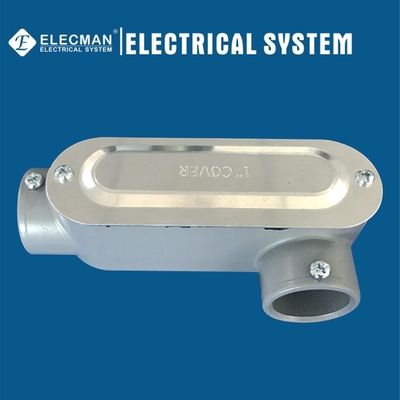

ELECMAN® Aluminum 1/2" - 2" EMT conduit bodies set screw LL type with cover and gasket, are manufactured from corrosion resistant aluminum. LL type conduit bodies have a hub on one end and one on the left side, provide easy access for splicing and can correct and change direction of conduit runs. Domed cover allows for additional wiring space.

Features

• Durable die cast aluminum construction.
• Premium powder coat finish.
• Stamped aluminum cover.
• Includes NBR synthetic rubber gasket.
• Combination head screw.

​

Certifications and Compliances

ELECMAN® Aluminum 1/2" - 2" EMT conduit bodies set screw LL type are produced to the following specifications:

• UL listed
• File No.: E513113

Specification Data

ELECMAN provides full size aluminum EMT conduit bodies set screw LL type.

Packing Information

Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time. For internal packing, use small carton boxes or self sealing plastic bag, for external packing, use good quality corrugated carton. ELECMAN can follow any requirement of customers.

​

More Specifications

ELECMAN provides more specification and type aluminum EMT conduit bodies set screw type.

Conduit Body LB Type With Gasket And Cover(set screw type)
CAT #	Size	Dimensions			Description	Pictures
		Height/cm	Length/cm	Width/cm
SLB050	1/2"	5.90	10.95	3.40	Aluminum LB Type Set Screw Connection With Gasket And Cover
SLB075	3/4"	6.68	12.91	3.97
SLB100	1"	7.65	15.03	4.62
SLB125	1-1/4"	9.55	19.86	6.37
SLB150	1-1/2"	9.55	19.86	6.37
SLB200	2"	12.05	25.53	8.10
Conduit Body LL Type With Gasket And Cover(set screw type)
CAT #	Size	Dimensions			Description	Pictures
		Height/cm	Length/cm	Width/cm
SLL050	1/2"	4.05	10.95	5.15	Aluminum LL Type Set Screw Connection With Gasket And Cover
SLL075	3/4"	4.73	12.91	5.85
SLL100	1"	5.40	15.03	6.81
SLL125	1-1/4"	6.95	19.86	8.94
SLL150	1-1/2"	6.95	19.86	8.94
SLL200	2"	9.25	25.53	10.85
Conduit Body LR Type With Gasket And Cover(set screw type)
CAT #	Size	Dimensions			Description	Pictures
		Height/cm	Length/cm	Width/cm
SLR050	1/2"	4.05	10.95	5.15	Aluminum LR Type Set Screw Connection With Gasket And Cover
SLR075	3/4"	4.73	12.91	5.85
SLR100	1"	5.40	15.03	6.81
SLR125	1-1/4"	6.95	19.86	8.94
SLR150	1-1/2"	6.95	19.86	8.94
SLR200	2"	9.25	25.53	10.85
Conduit Body C Type With Gasket And Cover(set screw type)
CAT #	Size	Dimensions			Description	Pictures
		Height/cm	Length/cm	Width/cm
SC050	1/2"	4.05	12.00	3.40	Aluminum C Type Set Screw Connection With Gasket And Cover
SC075	3/4"	4.73	14.00	3.97
SC100	1"	5.40	16.40	4.62
SC125	1-1/4"	6.95	21.20	6.37
SC150	1-1/2"	6.95	21.20	6.37
SC200	2"	9.25	26.80	8.10
Conduit Body T Type With Gasket And Cover(set screw type)
CAT #	Size	Dimensions			Description	Pictures
		Height/cm	Length/cm	Width/cm
ST050	1/2"	4.05	12.00	5.15	Aluminum T Type Set Screw Connection With Gasket And Cover
ST075	3/4"	4.73	14.00	5.85
ST100	1"	5.40	16.40	6.81
ST125	1-1/4"	6.95	21.20	8.94
ST150	1-1/2"	6.95	21.20	8.94
ST200	2"	9.25	26.80	10.85
