| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | SQN |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Carton Boxes |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Zinc | Surface Finish: | Natural |
|---|---|---|---|
| Type: | 90 Degree Type | Size: | 1/2" To 4" |
| Connection: | Male | Structure: | Universal |
| High Light: | 90 Degree Flex To Box Connector,Zinc 90 Degree Squeeze Connector,1 Inch Flex Conduit Connector |
||

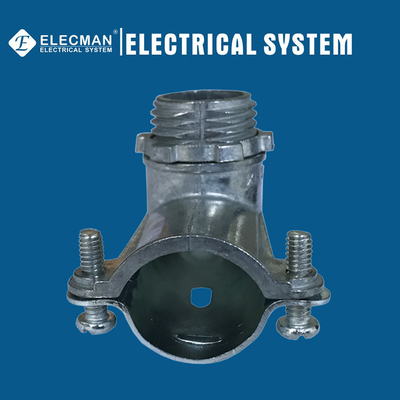

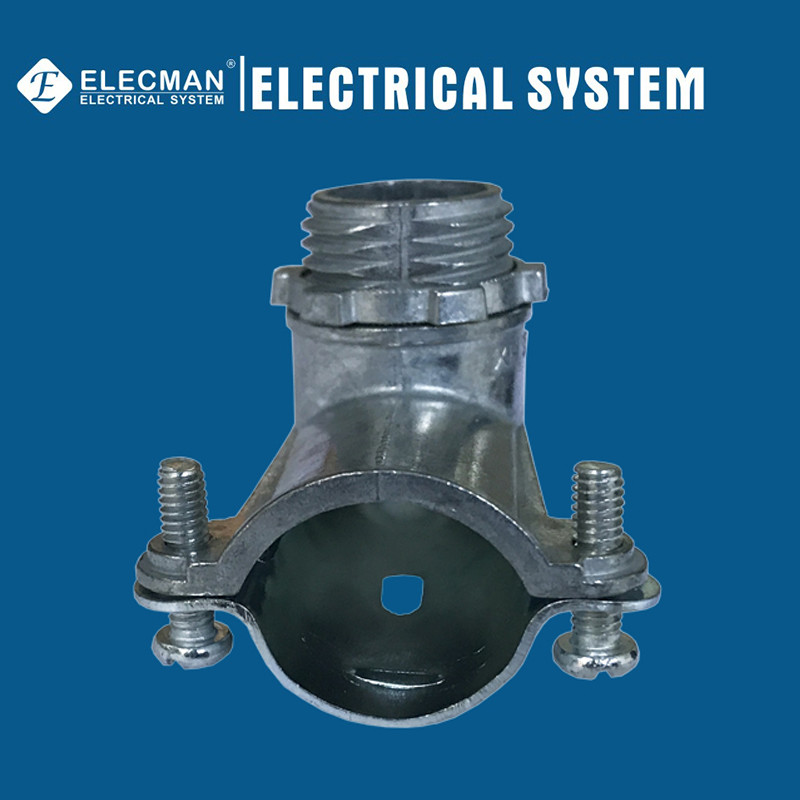

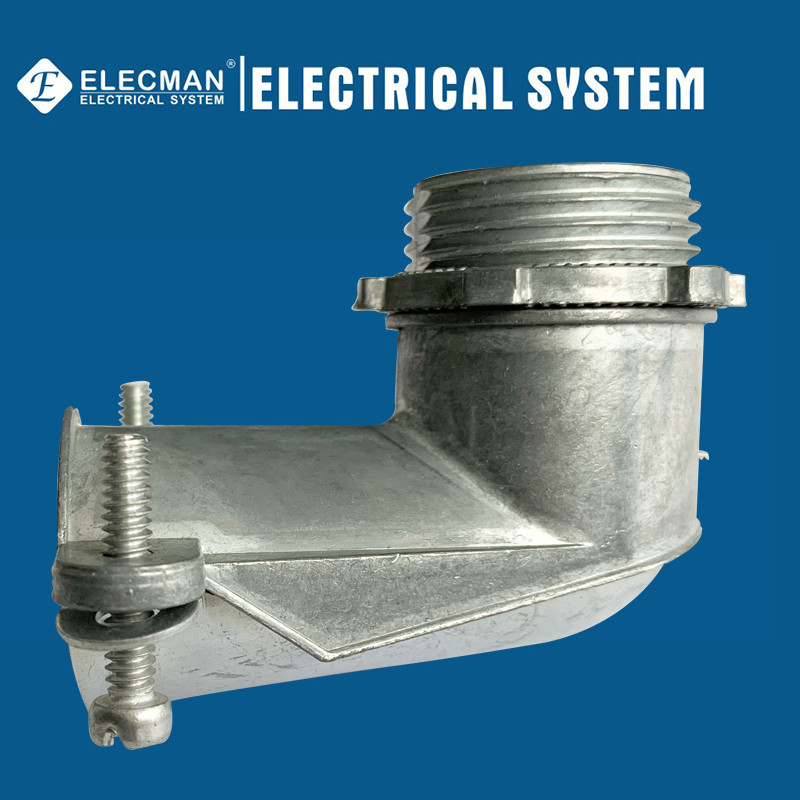

ELECMAN ® Zinc 90 Degree Squeeze Connector 1 Inch Flex To Box Connector
Applications
ELECMAN® 1 inch 90 degree squeeze type connectors are used in dry locations to bond 1 inch flexible metal conduits to boxes or enclosures. Rugged metallic construction maintains mechanical protection and solid grounding of the conduit to the designated electrical junction box or enclosure.
Features
Certifications and Compliances
ELECMAN® Zinc squeeze connector 90 degree flexible conduit to box type shall be produced to the following specification:
Specification Data
ELECMAN provides full size zinc squeeze connector 90 degree flexible conduit to box type from 1/2" to 4".
| CAT # | Trade Size | DIM A | DIM B | DIM C | INNER PACK | MASTER PACK | WEIGHT/C |
| SQN050 | 1/2" | 2.12 | 0.64-1.03 | 0.40 | 25 | 250 | 9.00 |
| SQN075 | 3/4" | 2.40 | 0.76-1.15 | 0.40 | 10 | 200 | 13.50 |
| SQN100 | 1" | 2.87 | 1.08-1.73 | 0.53 | 5 | 100 | 9.00 |
| SQN125 | 1-1/4" | 4.00 | 1.34-1.98 | 0.65 | 50 | 10.00 | |
| SQN150 | 1-1/2" | 6.00 | 1.65-2.61 | 0.75 | 25 | 11.00 | |
| SQN200 | 2" | 6.00 | 1.55-2.55 | 0.73 | 25 | 11.00 | |
| SQN250 | 2-1/2" | 7.18 | 2.45-2.98 | 0.88 | 10 | 9.00 | |
| SQN300 | 3" | 7.88 | 2.93-3.45 | 1.03 | 8 | 10.00 | |
| SQN400 | 4" | 10.20 | 3.68-4.42 | 1.03 | 5 | 10.50 |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the connector body is made of high quality zinc, the screws are made of steel, every part of the connector are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for flexible conduit fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box, from 1-1/4" to 4", ELECMAN provides plastic packing inside the outer box.
