| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | MLTF |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Carton Boxes |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Malleable Iron | Surface Finish: | Zinc Plated |
|---|---|---|---|
| Type: | 45° Type | Size: | 3/8" To 4" |
| Connection: | Female | Usage: | Electrical Wires Installation |
| High Light: | 45 Degree liquid tight conduit fittings,Flexible liquid tight conduit fittings,Iron liquid tight flexible conduit connector |
||

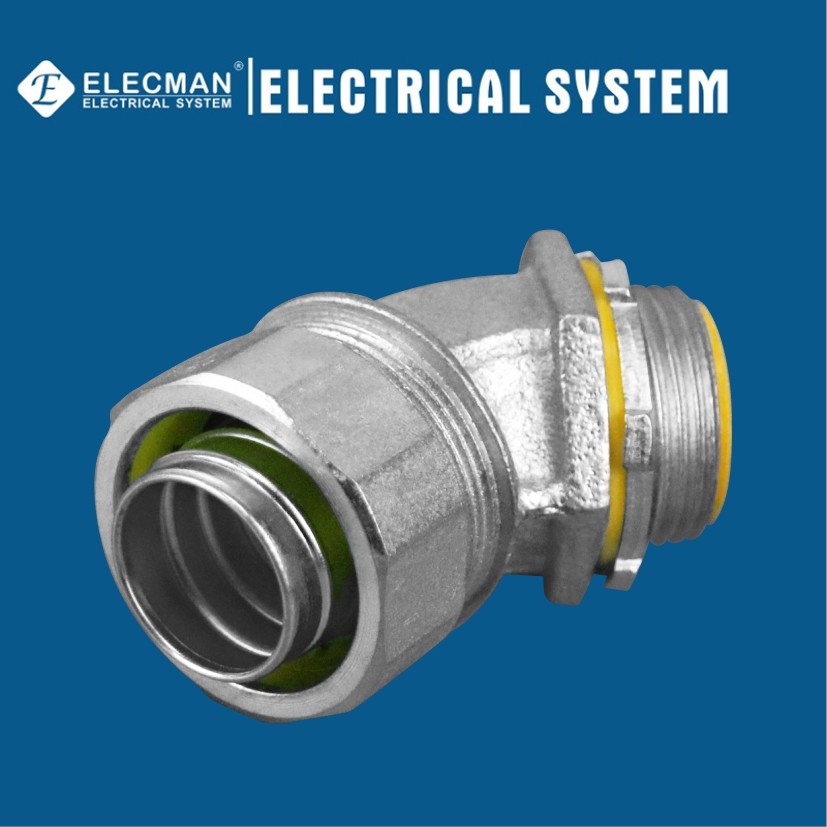

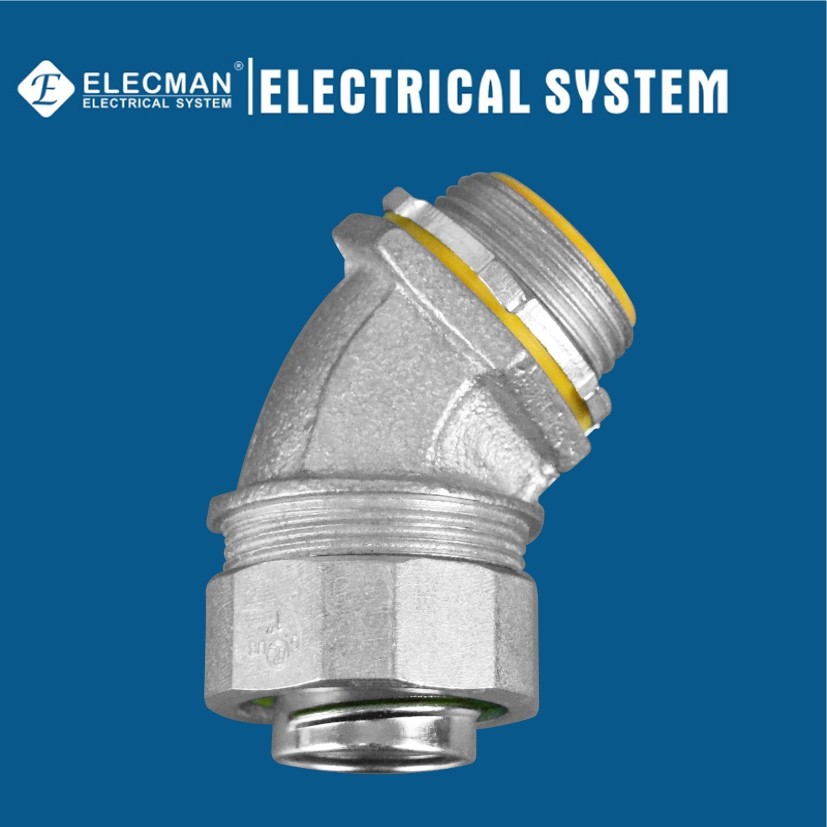

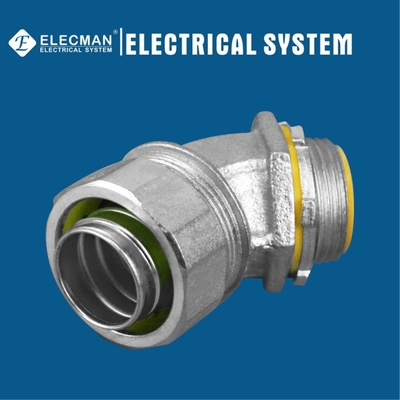

ELECMAN ® Malleable Iron Liquid Tight Connector 45 Degree Flexible Conduit To Box Type
Applications
ELECMAN® Malleable iron liquid tight connectors 45 degree type are designed to slip on to the conduit quickly and to grip the conduit jacket, speeding up installation while ensuring a strong, liquid tight seal that decreases the risk of pullouts. Malleable iron liquid tight connectors 45 degree type are used on flexible metallic liquid tight conduits and type B flexible non metallic liquid tight conduits to positively bond conduits to boxes or enclosures in both wet and damp locations.
Features
Certifications and Compliances
ELECMAN® Malleable iron liquid tight connector 45 degree type shall be produced to the following specification:
- Class II, Divisions 1 & 2;
- Class III, Divisions 1 & 2;
- Suitable for grounding in sizes 3/8” through 1-1/4” under NEC
Specification Data
ELECMAN provides full size malleable liquid tight connectors 45 degree type from 3/8" to 4".
| CAT # | Trade Size | DIM A(inch) | DIM B(inch) | DIM C(inch) | INNER PACK | MASTER PACK |
| MLTF038 | 3/8" | 1.938 | 0.500 | 1.125 | 50 | 250 |
| MLTF050 | 1/2" | 2.000 | 0.500 | 1.250 | 50 | 250 |
| MLTF075 | 3/4" | 2.188 | 0.500 | 1.563 | 50 | 250 |
| MLTF100 | 1" | 2.500 | 0.625 | 1.813 | 40 | 200 |
| MLTF125 | 1-1/4" | 2.813 | 0.688 | 2.250 | 20 | 100 |
| MLTF150 | 1-1/2" | 3.000 | 0.750 | 2.438 | 80 | |
| MLTF200 | 2" | 3.688 | 0.750 | 3.000 | 50 | |
| MLTF212 | 2-1/2" | 7.313 | 1.000 | 4.000 | 25 | |
| MLTF300 | 3" | 7.625 | 1.125 | 4.188 | 15 | |
| MLTF350 | 3-1/2" | 9.625 | 1.188 | 5.250 | 10 | |
| MLTF400 | 4" | 11.063 | 1.250 | 5.750 | 5 |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the connector body is made of high quality malleable iron, the screws are made of steel, every part of the connector are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for flexible conduit fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box, from 1-1/4" to 4", ELECMAN provides plastic packing inside the outer box.
