| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | ALTS |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Carton Boxes |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Malleable Iron/Steel Ferrule/Aluminum Grounding Lug | Surface Finish: | Zinc Plated |
|---|---|---|---|
| Type: | Straight, With Grounding Lug | Size: | 3/8" - 4" |
| Connection: | Flexible Conduit To Box | Color: | Sliver |
| High Light: | Iron flexible metal conduit straight connector,4" flexible metal conduit straight connector,4" straight connector for flexible conduit |
||

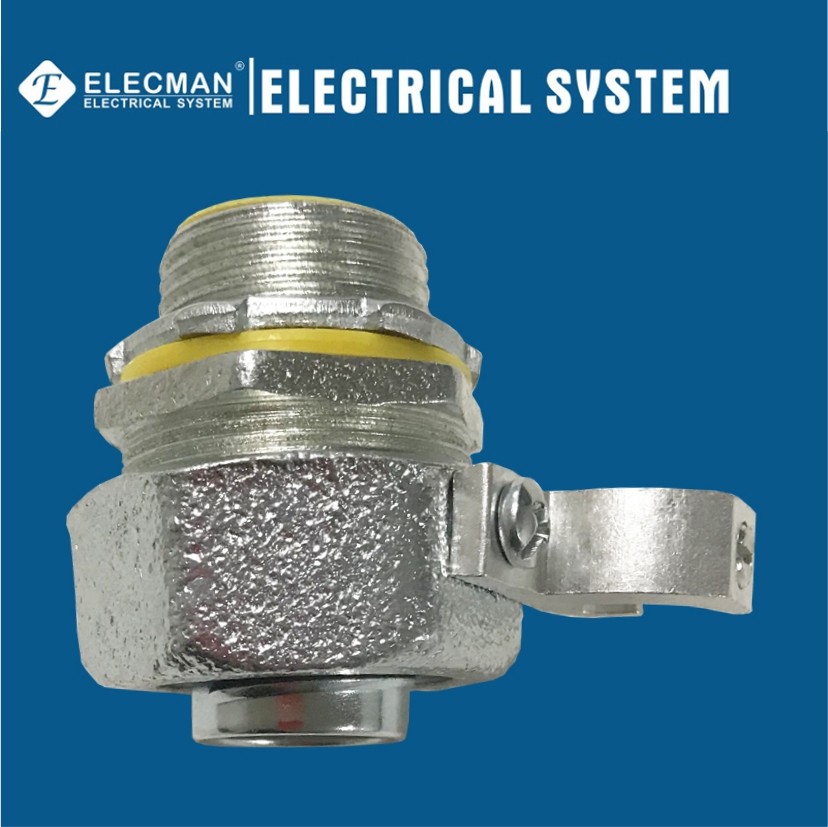

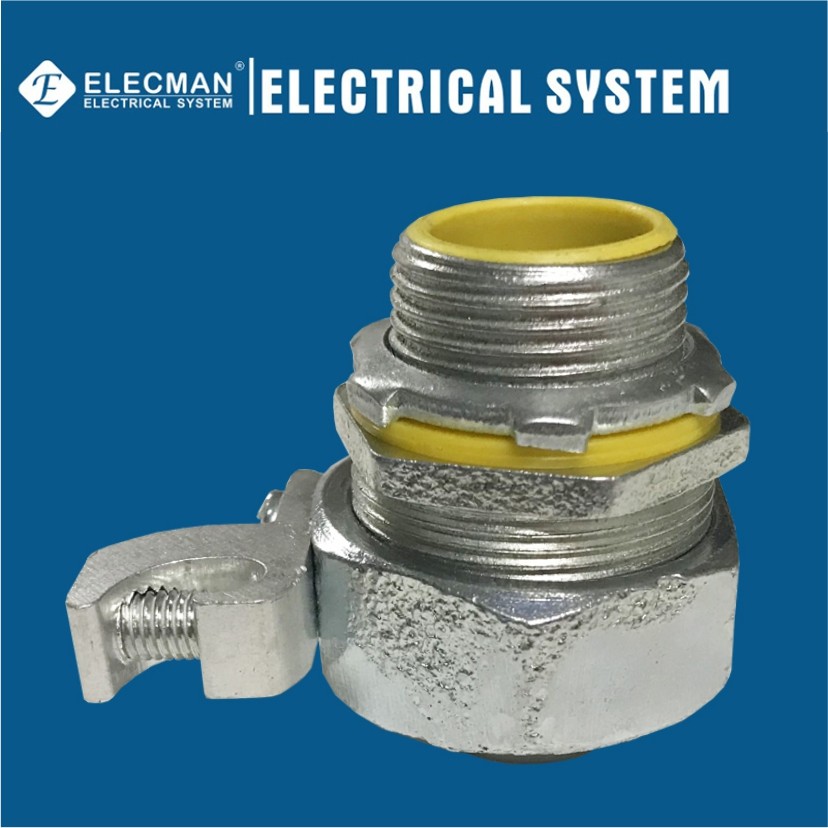

ELECMAN ® Malleable Iron Liquid Tight Connector Straight Type With Grounding Lug
Applications
ELECMAN® Malleable iron liquid tight connectors straight type with grounding lug ensure an enduring, liquidtight connection for liquid tight conduit and can serve to terminate an external bonding conductor that runs parallel to conduit. Fabricated from strong malleable iron and assembled with a steel locknut and aluminum lug, the connector features an insulated throat to protect against conductor abrasion.
Features
Certifications and Compliances
ELECMAN® Malleable iron liquid tight connector straight type with grounding lug shall be produced to the following specification:
- Class II, Divisions 1 & 2;
- Class III, Divisions 1 & 2;
- Suitable for grounding in sizes 3/8” through 1-1/4” under NEC
Specification Data
ELECMAN provides full size malleable iron liquid tight connectors straight type with grounding lug from 3/8" to 4".
| CAT # | Trade Size | DIM A(inch) | DIM B(inch) | DIM C(inch) | DIM D(inch) | INNER PACK | MASTER PACK |
| ALTS038 | 3/8" | 1.125 | 0.500 | 1.125 | 0.750 | 100 | 500 |
| ALTS050 | 1/2" | 1.250 | 0.500 | 1.250 | 0.750 | 100 | 500 |
| ALTS075 | 3/4" | 1.250 | 0.500 | 1.563 | 0.750 | 100 | 250 |
| ALTS100 | 1" | 1.438 | 0.625 | 1.813 | 0.750 | 50 | 200 |
| ALTS125 | 1-1/4" | 1.500 | 0.688 | 2.250 | 0.750 | 40 | 100 |
| ALTS150 | 1-1/2" | 1.625 | 0.750 | 2.438 | 0.750 | 20 | 50 |
| ALTS200 | 2" | 1.750 | 0.750 | 3.000 | 0.750 | 10 | 50 |
| ALTS212 | 2-1/2" | 2.188 | 1.000 | 4.000 | 1.125 | 10 | 25 |
| ALTS300 | 3" | 2.500 | 1.125 | 4.188 | 1.125 | 20 | |
| ALTS350 | 3-1/2" | 2.625 | 1.188 | 5.250 | 1.500 | 20 | |
| ALTS400 | 4" | 2.750 | 1.250 | 5.750 | 1.500 | 10 |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the connector body is made of high quality malleable iron, the screws are made of steel, the grounding lug is made of aluminum, every part of the connector are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for flexible conduit fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box, from 1-1/4" to 4", ELECMAN provides plastic packing inside the outer box.
