| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | MLTN |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Carton Boxes |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Malleable Iron | Surface Finish: | Zinc Plated |
|---|---|---|---|
| Type: | 90° Type | Size: | 3/8" To 4" |
| Connection: | Female | Color: | Sliver |
| High Light: | 3" Flexible Conduit Fittings,Flexible Conduit Fittings Connector,3" liquid tight conduit fittings |
||

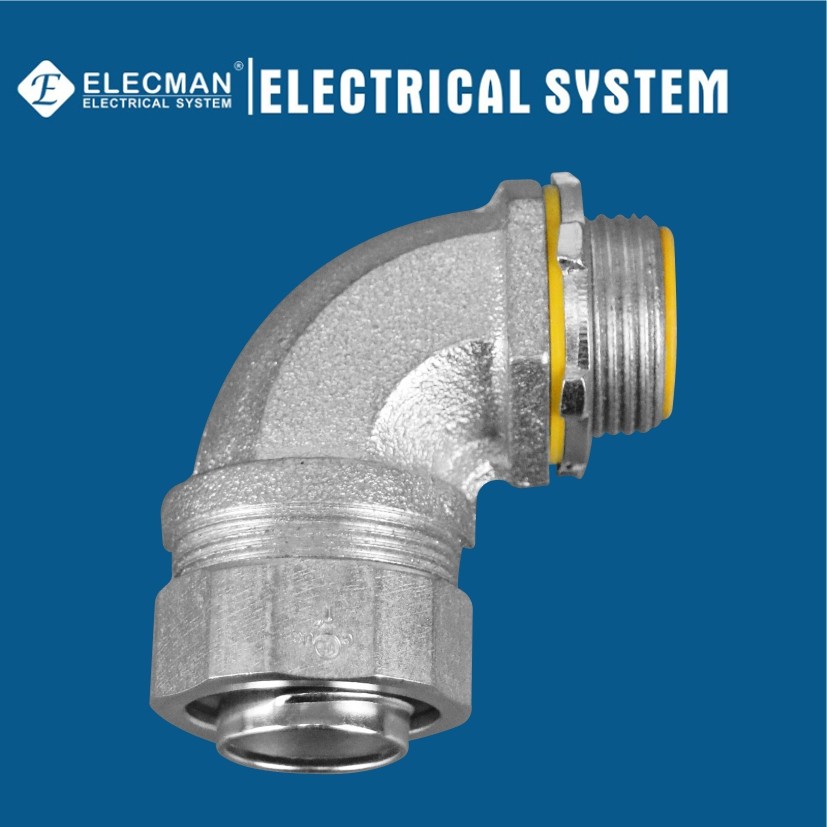

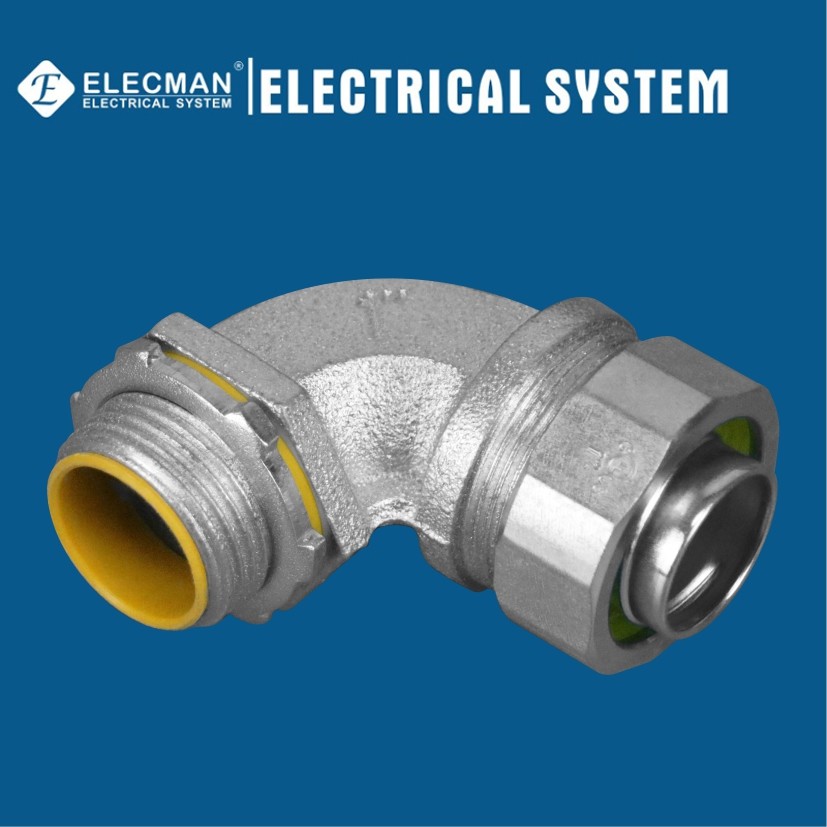

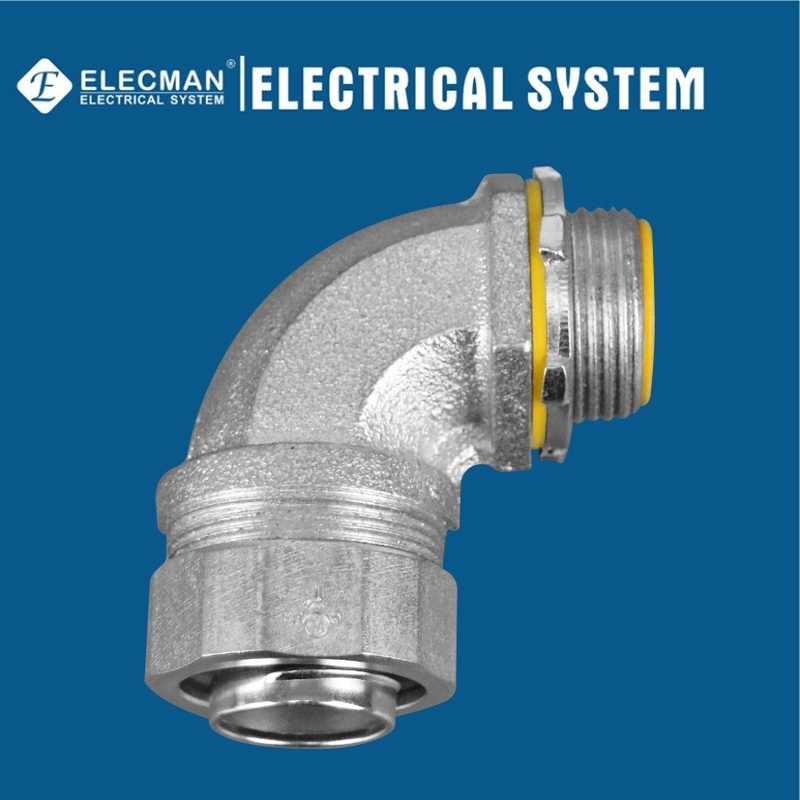

ELECMAN ® Malleable Iron Liquid Tight Connector 90 Degree Flexible Conduit to Box Type
Applications
ELECMAN® Malleable iron liquid tight connectors 90 degree type are used when liquidtight conduit is in tough, industrial and corrosive applications. Liquid tight connectors are suitable for indoor or outdoor locations to connect flexible metallic liquid tight conduit or Type B flexible non-metallic conduit to a box or enclosure. Features our split gland ring that ensures a liquid tight seal. Zinc electro-plated for corrosion resistance.
Features
Certifications and Compliances
ELECMAN® Malleable iron liquid tight connector 90 degree type shall be produced to the following specification:
- Class II, Divisions 1 & 2;
- Class III, Divisions 1 & 2;
- Suitable for grounding in sizes 3/8” through 1-1/4” under NEC
Specification Data
ELECMAN provides full size malleable liquid tight connectors 90 degree type from 3/8" to 4".
| CAT # | Trade Size | DIM A(inch) | DIM B(inch) | DIM C(inch) | INNER PACK | MASTER PACK |
| MLTN038 | 3/8" | 1.313 | 0.500 | 1.125 | 50 | 250 |
| MLTN050 | 1/2" | 1.438 | 0.500 | 1.250 | 50 | 250 |
| MLTN075 | 3/4" | 1.625 | 0.500 | 1.563 | 50 | 250 |
| MLTN100 | 1" | 2.313 | 0.625 | 1.813 | 40 | 200 |
| MLTN125 | 1-1/4" | 2.375 | 0.688 | 2.250 | 20 | 100 |
| MLTN150 | 1-1/2" | 3.063 | 0.750 | 2.438 | 80 | |
| MLTN200 | 2" | 3.188 | 0.750 | 3.000 | 50 | |
| MLTN212 | 2-1/2" | 8.313 | 1.000 | 4.000 | 25 | |
| MLTN300 | 3" | 9.813 | 1.125 | 4.188 | 15 | |
| MLTN350 | 3-1/2" | 11.188 | 1.188 | 5.250 | 10 | |
| MLTN400 | 4" | 12.563 | 1.250 | 5.750 | 5 |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the connector body is made of high quality malleable iron, the screws are made of steel, every part of the connector are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for flexible conduit fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box, from 1-1/4" to 4", ELECMAN provides plastic packing inside the outer box.
