| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | SQN |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Carton Boxes |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Zinc | Surface Finish: | Natural |
|---|---|---|---|
| Type: | 90 Degree Type | Size: | 1/2" To 4" |
| Connection: | Male | Structure: | Universal |
| High Light: | 90 Degree Type Squeeze Box Connector,Zinc Squeeze Box Connector,3/4 Inch Flex Connector |
||

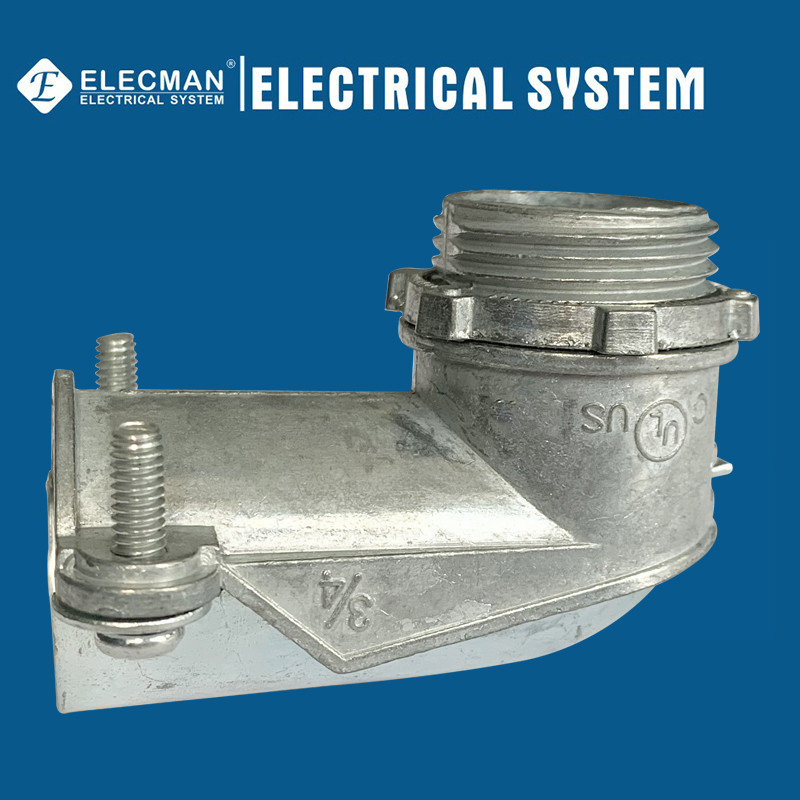

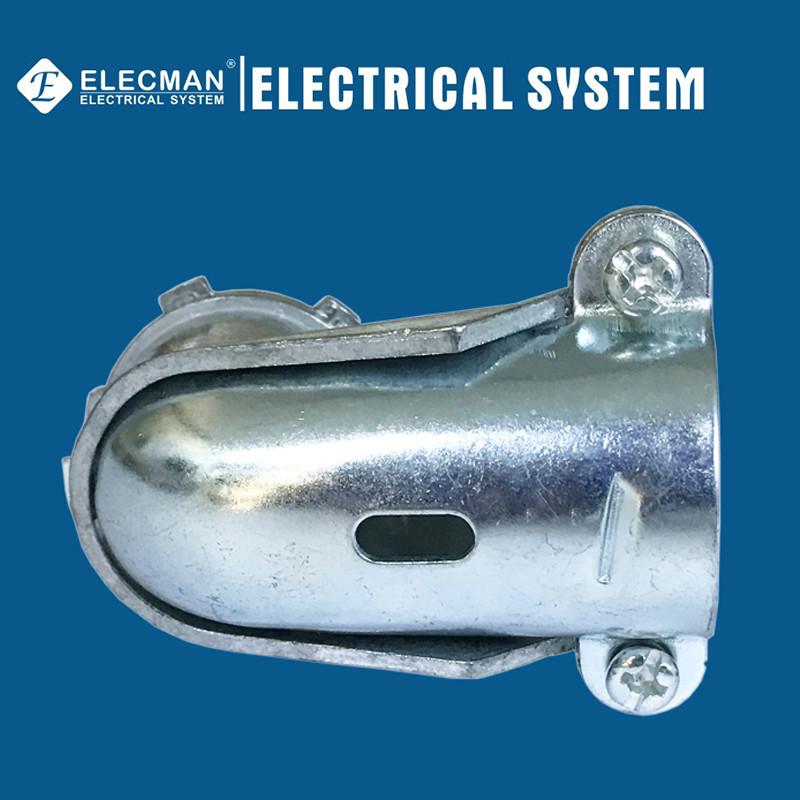

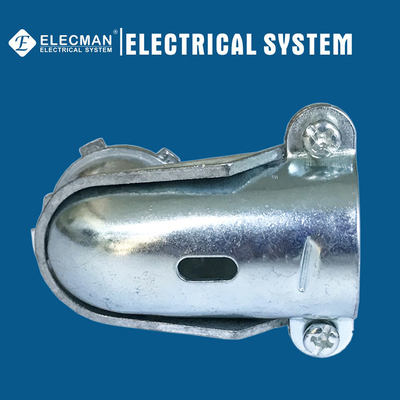

ELECMAN ® Zinc 3/4 Inch Squeeze Box Connector 90 Degree Type Flex Connector
Applications
ELECMAN® Zinc squeeze connectors 90° type are used to connect flexible metal conduit, armored cable, metal, clad cable through a 3/8" or 1/2" knock-out in a steel box, load center, or other metal enclosure where a 90°angle is required, and only use in dry locations.For use to bond flexible metal conduit or armored cable to a box or enclosure.
Features
Certifications and Compliances
ELECMAN® Zinc squeeze connector 90 degree flexible conduit to box type shall be produced to the following specification:
Specification Data
ELECMAN provides full size zinc squeeze connector 90 degree flexible conduit to box type from 1/2" to 4".
| CAT # | Trade Size | DIM A | DIM B | DIM C | INNER PACK | MASTER PACK | WEIGHT/C |
| SQN050 | 1/2" | 2.12 | 0.64-1.03 | 0.40 | 25 | 250 | 9.00 |
| SQN075 | 3/4" | 2.40 | 0.76-1.15 | 0.40 | 10 | 200 | 13.50 |
| SQN100 | 1" | 2.87 | 1.08-1.73 | 0.53 | 5 | 100 | 9.00 |
| SQN125 | 1-1/4" | 4.00 | 1.34-1.98 | 0.65 | 50 | 10.00 | |
| SQN150 | 1-1/2" | 6.00 | 1.65-2.61 | 0.75 | 25 | 11.00 | |
| SQN200 | 2" | 6.00 | 1.55-2.55 | 0.73 | 25 | 11.00 | |
| SQN250 | 2-1/2" | 7.18 | 2.45-2.98 | 0.88 | 10 | 9.00 | |
| SQN300 | 3" | 7.88 | 2.93-3.45 | 1.03 | 8 | 10.00 | |
| SQN400 | 4" | 10.20 | 3.68-4.42 | 1.03 | 5 | 10.50 |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the connector body is made of high quality zinc, the screws are made of steel, every part of the connector are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for flexible conduit fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box, from 1-1/4" to 4", ELECMAN provides plastic packing inside the outer box.
