| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | SQS |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Carton Boxes |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Zinc | Surface Finish: | Polishing |
|---|---|---|---|
| Type: | Straight | Size: | 1/2 Inch - 4 Inch |
| Connection: | Male | Structure: | Universal |
| High Light: | Polishing Flex Conduit Connector,Straight Type Squeeze Connector,1-1/2 Inch Squeeze Connector |
||

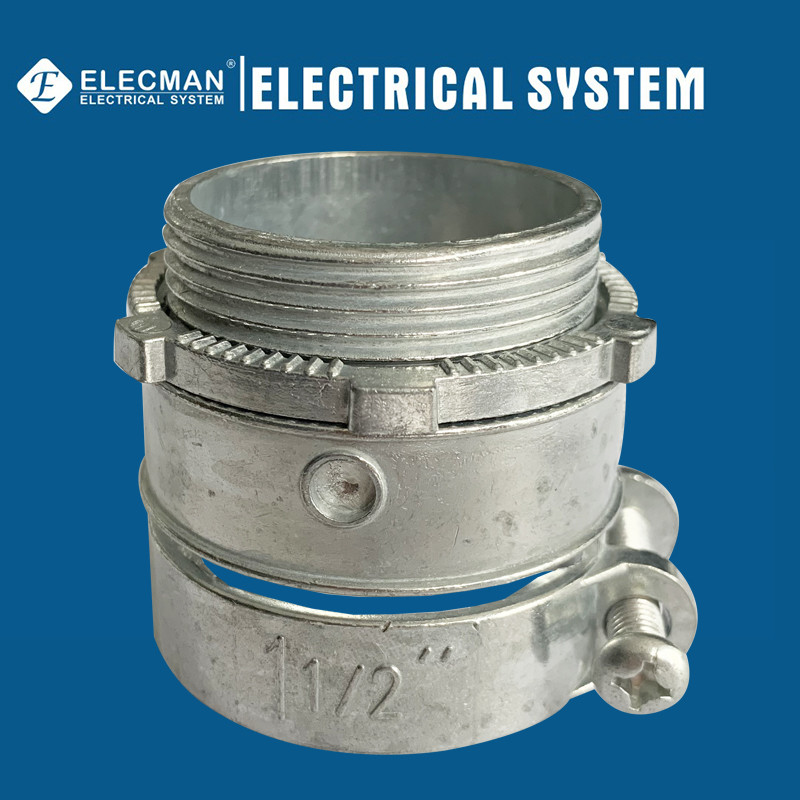

ELECMAN ® Straight Type 1-1/2 Inch Zinc Die Cast Squeeze Connector UL Listed
Applications
ELECMAN® Zinc die cast straight squeeze connectors are used with a locknut to terminate steel or flexible metal conduit, armored cable & MC to an enclosure. Zinc plated steel screw is non-corrosive. Tri drive head is compatible with Phillips, slotted and square screw driver. UL and CSA listed.
Features
Certifications and Compliances
ELECMAN® Zinc squeeze connector straight flexible conduit to box type shall be produced to the following specification:
Specification Data
ELECMAN provides full size zinc squeeze connector straight flexible conduit to box type from 1/2" to 4".
| CAT # | Trade Size | DIM A | DIM B | DIM C | INNER PACK | MASTER PACK | WEIGHT/C |
| SQS050 | 1/2" | 1.46 | 0.74-0.95 | 0.4 | 100 | 500 | 12.50 |
| SQS075 | 3/4" | 1.58 | 0.88-1.11 | 0.4 | 100 | 200 | 9.00 |
| SQS100 | 1" | 1.75 | 1.13-1.39 | 0.54 | 50 | 300 | 15.00 |
| SQS125 | 1-1/4" | 1.91 | 1.42-1.66 | 0.64 | 25 | 100 | 9.00 |
| SQS150 | 1-1/2" | 2.09 | 1.68-1.94 | 0.75 | 25 | 100 | 11.00 |
| SQS200 | 2" | 2.35 | 2.08-2.56 | 0.75 | 10 | 100 | 14.00 |
| SQS250 | 2-1/2" | - | 40 | 15.00 | |||
| SQS300 | 3" | - | 25 | 13.00 | |||
| SQS400 | 4" | - | 20 | 17.00 |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the connector body is made of high quality zinc, the screws are made of steel, every part of the connector are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for flexible conduit fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box, from 1-1/4" to 4", ELECMAN provides plastic packing inside the outer box.
