| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | SQS |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Carton Boxes |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Zinc Die Cast | Surface Finish: | Polishing |
|---|---|---|---|
| Type: | Straight | Size: | 1/2 In - 4 In |
| Connection: | Male | Structure: | Universal |
| High Light: | Zinc Die Cast Cable Flexible Connector,1-1/4" Squeeze Connector,Polishing Straight Squeeze Connector |
||

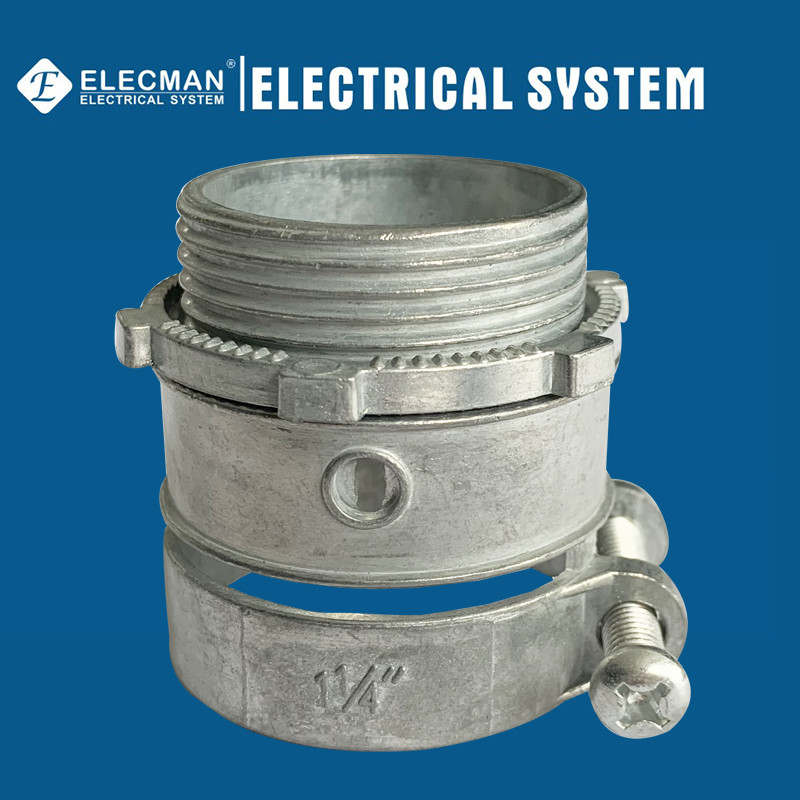

ELECMAN® Zinc Die Cast Straight Squeeze Connector Cable Connector
Applications
ELECMAN® Zinc straight squeeze connector is used to connect and effectively bond armored cable or flexible conduit to electrical box or other metal enclosures by screw connection. Zinc alloy body and locknut are high strength and non-corrosive. Reversible locknuts cuts through protective coating on boxes for ground continuity.
Features
Certifications and Compliances
ELECMAN® Zinc squeeze connector straight flexible conduit to box type shall be produced to the following specification:
Specification Data
ELECMAN provides full size zinc squeeze connector straight flexible conduit to box type from 1/2" to 4".
| CAT # | Trade Size | DIM A | DIM B | DIM C | INNER PACK | MASTER PACK | WEIGHT/C |
| SQS050 | 1/2" | 1.46 | 0.74-0.95 | 0.4 | 100 | 500 | 12.50 |
| SQS075 | 3/4" | 1.58 | 0.88-1.11 | 0.4 | 100 | 200 | 9.00 |
| SQS100 | 1" | 1.75 | 1.13-1.39 | 0.54 | 50 | 300 | 15.00 |
| SQS125 | 1-1/4" | 1.91 | 1.42-1.66 | 0.64 | 25 | 100 | 9.00 |
| SQS150 | 1-1/2" | 2.09 | 1.68-1.94 | 0.75 | 25 | 100 | 11.00 |
| SQS200 | 2" | 2.35 | 2.08-2.56 | 0.75 | 10 | 100 | 14.00 |
| SQS250 | 2-1/2" | - | 40 | 15.00 | |||
| SQS300 | 3" | - | 25 | 13.00 | |||
| SQS400 | 4" | - | 20 | 17.00 |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the connector body is made of high quality zinc, the screws are made of steel, every part of the connector are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for flexible conduit fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box, from 1-1/4" to 4", ELECMAN provides plastic packing inside the outer box.
