| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | SQS |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Carton Boxes |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Zinc | Surface Finish: | Natural |
|---|---|---|---|
| Type: | Straight | Size: | 1/2" - 4" |
| Connection: | Flexible Conduit To Box | Color: | Sliver |
| High Light: | Straight Squeeze Connector 1 Inch,Straight Flex Conduit Connector,Zinc Flex To Box Connector |
||

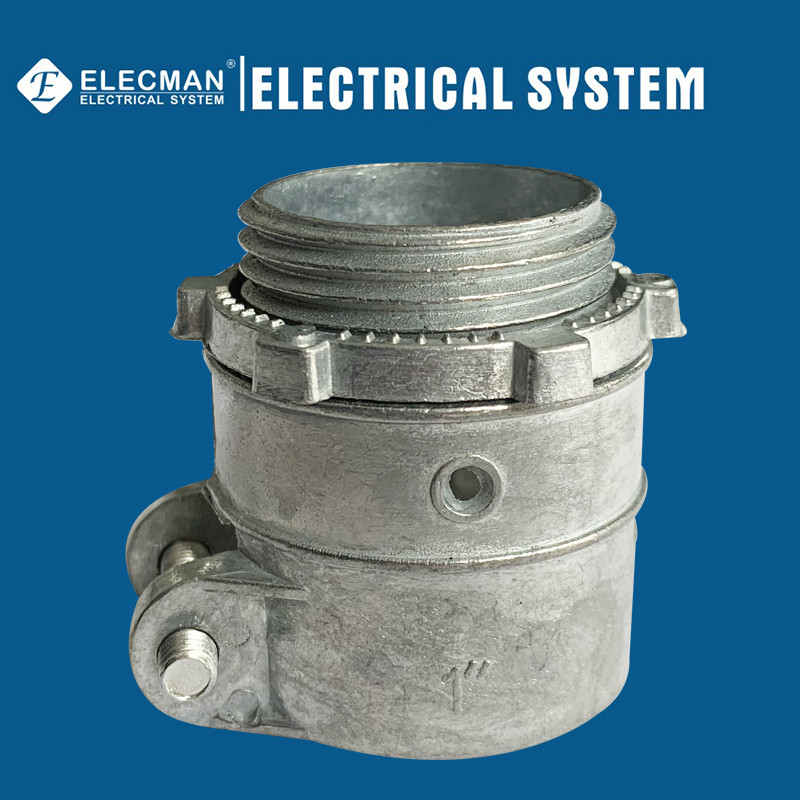

ELECMAN ® Zinc Straight Squeeze Connector 1 Inch Flex To Box Connector
Applications
ELECMAN® Zinc die cast straight squeeze connectors are used to connect flexible metal conduits to boxes, enclosures, lighting fixtures and other appliances. Available in a variety of styles, straight and 90°, they can be screwed into flexible metal conduits or clamped on the outside of jackets.
Features
Certifications and Compliances
ELECMAN® Zinc squeeze connector straight flexible conduit to box type shall be produced to the following specification:
Specification Data
ELECMAN provides full size zinc squeeze connector straight flexible conduit to box type from 1/2" to 4".
| CAT # | Trade Size | DIM A | DIM B | DIM C | INNER PACK | MASTER PACK | WEIGHT/C |
| SQS050 | 1/2" | 1.46 | 0.74-0.95 | 0.4 | 100 | 500 | 12.50 |
| SQS075 | 3/4" | 1.58 | 0.88-1.11 | 0.4 | 100 | 200 | 9.00 |
| SQS100 | 1" | 1.75 | 1.13-1.39 | 0.54 | 50 | 300 | 15.00 |
| SQS125 | 1-1/4" | 1.91 | 1.42-1.66 | 0.64 | 25 | 100 | 9.00 |
| SQS150 | 1-1/2" | 2.09 | 1.68-1.94 | 0.75 | 25 | 100 | 11.00 |
| SQS200 | 2" | 2.35 | 2.08-2.56 | 0.75 | 10 | 100 | 14.00 |
| SQS250 | 2-1/2" | - | 40 | 15.00 | |||
| SQS300 | 3" | - | 25 | 13.00 | |||
| SQS400 | 4" | - | 20 | 17.00 |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the connector body is made of high quality zinc, the screws are made of steel, every part of the connector are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for flexible conduit fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box, from 1-1/4" to 4", ELECMAN provides plastic packing inside the outer box.
