| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | LTN |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Carton Boxes |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Zinc Die-Cast | Surface Finish: | Natural |
|---|---|---|---|
| Type: | 90 Degree | Size: | 3/8 In. - 4 In. |
| Color: | Sliver | Standard: | ANSI |
| High Light: | 4" Zinc Straight Liquid Tight Connector,Flexible Liquid Tight Fittings,Insulated Throat Liquid Tight Straight Connector |
||

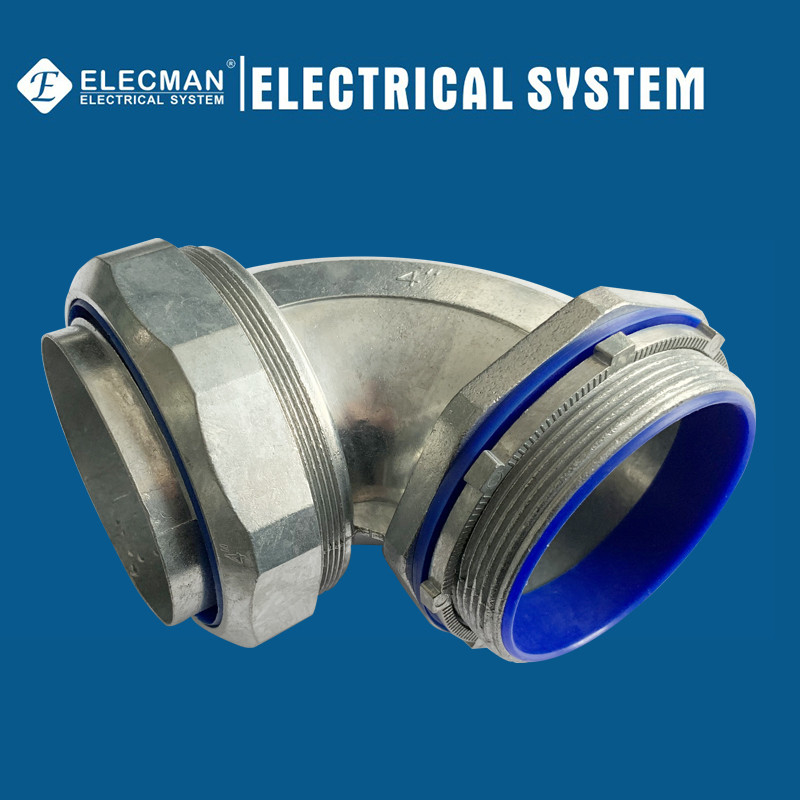

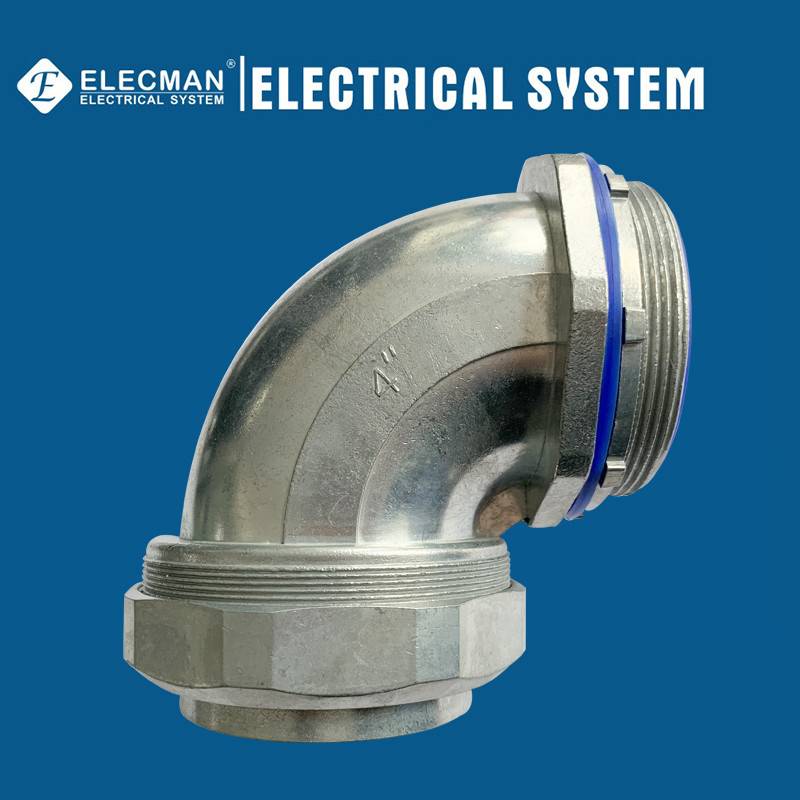

ELECMAN ® 4" Zinc Straight Liquid Tight Connector With Blue Insulated Throat
Applications
ELECMAN® zinc insulated liquid tight 90 degree connector is used in the wiring of machine tools, motors, automation and control, panels, machining processes, wash down areas etc. Allows for a flexible conduit connection that protects from damage due to vibration and movement, and seals out contaminants such as water, dust, oil, etc.
Features
Available in straight and 90 degree configurations.
Available in insulated and non-insulated versions to meet any customer preference.
Certifications and Compliances
ELECMAN® Zinc 90 degree liquid tight connectors shall be produced to the following specification:
- Class I, Division 2;
- Class II, Divisions 1 & 2; and
- Class III, Divisions 1 & 2;
- Suitable for grounding in sizes 3 /8” through 11/4” under NEC
Specification Data
ELECMAN provides full size zinc die cast 90 degree liquid tight connectors from 1/2" to 4".
| CAT # | Trade Size | DIM A(inch) | DIM B(inch) | DIM C(inch) | DIM D(inch) | INNER PACK | MASTER PACK | WEIGHT PER C |
| LTN038 | 3/8" | 0.620 | 0.810 | 0.920 | 1.220 | 50 | 250 | 14.5 |
| LTN050 | 1/2" | 0.620 | 0.910 | 1.020 | 1.220 | 50 | 250 | 15 |
| LTN075 | 3/4" | 0.800 | 1.150 | 1.270 | 1.360 | 40 | 200 | 15 |
| LTN100 | 1" | 1.020 | 1.380 | 1.480 | 1.730 | 20 | 100 | 15 |
| LTN125 | 1-1/4" | 1.360 | 1.770 | 1.930 | 2.110 | 80 | 21 | |
| LTN150 | 1-1/2" | 1.610 | 2.010 | 2.170 | 2.430 | 50 | 21 | |
| LTN200 | 2" | 2.080 | 2.580 | 2.680 | 2.930 | 25 | 17.5 | |
| LTN250 | 2-1/2" | 2.510 | 3.150 | 3.210 | 3.620 | 15 | 21 | |
| LTN300 | 3" | 3.130 | 3.670 | 3.740 | 4.280 | 10 | 21 | |
| LTN350 | 3-1/2" | 3.580 | 4.170 | 4.230 | 4.840 | 10 | 21 | |
| LTN400 | 4" | 4.060 | 4.740 | 4.750 | 5.370 | 5 | 21 |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the connector body is made of high quality zinc, the screws are made of steel, every part of the connector are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for flexible conduit fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box, from 1-1/4" to 4", ELECMAN provides plastic packing inside the outer box.
