| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | LTN |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Carton Boxes |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Zinc Die-Cast | Surface Finish: | Natural |
|---|---|---|---|
| Type: | 90 Degree | Size: | 3/8 In. - 4 In. |
| Color: | Sliver | Standard: | ANSI |
| High Light: | 90 Degree Flexible Conduit Connector,2" Zinc Liquid Tight Flexible Connector,Liquid Tight Flexible Conduit Connector |
||

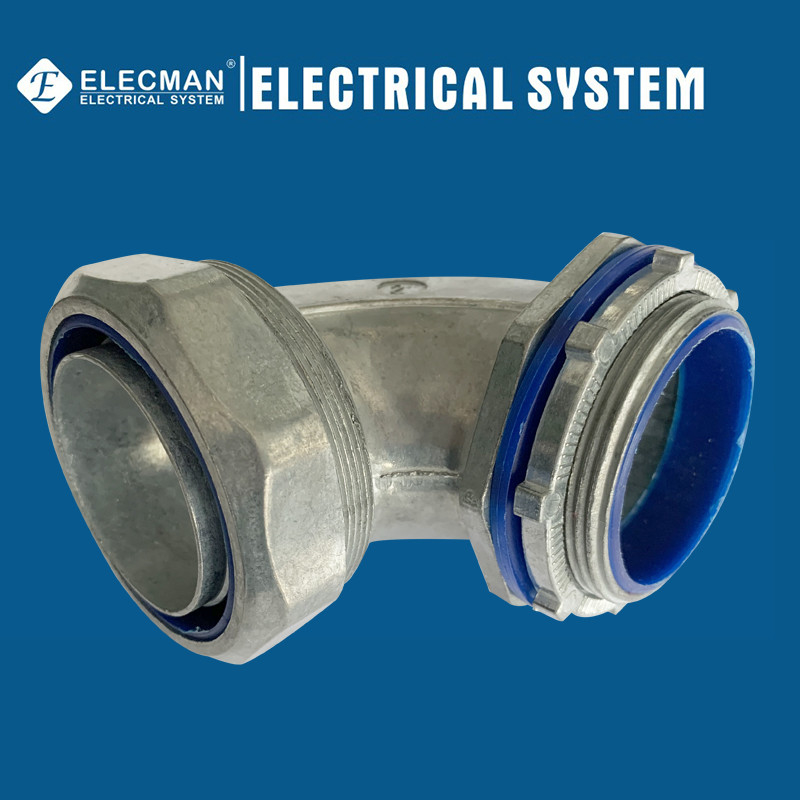

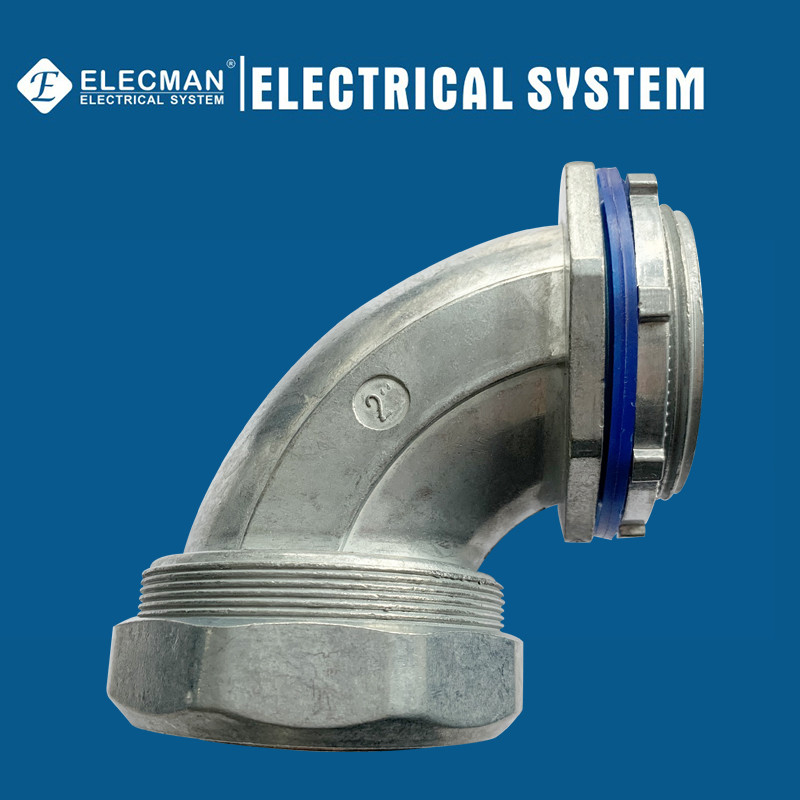

ELECMAN ® 2" Zinc Insulated 90 Degree Liquid Tight Flexible Conduit Connector
Applications
ELECMAN® Insulated zinc 90 degree liquid tight connectors are widely used in the wire and cable protection, and connector the flexible metal conduit or pvc coated conduit with machine. Zinc construction resists salt water, weak acids, gasoline, alcohol, oil, grease, & common solvents. Resistant to outdoor weather conditions.
Features
Available in straight and 90 degree configurations.
Available in insulated and non-insulated versions to meet any customer preference.
Certifications and Compliances
ELECMAN® Zinc 90 degree liquid tight connectors shall be produced to the following specification:
- Class I, Division 2;
- Class II, Divisions 1 & 2; and
- Class III, Divisions 1 & 2;
- Suitable for grounding in sizes 3 /8” through 11 /4” under NEC
Specification Data
ELECMAN provides full size zinc die cast 90 degree liquid tight connectors from 1/2" to 4".
| CAT # | Trade Size | DIM A(inch) | DIM B(inch) | DIM C(inch) | DIM D(inch) | INNER PACK | MASTER PACK | WEIGHT PER C |
| LTN038 | 3/8" | 0.620 | 0.810 | 0.920 | 1.220 | 50 | 250 | 14.5 |
| LTN050 | 1/2" | 0.620 | 0.910 | 1.020 | 1.220 | 50 | 250 | 15 |
| LTN075 | 3/4" | 0.800 | 1.150 | 1.270 | 1.360 | 40 | 200 | 15 |
| LTN100 | 1" | 1.020 | 1.380 | 1.480 | 1.730 | 20 | 100 | 15 |
| LTN125 | 1-1/4" | 1.360 | 1.770 | 1.930 | 2.110 | 80 | 21 | |
| LTN150 | 1-1/2" | 1.610 | 2.010 | 2.170 | 2.430 | 50 | 21 | |
| LTN200 | 2" | 2.080 | 2.580 | 2.680 | 2.930 | 25 | 17.5 | |
| LTN250 | 2-1/2" | 2.510 | 3.150 | 3.210 | 3.620 | 15 | 21 | |
| LTN300 | 3" | 3.130 | 3.670 | 3.740 | 4.280 | 10 | 21 | |
| LTN350 | 3-1/2" | 3.580 | 4.170 | 4.230 | 4.840 | 10 | 21 | |
| LTN400 | 4" | 4.060 | 4.740 | 4.750 | 5.370 | 5 | 21 |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the connector body is made of high quality zinc, the screws are made of steel, every part of the connector are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for flexible conduit fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box, from 1-1/4" to 4", ELECMAN provides plastic packing inside the outer box.
