| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | LTS |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Carton Boxes |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Zinc Die Cast | Surface Finish: | Polishing |
|---|---|---|---|
| Type: | Straight | Specification: | 3/8 In. To 4 In. |
| Connection: | Female | Standard: | ANSI |
| High Light: | Polishing Liquid Tight Straight Connector,Flexible Liquid Tight Straight Connector |
||

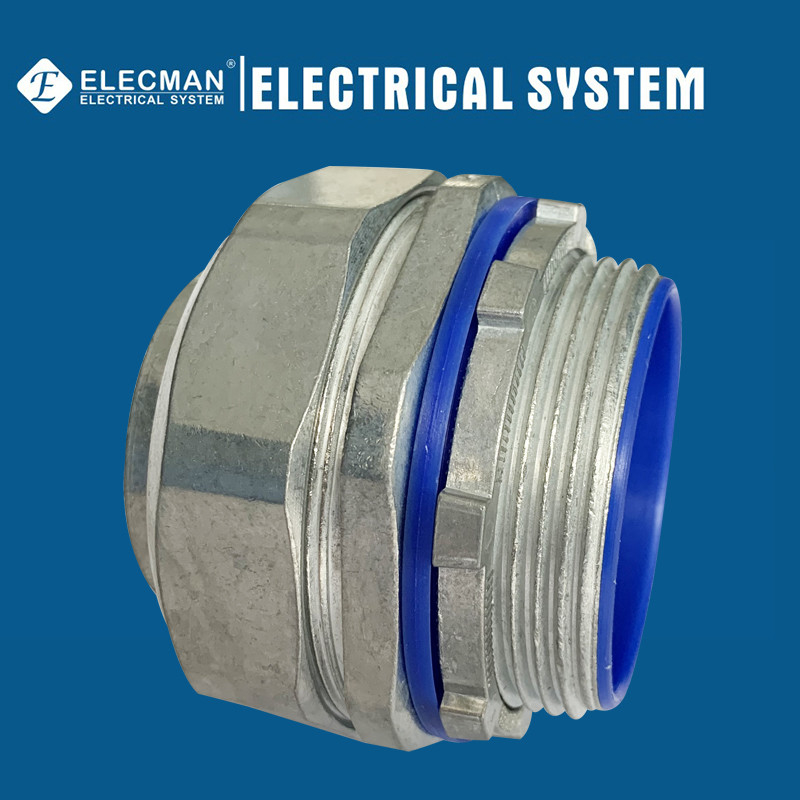

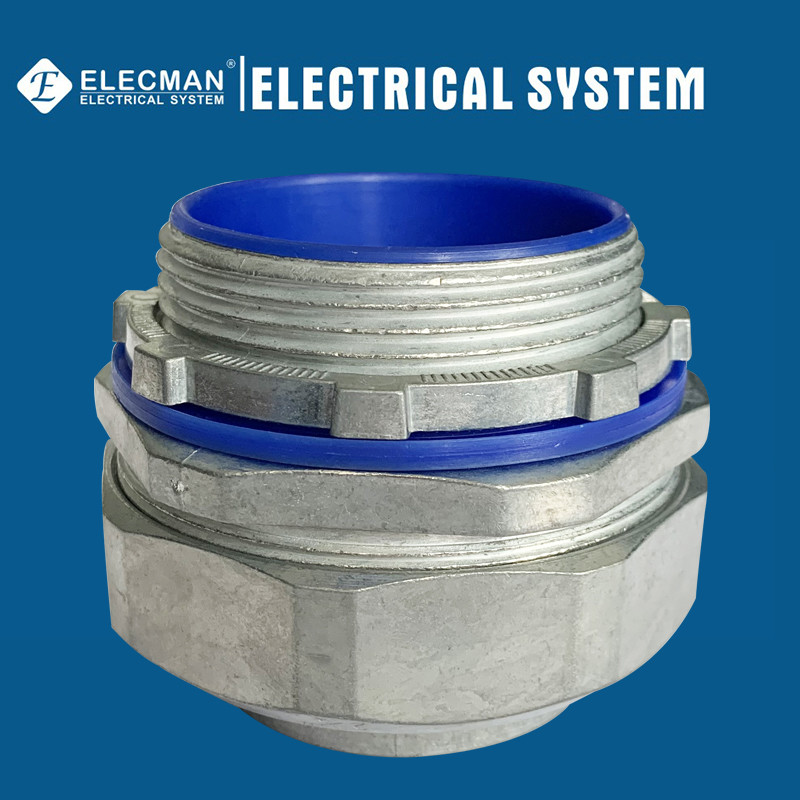

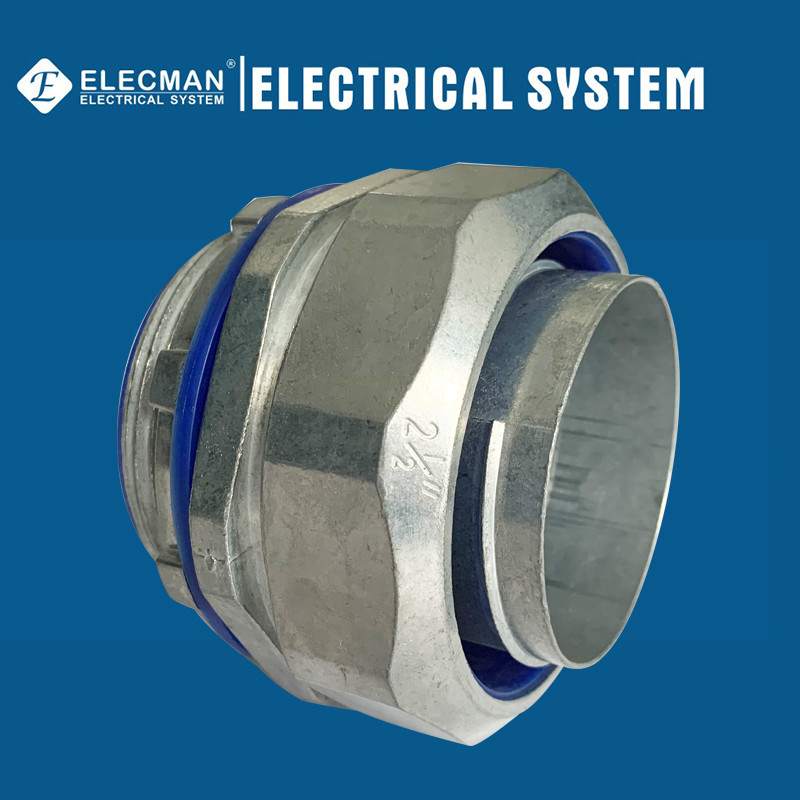

ELECMAN ® 2-1/2 In. Insulated Straight Liquid-Tight Connector UL Listed
Applications
ELECMAN® Liquid-tight insulated connector is used to terminate and seal metallic and nonmetallic "Type B" liquid tight conduit to a steel outlet box or any other metallic enclosure in either dry or wet locations. Straight liquid tight connectors are designed to slip on to the conduit quickly and to grip the conduit jacket, speeding up installation while ensuring a strong, liquid tight seal that decreases the risk of pullouts.
Features
Sealing washer provides a liquidtight seal when terminating the connector in a threadless opening.
Available in straight and 90 degree configurations.
Available in insulated and non-insulated versions to meet any customer preference.
Certifications and Compliances
ELECMAN® Zinc liquid tight connectors straight type shall be produced to the following specification:
- Class I, Division 2;
- Class II, Divisions 1 & 2;
- Class III, Divisions 1 & 2;
- Suitable for grounding in sizes 3 /8” through 11 /4” under NEC
Specification Data
ELECMAN provides full size zinc liquid tight connectors straight type from 1/2" to 4".
| CAT # | Trade Size | DIM A(inch) | DIM B(inch) | DIM C(inch) | DIM D(inch) | INNER PACK | MASTER PACK | WEIGHT PER C |
| LTS038 | 3/8" | 1.070 | 0.960 | 0.620 | 0.470 | 100 | 500 | 14.5 |
| LTS050 | 1/2" | 1.070 | 1.080 | 0.620 | 0.470 | 100 | 500 | 15.5 |
| LTS075 | 3/4" | 1.070 | 1.330 | 0.820 | 0.470 | 100 | 250 | 15.5 |
| LTS100 | 1" | 1.340 | 1.563 | 1.020 | 0.570 | 50 | 200 | 15.5 |
| LTS125 | 1-1/4" | 1.150 | 1.940 | 1.360 | 0.710 | 40 | 100 | 15.5 |
| LTS150 | 1-1/2" | 1.520 | 2.190 | 1.600 | 0.710 | 20 | 50 | 14.5 |
| LTS200 | 2" | 1.540 | 2.660 | 2.070 | 0.710 | 10 | 50 | 15.5 |
| LTS250 | 2-1/2" | 2.200 | 3.280 | 2.510 | 1.060 | 10 | 25 | 14.5 |
| LTS300 | 3" | 2.220 | 3.800 | 3.130 | 1.060 | - | 20 | 17.5 |
| LTS350 | 3-1/2" | 2.360 | 4.280 | 3.580 | 1.060 | - | 20 | 17.5 |
| LTS400 | 4" | 2.440 | 4.780 | 4.050 | 1.060 | - | 10 | 17.5 |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the connector body is made of high quality zinc, the screws are made of steel, every part of the connector are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for flexible conduit fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box, from 1-1/4" to 4", ELECMAN provides plastic packing inside the outer box.
