| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | LTS |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Carton Boxes |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Zinc Die-Cast | Surface Finish: | Polishing |
|---|---|---|---|
| Type: | Straight | Specification: | 3/8" - 4" |
| Connection: | Female | Standard: | ANSI |

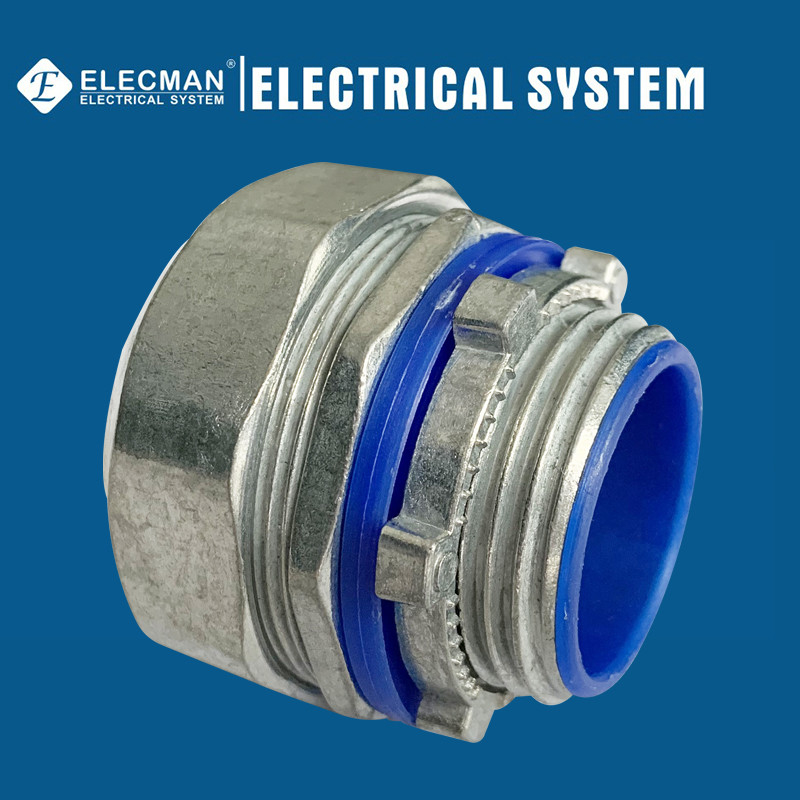

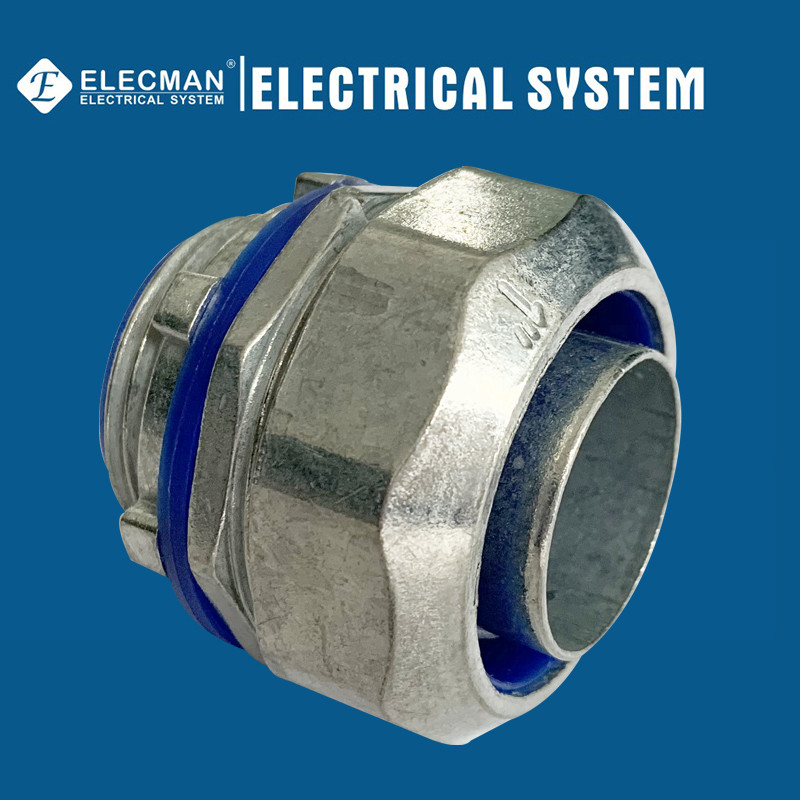

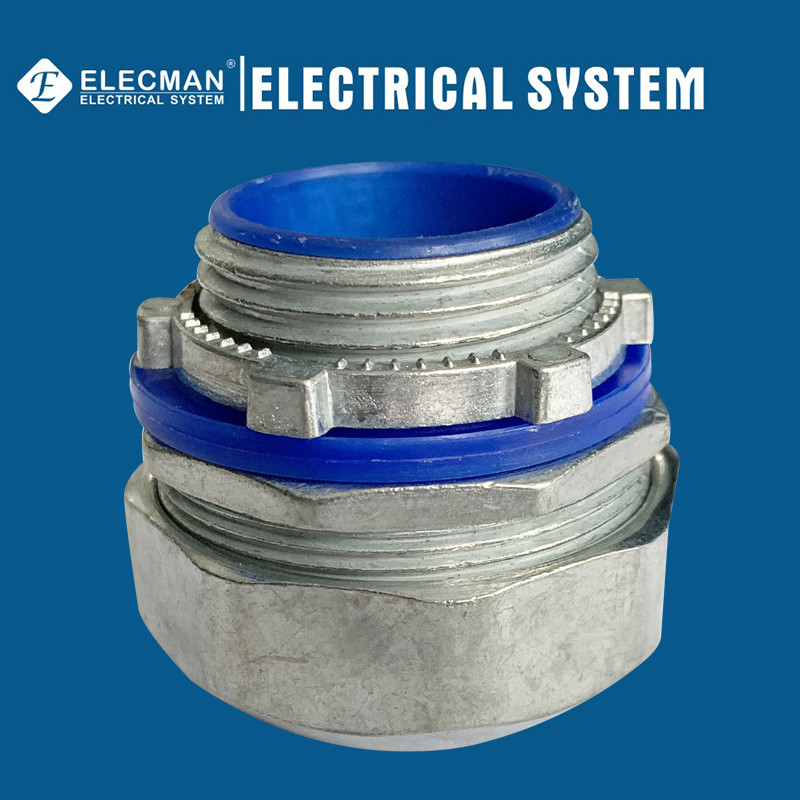

ELECMAN ® Zinc Die Cast 1 in. Straight Liquid Tight Flex Watertight Connector
Applications
ELECMAN® Zinc liquid tight flex watertight connectors are suitable for metallic and nonmetallic liquid tight conduits and used to seal out water, oil & dust and other damaging particles to ensure continued product integrity and performance. Available for 3/8" - 4". Assembled with a die-cast locknut, which ensures a secure and reliable connection.
Features
Sealing washer provides a liquidtight seal when terminating the connector in a threadless opening.
Available in straight and 90 degree configurations.
Available in insulated and non-insulated versions to meet any customer preference.
Certifications and Compliances
ELECMAN® Zinc liquid tight connectors straight type shall be produced to the following specification:
- Class I, Division 2;
- Class II, Divisions 1 & 2;
- Class III, Divisions 1 & 2;
- Suitable for grounding in sizes 3 /8” through 11 /4” under NEC
Specification Data
ELECMAN provides full size zinc liquid tight connectors straight type from 1/2" to 4".
| CAT # | Trade Size | DIM A(inch) | DIM B(inch) | DIM C(inch) | DIM D(inch) | INNER PACK | MASTER PACK | WEIGHT PER C |
| LTS038 | 3/8" | 1.070 | 0.960 | 0.620 | 0.470 | 100 | 500 | 14.5 |
| LTS050 | 1/2" | 1.070 | 1.080 | 0.620 | 0.470 | 100 | 500 | 15.5 |
| LTS075 | 3/4" | 1.070 | 1.330 | 0.820 | 0.470 | 100 | 250 | 15.5 |
| LTS100 | 1" | 1.340 | 1.563 | 1.020 | 0.570 | 50 | 200 | 15.5 |
| LTS125 | 1-1/4" | 1.150 | 1.940 | 1.360 | 0.710 | 40 | 100 | 15.5 |
| LTS150 | 1-1/2" | 1.520 | 2.190 | 1.600 | 0.710 | 20 | 50 | 14.5 |
| LTS200 | 2" | 1.540 | 2.660 | 2.070 | 0.710 | 10 | 50 | 15.5 |
| LTS250 | 2-1/2" | 2.200 | 3.280 | 2.510 | 1.060 | 10 | 25 | 14.5 |
| LTS300 | 3" | 2.220 | 3.800 | 3.130 | 1.060 | - | 20 | 17.5 |
| LTS350 | 3-1/2" | 2.360 | 4.280 | 3.580 | 1.060 | - | 20 | 17.5 |
| LTS400 | 4" | 2.440 | 4.780 | 4.050 | 1.060 | - | 10 | 17.5 |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the connector body is made of high quality zinc, the screws are made of steel, every part of the connector are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for flexible conduit fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box, from 1-1/4" to 4", ELECMAN provides plastic packing inside the outer box.
