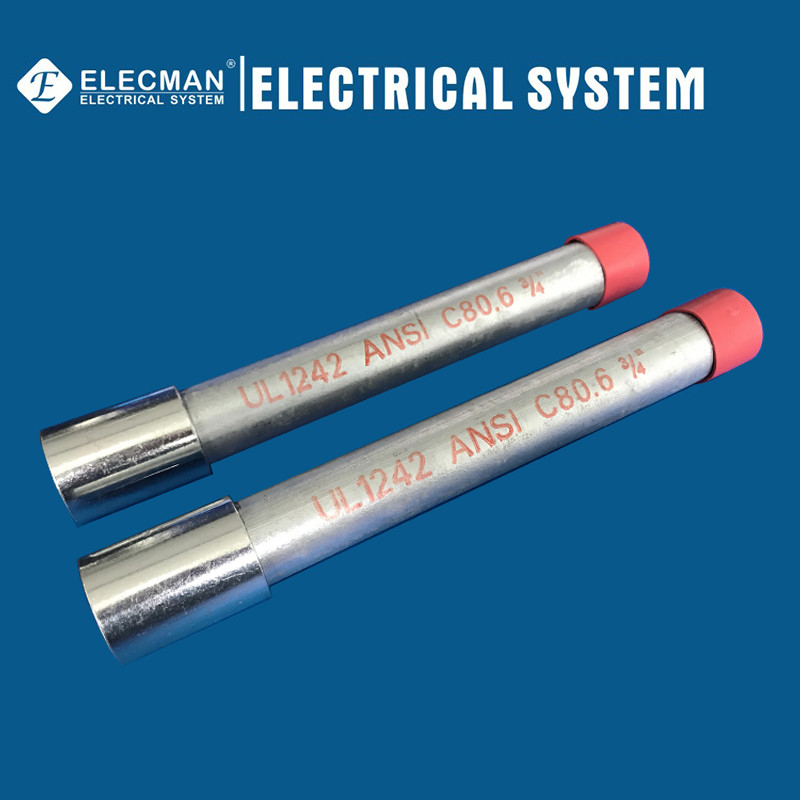

3/4 Inch Hot Dipped Galvanized IMC Conduit UL 1242 IMC Pipe IMC Tube

ELECMAN ® 3/4 Inch Hot Dipped Galvanized IMC Conduit UL 1242 IMC Pipe IMC Tube

Applications

ELECMAN® IMC conduit is produced by galvanized steel with great corrosion resistance and long time, smooth surface both inside and outside of the conduit, free from black spots and bubbles, suitable for indoor and outdoor use. IMC conduit can be connected with conduit or whorled connector to protect wires. Even for outdoor, wires arranged by IMC conduit will not be influenced by the weather.

Features

• Intermediate metal conduit (IMC conduit) is threaded on both ends.
• Intermediate metal conduit (IMC conduit) removes any sharp or rough edge to protect the cables when installations.
• The outside is galvanized for corrosion protection and the inside has an approved corrosion-resistant organic coating.
• High strength ductile steel for long life and easy bending.
• Smooth, continuous raceway for fast wire pulling.
• Protects insulated electrical conductors and cables from magnetic fields, impact damage and crushing.
• IMC conduit connects with threaded type connectors for indoor and outdoor use.

Certifications and Compliances

ELECMAN ® UL1242 ANSI C80.6 electrical 3/4 inch IMC conduits shall be carbon steel, electrically welded, galvanized and produced to the following specifications:

• American National Standards Institute, Inc.-ANSI C80.6.
• Underwriters Laboratories Standard for Electrical Metallic Tubing.-UL1242.

Specification Data

ELECMAN ® UL1242 ANSI C80.6 electrical 3/4 inch IMC conduits are listed to UL Safety Standard 1242 and manufactured in accordance with ANSI C80.6. details shall accord with Table 1.

Raw Material

ELECMAN ® Intermediate Metal Conduit (IMC) is produced from Carbon structural steel (Q195).

Chemical Composition

Steel type and chemical composition (melting analysis) shall accord with Table 2.

Manufacturing Process

ELECMAN ® Intermediate Metal Conduit (IMC) is manufactured according to the following production process:

Quality Control

Every ELECMAN people know deeply the core value of ELECMAN is to provide high quality products to customers, that is why ELECMAN QC departments have very strict quality controlling process, from raw material to products, ELECMAN QC department supervise every process, make sure every process follow the standard, for IMC conduits, QC department need to inspect the dimensions, welding line, zinc coatings and bending feature.

Packing Information

IMC conduits are packed in bundles with woven bag, we also can put customers’ sticker on pipes, on woven bag, we will put a big sticker with detailed information for customers to distinguish different sizes. For regular packing information, please check the Table 2.
