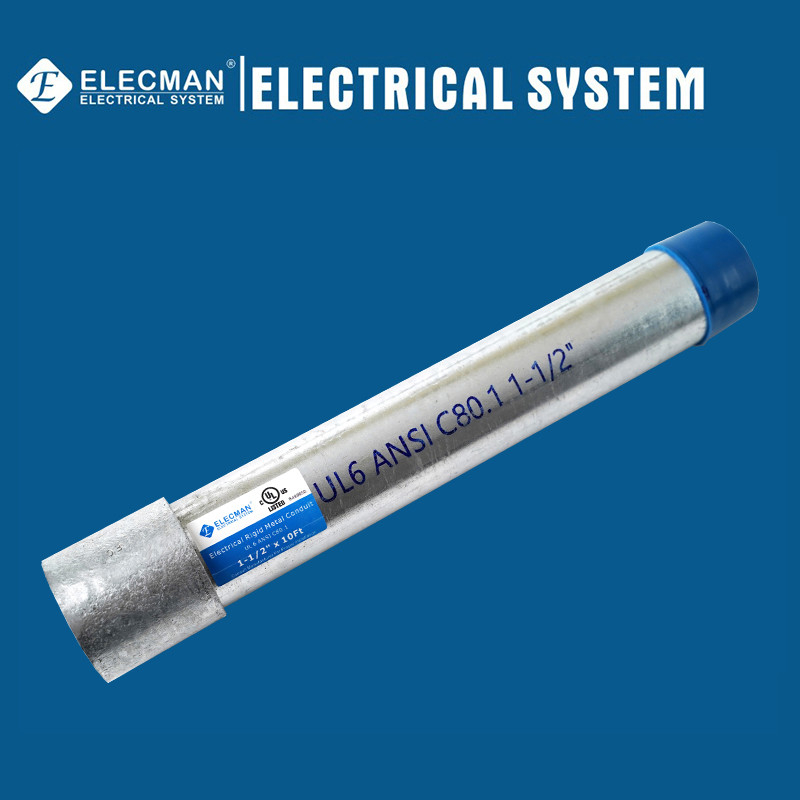

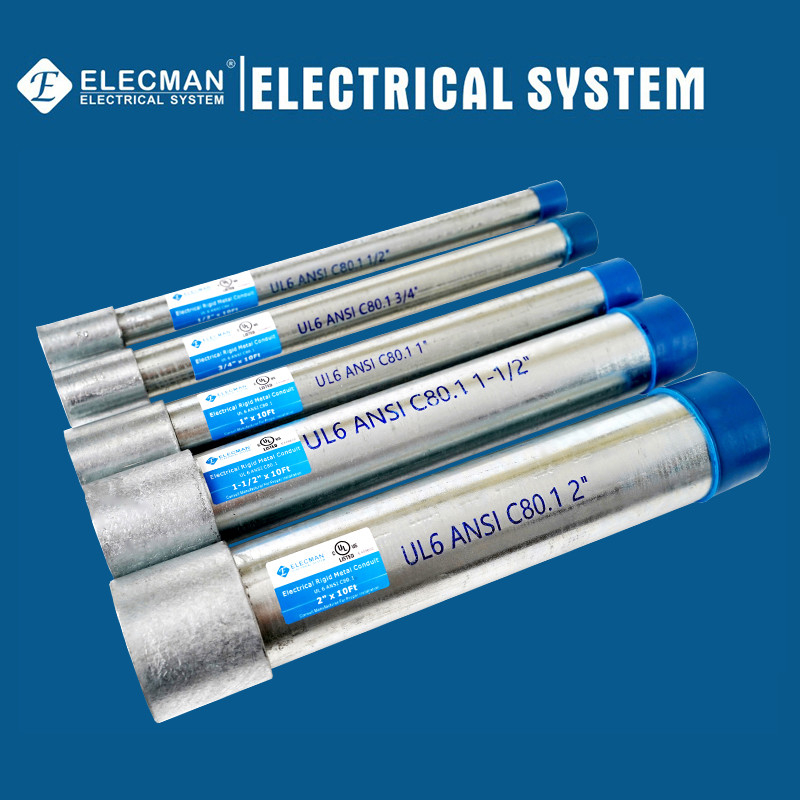

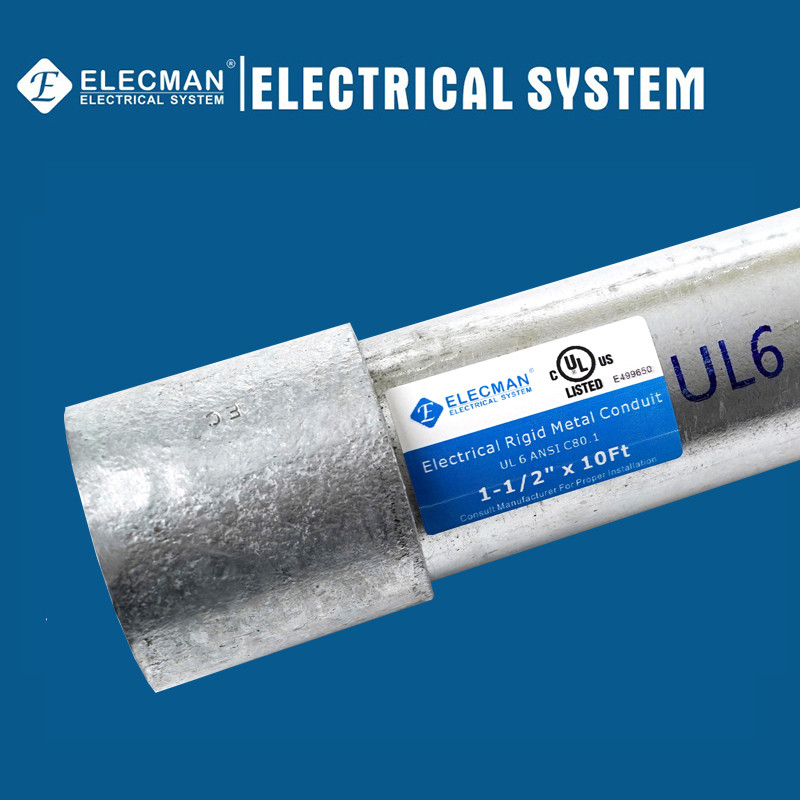

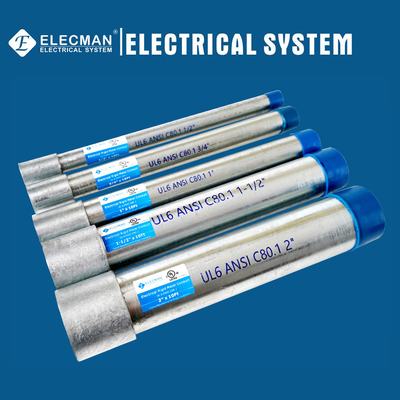

1-1/2" Rigid Steel Conduit Hot Dipped Galvanized RSC Conduit UL6 ANSI 80.1

ELECMAN ® 1-1/2" Rigid Steel Conduit Hot Dipped Galvanized RSC Conduit UL6 ANSI 80.1

Applications

ELECMAN® Rigid metal conduit is typically made of heavy gauge steel and installed using threaded fittings. When used outside, it can protect against weather, withstand fire, and even provide structural support for your electrical equipment. Its physical and mechanical properties ensure that the conduit has an extended life cycle.

Features

• Protects insulated electrical conductors and cables from magnetic fields, impact damage and crushing.
• Excellent mechanical protection for conductors.
• High grade mild strip steel for durability and longer life.
• Hot-dip galvanized for excellent corrosion resistance.
• High strength ductile steel for long life and easy bending.
• Smooth, continuous raceway for fast wire pulling.
• Rigid steel conduit is threaded on both ends.
• Rigid conduit connects with threaded type connectors for indoor and outdoor use.

Certifications and Compliances

ELECMAN® UL6 carbon structural steel Rigid steel conduit(RSC conduit) shall be carbon steel, electrically welded, galvanized and produced to the following specifications:

• American National Standards Institute, Inc.-ANSI C80.6.
• UL standard for rigid steel conduit - steel, UL6, file # E499650.

​

   ​

Specification Data

ELECMAN® UL6 carbon structural steel Rigid steel conduit(RSC conduit) are listed to UL Safety Standard 6 and manufactured in accordance with ANSI C80.6. details shall accord with Table 1.

Raw Material

ELECMAN ® Rigid Steel Conduit (RSC) is produced from Carbon structural steel (Q195).

Chemical Composition

Steel type and chemical composition (melting analysis) shall accord with Table 2.

Manufacturing Process

ELECMAN ® Rigid Steel Conduit (RSC) is manufactured according to the following production process:

Quality Control

Every ELECMAN people know deeply the core value of ELECMAN is to provide high quality products to customers, that is why ELECMAN QC departments have very strict quality controlling process, from raw material to products, ELECMAN QC department supervise every process, make sure every process follow the standard, for RSC conduit, QC department need to inspect the dimensions, welding line, zinc coatings and bending feature.

Packing Information

RSC conduits are packed in bundles with woven bag, we also can put customers’ sticker on pipes, on woven bag, we will put a big sticker with detailed information for customers to distinguish different sizes. For regular packing information, please check the Table 3.
