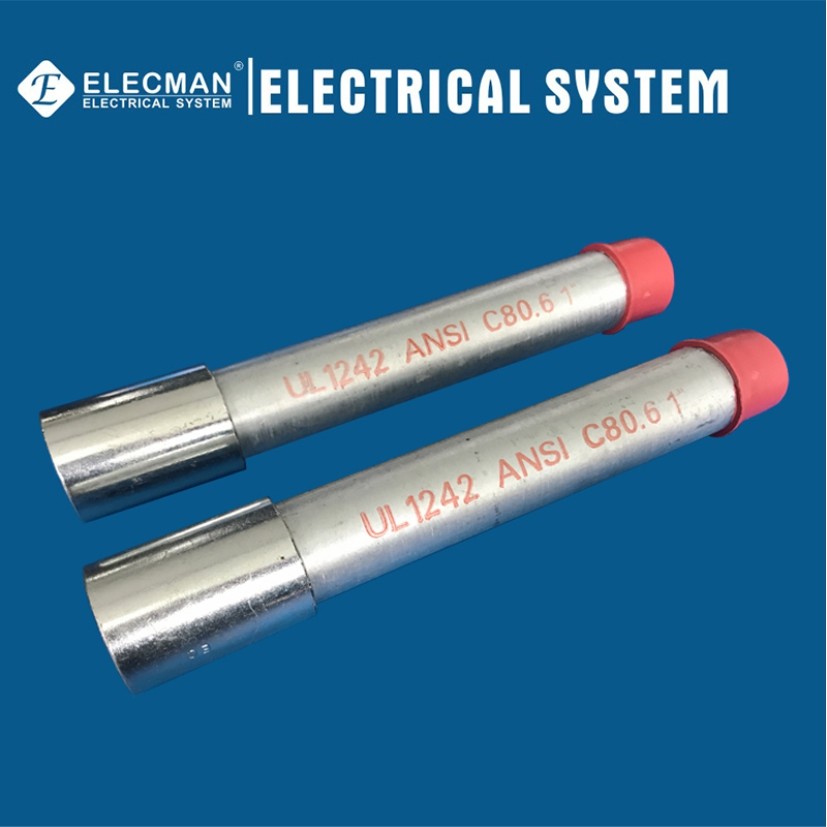

UL1242 1 Inch IMC Intermediate Metal Conduit Tube Pipe

ELECMAN ® UL1242 1 Inch Hot Dipped Galvanized IMC Steel Pipe Pre-Galvanized IMC Tube

Applications

ELECMAN® UL1242 1 inch hot dipped galvanized IMC steel pipe pre-galvanized IMC tube is precision manufactured for economical protection and long lasting value for the electrical raceway system. Manufactured from premium, work hardened steel combining electrical and mechanical performance with ductility. IMC conduit is resistant to impact and is easy to cut, bend and join for smooth, continuous raceways. IMC conduit is as strong, lighter in weight, and less expensive than Rigid conduits.

Features

• Intermediate metal conduit (IMC conduit) is threaded on both ends.
• Intermediate metal conduit (IMC conduit) removes any sharp or rough edge to protect the cables when installations.
• The outside is galvanized for corrosion protection and the inside has an approved corrosion-resistant organic coating.
• High strength ductile steel for long life and easy bending.
• Smooth, continuous raceway for fast wire pulling.
• Protects insulated electrical conductors and cables from magnetic fields, impact damage and crushing.
• IMC conduit connects with threaded type connectors for indoor and outdoor use.

Certifications and Compliances

ELECMAN ® UL1242 1 inch hot dipped galvanized IMC steel pipes shall be carbon steel, electrically welded, galvanized and produced to the following specifications:

• American National Standards Institute, Inc.-ANSI C80.6.
• Underwriters Laboratories Standard for Electrical Metallic Tubing.-UL1242.

Specification Data

ELECMAN ® UL1242 1 inch hot dipped galvanized IMC steel pipes are listed to UL Safety Standard 1242 and manufactured in accordance with ANSI C80.6. details shall accord with Table 1.

Raw Material

ELECMAN ® Intermediate Metal Conduit (IMC) is produced from Carbon structural steel (Q195).

Chemical Composition

Steel type and chemical composition (melting analysis) shall accord with Table 2.

Manufacturing Process

ELECMAN ® Intermediate Metal Conduit (IMC) is manufactured according to the following production process:

Quality Control

Every ELECMAN people know deeply the core value of ELECMAN is to provide high quality products to customers, that is why ELECMAN QC departments have very strict quality controlling process, from raw material to products, ELECMAN QC department supervise every process, make sure every process follow the standard, for IMC conduits, QC department need to inspect the dimensions, welding line, zinc coatings and bending feature.

Packing Information

IMC conduits are packed in bundles with woven bag, we also can put customers’ sticker on pipes, on woven bag, we will put a big sticker with detailed information for customers to distinguish different sizes. For regular packing information, please check the Table 2.
