| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | RSC |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Bundles with Woven Bag |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Carbon Steel (Q195) | Surface Finish: | Hot Dipped Galvanized |
|---|---|---|---|
| Type: | Thick-Wall, Threaded | Size: | 1/2" - 6" |
| Section Shape: | Round | IP Rating: | IP68 |
| High Light: | Rigid Steel Conduit IP68,UL6 2 Rigid Steel Conduit,Q195 Rigid Steel Conduit |
||

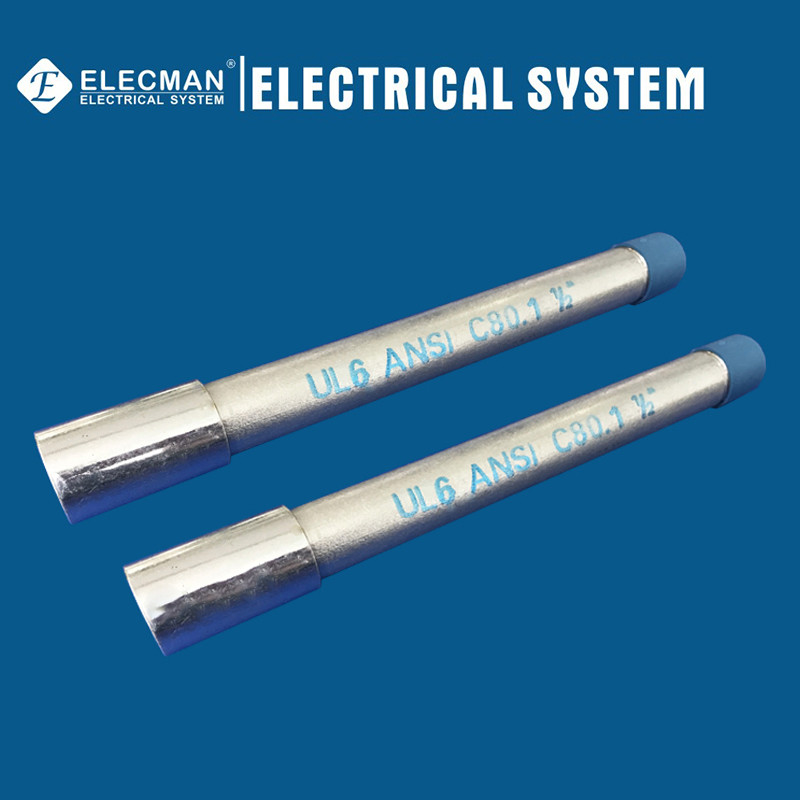

ELECMAN ® UL6 1/2" Rigid Steel Conduit (RSC Conduit) Electrical Cable Conduit Rigid Tubing
Applications
ELECMAN® Rigid Steel Conduit (RSC) is precision manufactured for reliable, long-lasting value and complete protection for your electrical raceway systems. Manufacturing with high-strength steel allows our RSC to be damage resistant while also allowing bending flexibility to meet your installation needs. Our rigid metal conduit is hot-dipped galvanized with a smooth interior and exterior allowing for easy pulling of wires during installation.
Features
Certifications and Compliances
ELECMAN® UL6 ANSI 80.1 Rigid steel conduits shall be carbon steel, electrically welded, galvanized and produced to the following specifications:
Specification Data
ELECMAN® UL6 ANSI 80.1 Rigid steel conduits are listed to UL Safety Standard 6 and manufactured in accordance with ANSI C80.6. details shall accord with Table 1.
| Table 1 | |||||||
| CAT # | Trade size | Outside Diameter | Wall Thickness | Length | |||
| Inch | mm | Inch | mm | Feet | mm | ||
| RSC050 | 1/2" | 0.840 | 21.34 | 0.104 | 2.64 | 10 | 3050 |
| RSC075 | 3/4" | 1.050 | 26.67 | 0.107 | 2.72 | 10 | 3050 |
| RSC100 | 1" | 1.315 | 33.40 | 0.126 | 3.20 | 10 | 3050 |
| RSC125 | 1-1/4" | 1.660 | 42.16 | 0.133 | 3.38 | 10 | 3050 |
| RSC150 | 1-1/2" | 1.900 | 48.26 | 0.138 | 3.51 | 10 | 3050 |
| RSC200 | 2" | 2.375 | 60.33 | 0.146 | 3.71 | 10 | 3050 |
| RSC250 | 2-1/2" | 2.875 | 73.03 | 0.193 | 4.90 | 10 | 3050 |
| RSC300 | 3" | 3.500 | 88.90 | 0.205 | 5.21 | 10 | 3050 |
| RSC350 | 3-1/2" | 4.000 | 114.30 | 0.215 | 5.46 | 10 | 3050 |
| RSC400 | 4" | 4.500 | 114.30 | 0.225 | 5.72 | 10 | 3050 |
| RSC500 | 5" | 5.563 | 141.30 | 0.245 | 6.22 | 10 | 3050 |
| RSC600 | 6" | 6.625 | 168.30 | 0.268 | 6.80 | 10 | 3050 |
| Notes: Applicable tolerance | |||||||
| Length: 10ft ±1/5in. 3050mm ±5.08mm. | |||||||
| Outside Diameter:1/2" to 2 " ± 0.015 in.(21.3mm to 60.3mm ± 0.38 mm). 2-1/2" to 4" ± 0.025in. (73mm ± 0.64mm). 5" to 6" ± 1%. |
|||||||
Raw Material
ELECMAN ® Rigid Steel Conduit (RSC) is produced from Carbon structural steel (Q195).
Chemical Composition
Steel type and chemical composition (melting analysis) shall accord with Table 2.
| Table 2 | |||||||
| Type | Grade | Chemical composition,% | Deoxidization Method | ||||
| C | Mn | Si | S | P | |||
| Maximum | |||||||
| Q195 | - | 0.06-0.12 | 0.25-0.50 | 0.3 | 0.05 | 0.045 | F |
Manufacturing Process
ELECMAN ® Rigid Steel Conduit (RSC) is manufactured according to the following production process:
Quality Control
Every ELECMAN people know deeply the core value of ELECMAN is to provide high quality products to customers, that is why ELECMAN QC departments have very strict quality controlling process, from raw material to products, ELECMAN QC department supervise every process, make sure every process follow the standard, for RSC conduit, QC department need to inspect the dimensions, welding line, zinc coatings and bending feature.
Packing Information
RSC conduits are packed in bundles with woven bag, we also can put customers’ sticker on pipes, on woven bag, we will put a big sticker with detailed information for customers to distinguish different sizes. For regular packing information, please check the Table 3.
| Table 3 | ||||||
| CAT # | Trade size | O.D. | Thickness | Weight | Packing | |
| mm | mm | kgs | pcs/small bundle | small bundle/big bundle | ||
| RSC050 | 1/2" | 21.34 | 2.64 | 3.479 | 1 | 169 |
| RSC075 | 3/4" | 26.67 | 2.72 | 4.419 | 1 | 127 |
| RSC100 | 1" | 33.40 | 3.20 | 6.769 | 1 | 91 |
| RSC125 | 1-1/4" | 42.16 | 3.38 | 9.472 | 1 | 61 |
| RSC150 | 1-1/2" | 48.26 | 3.51 | 10.939 | 1 | 37 |
| RSC200 | 2" | 60.33 | 3.71 | 14.873 | 1 | 37 |
| RSC212 | 2-1/2" | 73.03 | 4.90 | 23.184 | 1 | 19 |
| RSC300 | 3" | 88.90 | 5.21 | 29.921 | 1 | 19 |
| RSC350 | 3-1/2" | 101.60 | 5.46 | 39.484 | 1 | 15 |
| RSC400 | 4" | 114.30 | 5.72 | 42.942 | 1 | 10 |
| RSC500 | 5" | 141.30 | 6.22 | 63.194 | 1 | 6 |
| RSC600 | 6" | 168.30 | 6.80 | 82.599 | 1 | 6 |
| Note: Can be packaged according to the customer's packing requirements | ||||||
