| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Model Number: | SN |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Corrugated Carton |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Low Carbon Steel | Surface Finish: | Zinc Plated, Hot-Dipped Galvanized |
|---|---|---|---|
| Type: | With Stud Nut | Stud Size: | M10 * 40mm |
| Connection: | Common Bolt | Color: | Sliver |
| High Light: | M10 Strut Channel Nuts,UNI Strut Channel Nuts,M10 strut nut without spring |
||

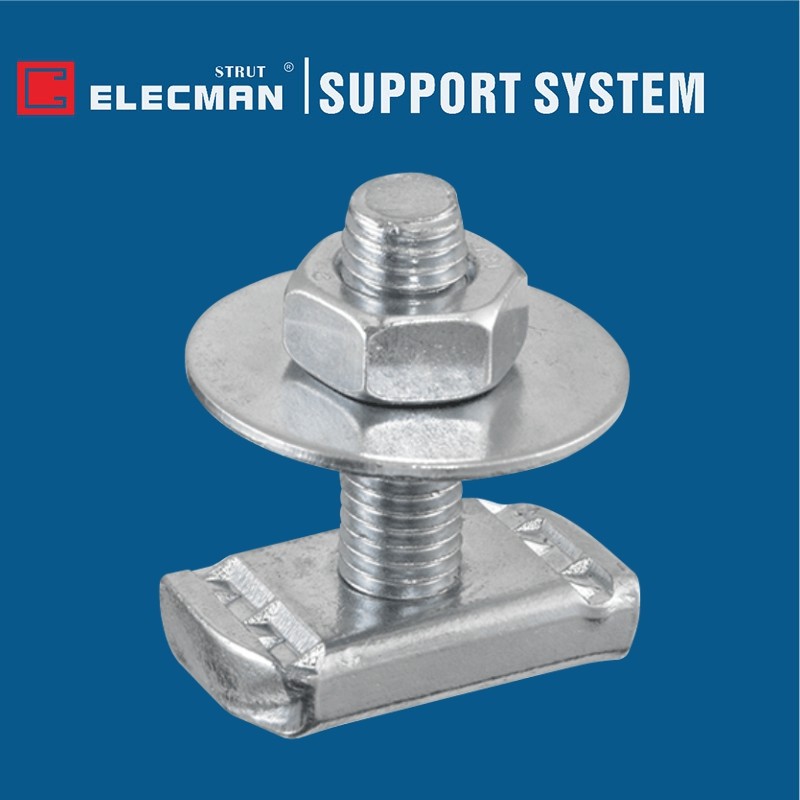

ELECMAN ® Galvanized Steel Stud Nut For UNI Channels With M10 * 40mm Threaded Stud
Applications
ELECMAN ® Galvanized steel stud nut for UNI channels is completed with M10 hex nut & 30 * 1.5mm round washer, and M10 channel nut fixed to a M10 * 40mm threaded stud.Compatible with all type strut channel.
Features
Specification Data
ELECMAN provides full size galvanized steel stud nuts for UNI channels.
| Stud Nut for UNI Channels | |||
| METRIC THREAD | |||
| CAT# | Trade Size | Length(L) | Diameter(D) |
| SN-M8 | M8 | 15.5mm | 30mm |
| SN-M8 | M8 | 25.5mm | 40mm |
| SN-M8 | M8 | 35.5mm | 50mm |
| SN-M8 | M8 | 45.5mm | 60mm |
| SN-M8 | M8 | 60.5mm | 75mm |
| SN-M8 | M8 | 85.5mm | 100mm |
| SN-M10 | M10 | 13mm | 30mm |
| SN-M10 | M10 | 23mm | 40mm |
| SN-M10 | M10 | 33mm | 50mm |
| SN-M10 | M10 | 43mm | 60mm |
| SN-M10 | M10 | 68mm | 75mm |
| SN-M10 | M10 | 83mm | 100mm |
| SN-M12 | M12 | 11mm | 30mm |
| SN-M12 | M12 | 21mm | 40mm |
| SN-M12 | M12 | 31mm | 50mm |
| SN-M12 | M12 | 41mm | 60mm |
| SN-M12 | M12 | 56mm | 75mm |
| SN-M12 | M12 | 81mm | 100mm |
| SN-M16 | M16 | 40mm | 63mm |
| SN-M16 | M16 | 79mm | 102mm |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the plugs body is made of high quality brass, every parts of the plugs are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time. For internal packing, use small carton boxes or self sealing plastic bag, for external packing, use good quality corrugated carton. ELECMAN can follow any requirement of customers.
