| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Model Number: | RN |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Corrugated Carton |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Low Carbon Steel/Stainless Steel | Surface Finish: | Zinc Plated, Hot-Dipped Galvanized |
|---|---|---|---|
| Type: | Regular Spring Type | Size: | 1/4" - 3/4" |
| Connection: | Common Bolt | Color: | Sliver |
| High Light: | Zinc Plated Strut Channel Nuts,Strut Channel Nuts With Spring,Galvanized strut spring nuts |
||

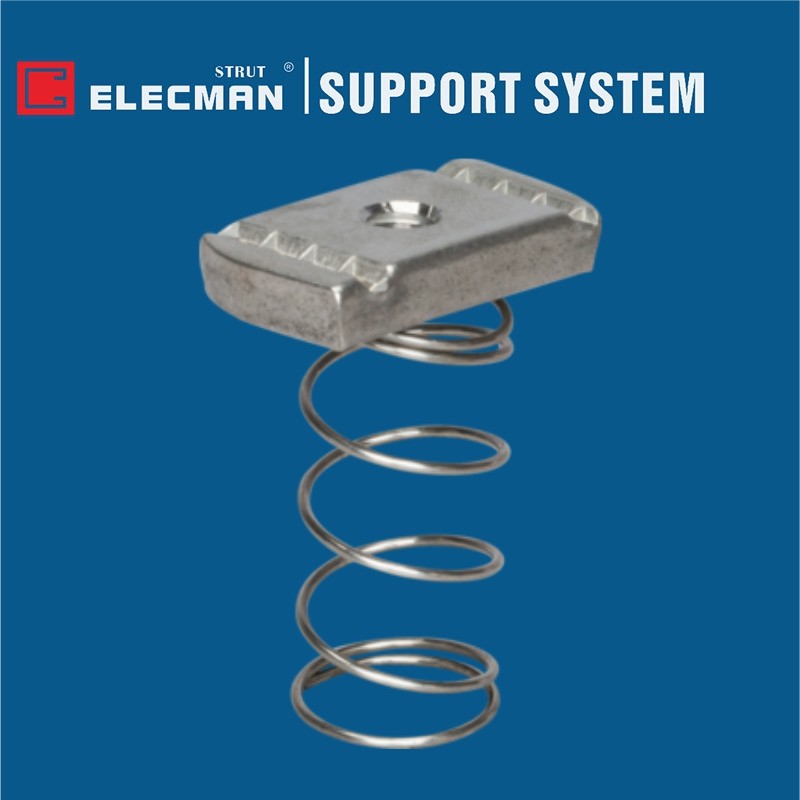

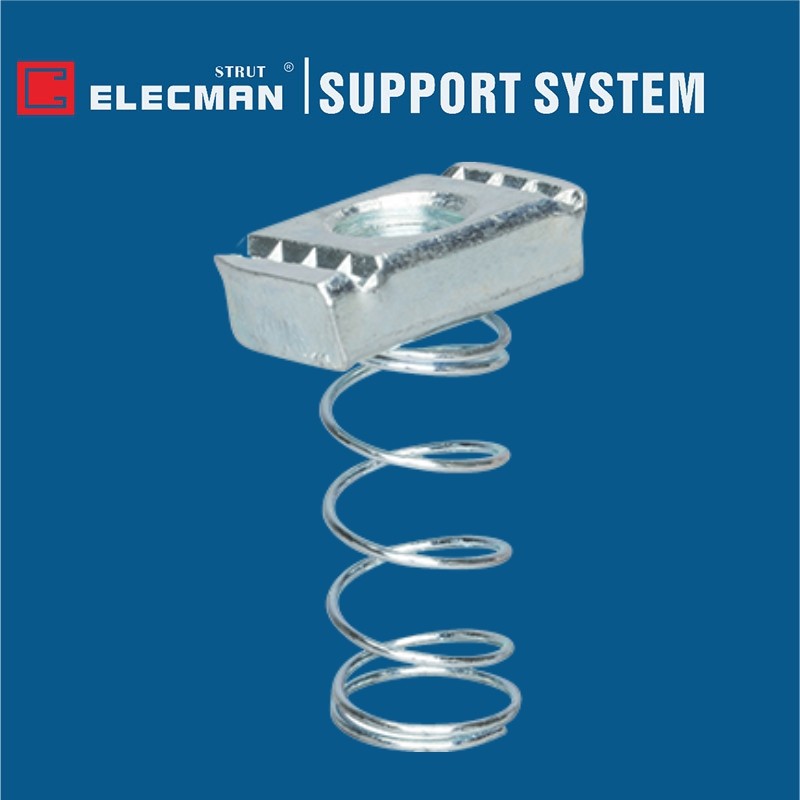

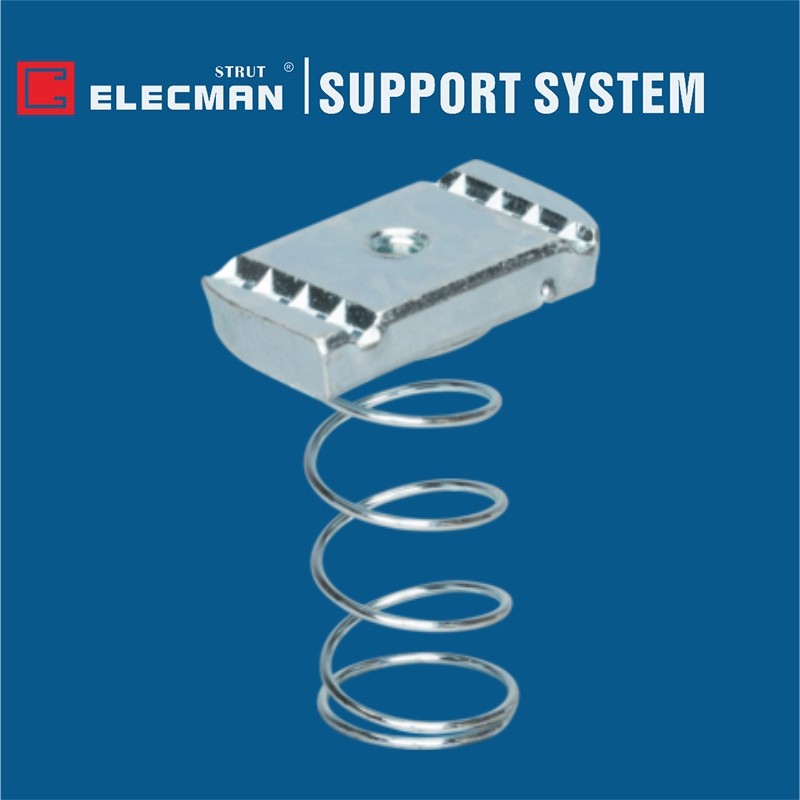

ELECMAN ® Galvanized Steel Strut Channel Clamping Nut With Regular Spring
Applications
ELECMAN ® Galvanized steel strut channel clamping nut with regular springs are one of the main components of metal framing system.it is designed to provide essential gripping powder and ease during installation.Channel nuts are press formed,machined and hardened from steel which meets the requirements of ASTM.
Features
Specification Data
ELECMAN provides full size galvanized steel strut channel clamping nut with regular spring.
| Channel Nut with Regular Spring | |||||
| CAT# | Trade Size | Threaded Type | Length(A) | Width(B) | Thickness(C) |
| RN14 | 1/4" | UNC | 34.5mm | 19mm | 6mm |
| RN516 | 5/16" | UNC | 34.5mm | 19mm | 6mm/8mm |
| RN38 | 3/8" | UNC | 34.5mm | 19mm | 8mm/9mm/11mm |
| RN12 | 1/2" | UNC | 34.5mm | 19mm | 8mm/9mm/11mm |
| RN58 | 5/8" | UNC | 34.5mm | 30mm | 11mm/12mm |
| RN34 | 3/4" | UNC | 34.5mm | 30mm | 11mm/12mm |
| RN78 | 7/8" | UNC | 34.5mm | 30mm | 11mm/12mm |
| CAT# | Trade Size | Threaded Type | Length(A) | Width(B) | Thickness(C) |
| RN-M6 | M6 | Metric | 34.5mm | 19mm | 6mm |
| RN-M8 | M8 | Metric | 34.5mm | 19mm | 6mm/8mm |
| RN-M10 | M10 | Metric | 34.5mm | 19mm | 8mm/9mm |
| RN-M12 | M12 | Metric | 34.5mm | 19mm | 8mm/9mm/11mm |
| RN-M14 | M14 | Metric | 34.5mm | 30mm | 11mm/12mm |
| RN-M16 | M16 | Metric | 34.5mm | 30mm | 11mm/12mm |
| RN-M18 | M18 | Metric | 34.5mm | 30mm | 11mm/12mm |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the plugs body is made of high quality brass, every parts of the plugs are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time. For internal packing, use small carton boxes or self sealing plastic bag, for external packing, use good quality corrugated carton. ELECMAN can follow any requirement of customers.
