Zinc Plated Galvanized Steel Strut Channel Nuts With Long Spring

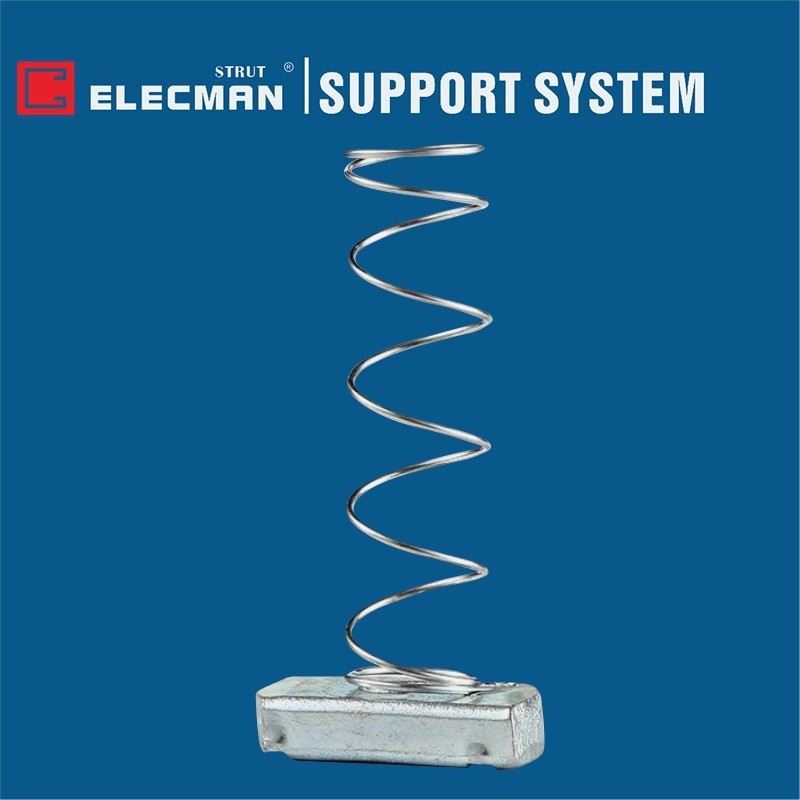

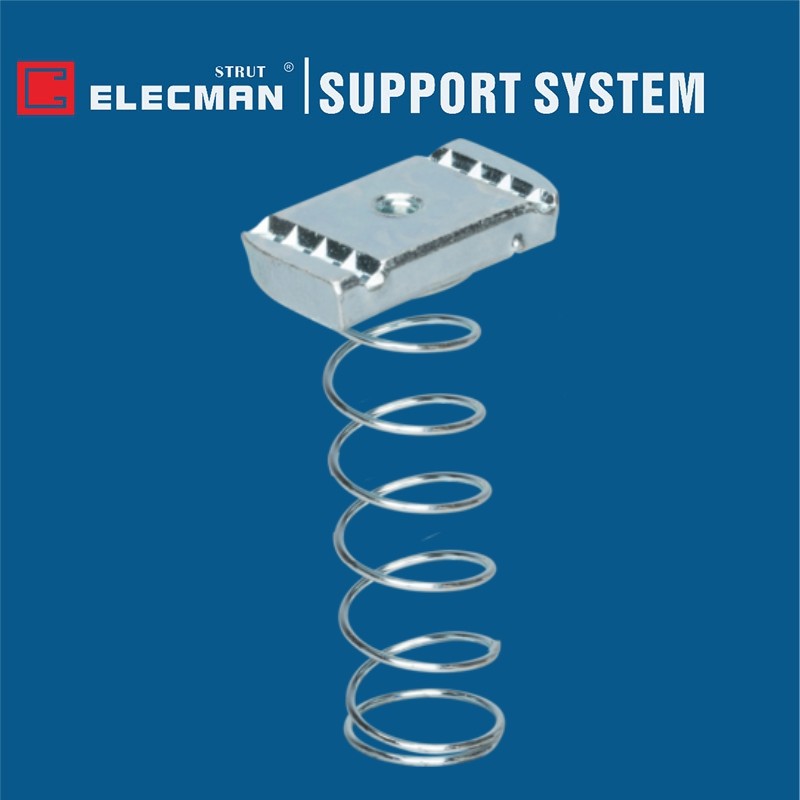

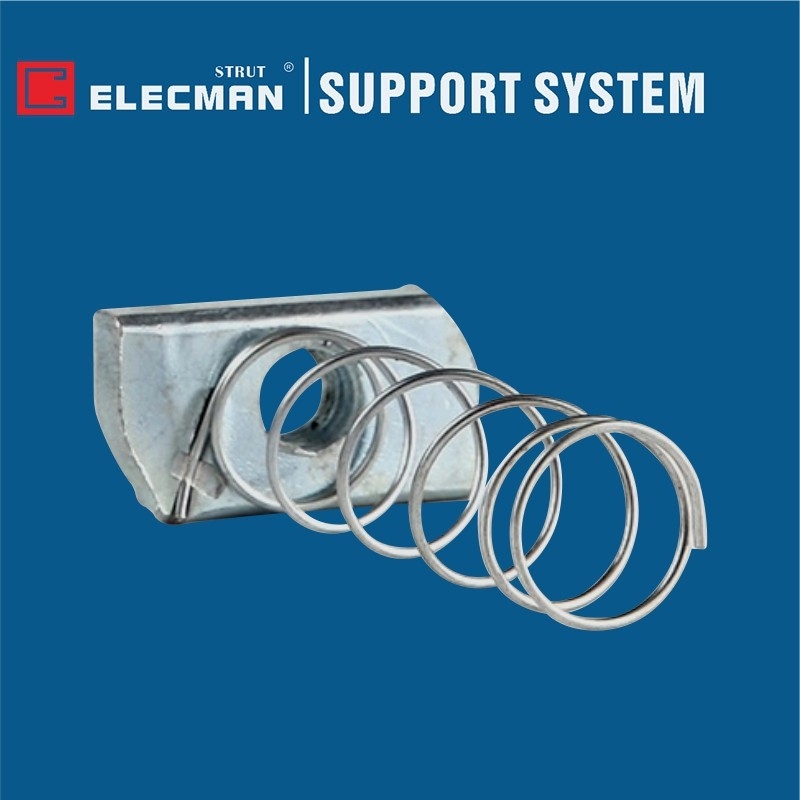

ELECMAN ® Galvanized Steel Strut Channel Clamping Nut With Long Spring

Applications

ELECMAN ® Galvanized steel strut channel clamping nut with long springs are designed to fit securly within 41x82 and 41x62 strut channel. The long spring provides gripping strength to hold the nut in place during installation. Strut nuts with spring ensure a more precise, secure fit that won't budge. Easily mount, brace, support, & connect lightweight structural loads

Features

• Used with ES-100 and ES-150 strut channels.
• Provides resistance to pull-out and side slip.
• Alternate teeth are spaced and designed to develop a wedging action that increases with pressure or load.
• Channel nuts are rectangular with the ends shaped to allow a quarter turn crosswise in the framing slot after inserting through the opening in the channel and to prevent any further turning of the nut.
• Hot-dipped galvanized channel nuts provide the best corrosion resistance for more taxing environments and improved longevity.
• Two serrated grooves in the top of the nut engage the inturned edges of the channel and, after bolting is done, will prevent any lengthwise movement of the bolt and nut within the framing member.

Specification Data

ELECMAN provides full size galvanized steel strut channel clamping nut with long spring.

Quality Control

ELECMAN QC department pay much attention to controlling the quality, the main part of the plugs body is made of high quality brass, every parts of the plugs are produced according to the high standard.

Packing Information

Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time. For internal packing, use small carton boxes or self sealing plastic bag, for external packing, use good quality corrugated carton. ELECMAN can follow any requirement of customers.
