PA66 Nylon Plastic Wire Cable Zip Tie Self-Locking Type

Basic Information
Place of Origin: China
Brand Name: ELECMAN
Certification: UL
Model Number: NCT
Minimum Order Quantity: 100 Pcs
Price: Negotiate
Packaging Details: Packed in Carton Boxes
Delivery Time: 30 Days
Payment Terms: L/C, T/T
Supply Ability: 10000 Pcs/Day
Material: Nylon(PA66) Surface Finish: Natural
Type: Self-Locking Type Size: 80*2.5mm ~ 760*11mm
Color: Can Be Customized Temperature: -30~85℃

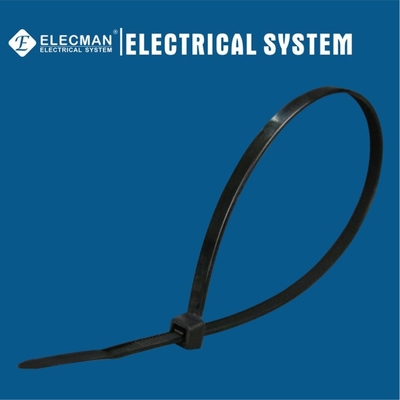

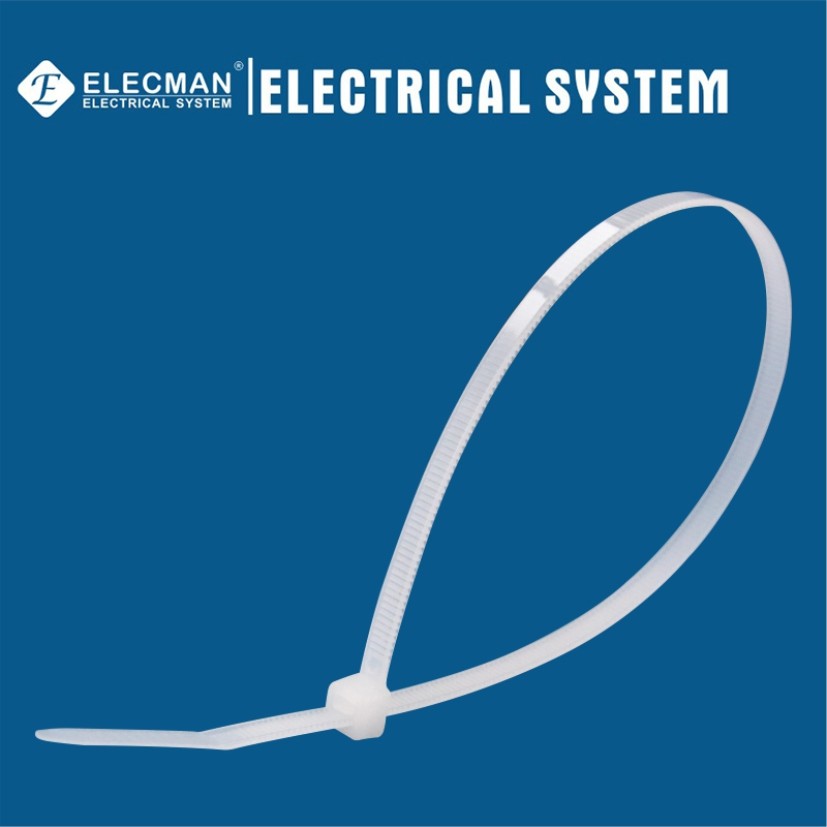

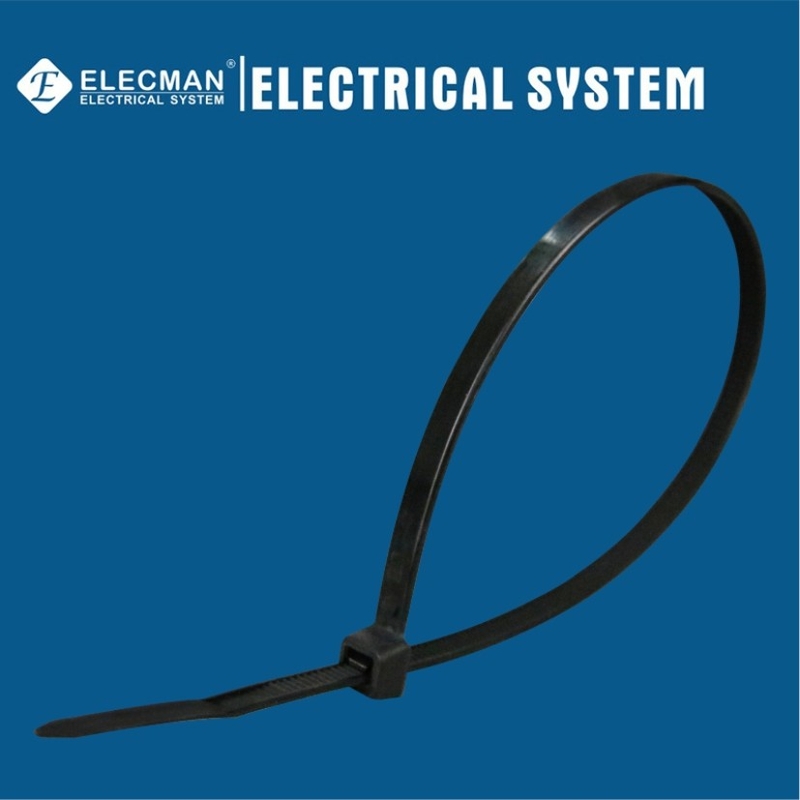

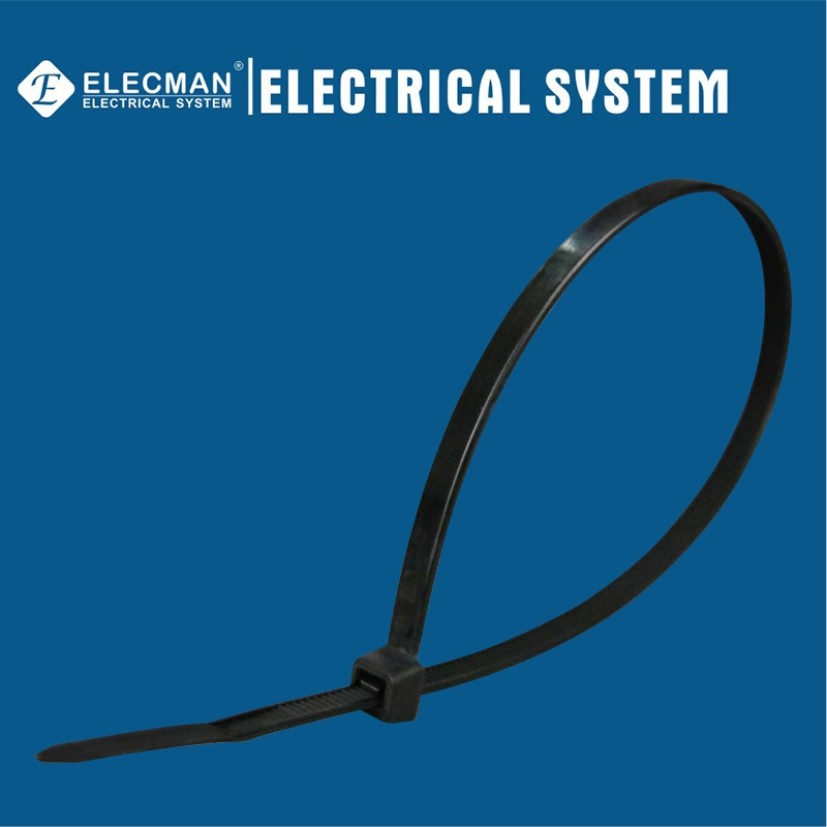

ELECMAN ® PA66 Nylon Plastic Wire Cable Zip Tie Self-Locking Type



Applications



ELECMAN® PA66 nylon plastic wire cable zip tie self-locking type are widely used to bundle cable and wire or other things in the industry of electrical&electronic, lighting, hardware, pharmaceutical, chemical, computer etc.



Features





PA66 Nylon Plastic Wire Cable Zip Tie Self-Locking Type 0



Specification Data



ELECMAN provides all size PA66 nylon plastic wire cable zip tie self-locking type, from 80*2.5mm to 760*11mm.



PA66 Nylon Plastic Wire Cable Zip Tie Self-Locking Type 1



Size Length Width
(mm)
Max.Bundle Dia.
(mm)
Min Tensile Strength
Inch mm lbs kgs
2.5*80mm 3-3/16" 80 2.5 16 18 8
2.5*100mm 4" 100 2.5 23 18 8
2.5*120mm 4-3/4" 120 2.5 27 18 8
2.5*150mm 6" 150 2.5 36 18 8
2.5*160mm 6-1/4" 160 2.5 39 18 8
2.5*200mm 8" 200 2.5 50 18 8
3.5*100mm 4" 100 3.5 21 40 18
3.5*120mm 4-3/4" 120 3.5 27 40 18
3.5*150mm 6" 150 3.5 38 40 18
3.5*180mm 7" 180 3.5 46 40 18
3.5*200mm 8" 200 3.5 52 40 18
3.5*250mm 10" 250 3.5 65 40 18
3.5*300mm 11-5/8" 300 3.5 80 40 18
3.5*370mm 14-1/2" 370 3.5 100 40 18
4.8*100mm 4" 100 4.8 23 50 22
4.8*120mm 4-3/4" 120 4.8 27 50 22
4.8*160mm 6-1/4" 160 4.8 38 50 22
4.8*185mm 7" 185 4.8 42 50 22
4.8*200mm 8" 200 4.8 50 50 22
4.8*250mm 10" 250 4.8 65 50 22
4.8*280mm 11" 280 4.8 70 50 22
4.8*300mm 11-5/8" 300 4.8 82 50 22
4.8*350mm 13-3/4" 350 4.8 98 50 22
4.8*370mm 15" 370 4.8 105 50 22
4.8*400mm 15-3/4" 400 4.8 115 50 22
4.8*430mm 17-3/4" 430 4.8 125 50 22
4.8*450mm 17.7" 450 4.8 132 50 22
4.8*500mm 19-11/16" 500 4.8 148 50 22
4.8*530mm 20" 530 4.8 155 50 22
7.6*150mm 6" 150 7.6 35 119 53
7.6*200mm 8" 200 7.6 50 119 53
7.6*250mm 10" 250 7.6 66 119 53
7.6*300mm 11-5/8" 300 7.6 82 119 53
7.6*350mm 13-3/4" 350 7.6 98 119 53
7.6*370mm 14-1/2" 370 7.6 105 119 53
7.6*400mm 15-3/4" 400 7.6 114 119 53
7.6*450mm 17-3/4" 450 7.6 130 119 53
7.6*500mm 19-11/16" 500 7.6 146 119 53
7.6*550mm 21-4/5" 550 7.6 160 119 53
8.8*400mm 15-3/4" 400 8.8 114 180 80
8.8*450mm 17-3/4" 450 8.8 126 180 80
8.8*500mm 19-11/16" 500 8.8 140 180 80
8.8*550mm 21-11/16" 550 8.8 160 180 80
8.8*610mm 23-5/8" 610 8.8 178 180 80
8.8*650mm 25-9/16" 650 8.8 190 180 80
8.8*760mm 29-1/2" 760 8.8 226 180 80
8.8*810mm 31-1/2" 810 8.8 241 180 80
8.8*920mm 36-1/4" 920 8.8 276 180 80
8.8*1020mm 40-1/6" 1020 8.8 295 180 80
8.8*1200mm 48" 1200 8.8 345 180 80
11*650mm 25-9/16" 650 11 190 250 114
11*760mm 29-9/16" 760 11 226 250 114



Quality Control



ELECMAN QC department pay much attention to controlling the quality, the main part of the gland body is made of high quality stainless steel, the claw is made of nylon, every parts of the gland are produced according to the high standard.



PA66 Nylon Plastic Wire Cable Zip Tie Self-Locking Type 2



Packing Information



Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time. For internal packing, use small carton boxes or self sealing plastic bag, for external packing, use good quality corrugated carton. ELECMAN can follow any requirement of customers.



PA66 Nylon Plastic Wire Cable Zip Tie Self-Locking Type 3
