| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | WCG |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Carton Boxes |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Stainless Steel&Nylon | Surface Finish: | Natural |
|---|---|---|---|
| Type: | Threaded Type | Size: | M8-M150;PG7-PG63;NPT1/4-NPT3;G1/4 -G3 |
| Color: | Sliver | Connection: | Cables To Box |

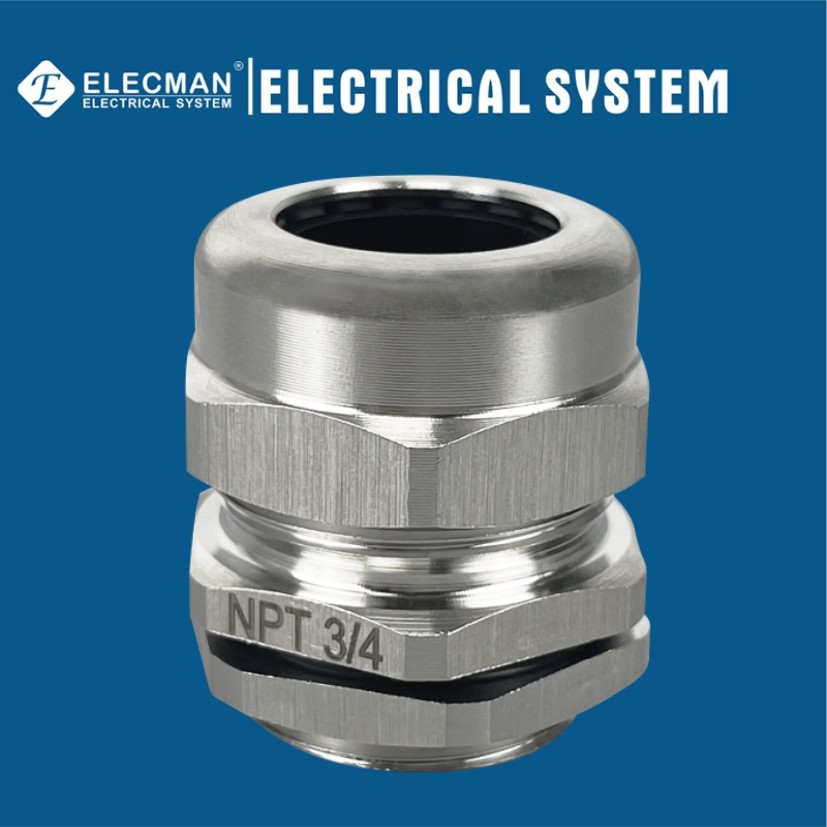

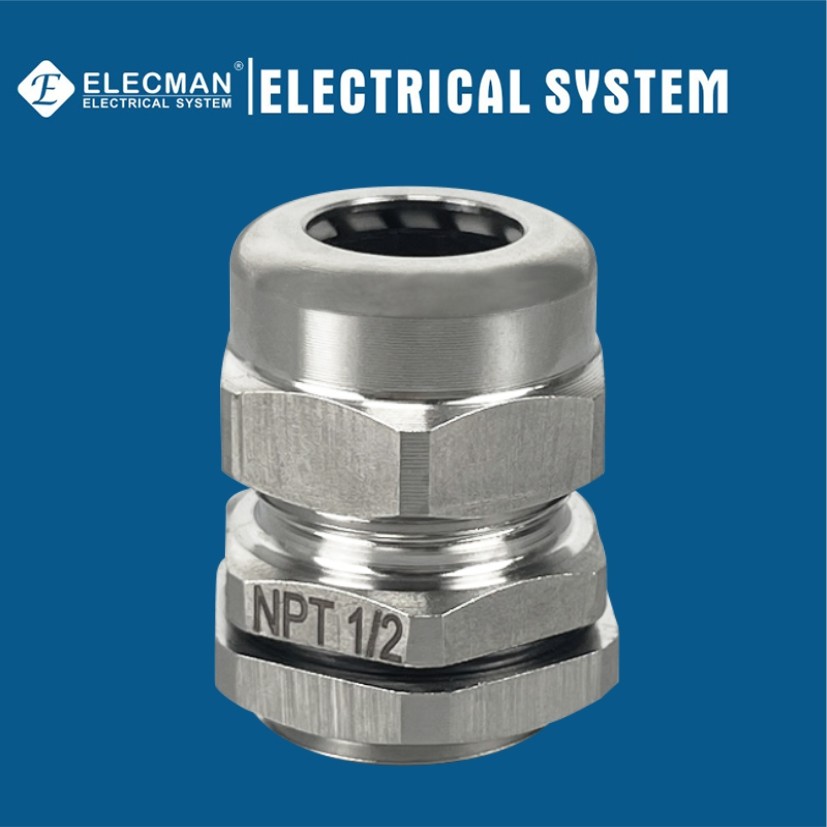

ELECMAN ® SS304/SS316 Stainless Steel Waterproof Cable Gland Threaded Type
Applications
ELECMAN® Stainless steel waterproof cable glands threaded type are used as a sealing and termination device to ensure that the characteristics of the enclosure which the cable enters can be maintained adequately. Waterproof cable glands joint have all thread types available such as metric, G, PG, and NPT. It could be used in a variety of harsh environments.
Features
Specification Data
ELECMAN provides all size and thread specifications stainless steel waterproof cable glands threaded type, M8-M150; PG7-PG63; NPT1/4-NPT3; G1/4 -G3.
| Waterproof Cable Glands (Thread Specification:M) |
Waterproof Cable Glands (Thread Specification:PG) |
||||
| Size | Applicable Cable | Thread Length | Size | Applicable Cable | Thread Length |
| M8*1.0 | 2-4 | 5 | PG7 | 3-6.5 | 7 |
| M10*1.5 | 3-6.5 | 6.5 | PG9 | 4-8 | 8 |
| M12*1.5 | 3-6.5 | 6.5 | PG11 | 5-10 | 8 |
| M12*1.5 | 4-8 | 7 | PG13.5 | 6-12 | 8 |
| M14*1.5 | 4-8 | 7 | PG16 | 10-14 | 9 |
| M16*1.5 | 4-8 | 8 | PG19 | 10-14 | 9 |
| M16*1.5 | 5-10 | 8 | PG21 | 13-18 | 9 |
| M18*1.5 | 5-10 | 8 | PG25 | 15-22 | 10 |
| M20*1.5 | 6-12 | 8 | PG29 | 18-25 | 11 |
| M22*1.5 | 10-14 | 9 | PG36 | 25-33 | 12 |
| M24*1.5 | 10-14 | 9 | PG42 | 32-38 | 13 |
| M25*1.5 | 10-14 | 9 | PG48 | 37-44 | 14 |
| M25*1.5 | 12-16 | 9 | PG63 | 42-52 | 15 |
| M25*1.5 | 13-18 | 9 | |||
| M27*1.5 | 13-18 | 9 | Waterproof Cable Glands (Thread Specification:NPT) |
||
| M28*1.5 | 13-18 | 9 | |||
| M30*1.5 | 13-18 | 9 | Size | Applicable Cable | Thread Length |
| M32*1.5 | 15-22 | 10 | NPT1/4 | 3-6.5 | 7 |
| M33*1.5 | 15-22 | 10 | NPT3/8 | 4-8 | 8 |
| M36*1.5 | 18-25 | 10 | NPT1/2 | 6-12 | 8 |
| M37*1.5 | 18-25 | 10 | NPT3/4 | 13-18 | 9 |
| M40*1.5 | 18-25 | 11 | NPT1 | 18-25 | 11 |
| M40*1.5 | 22-30 | 11 | NPT1-1/4 | 25-33 | 13 |
| M42*1.5 | 22-30 | 11 | NPT1-1/2 | 32-38 | 14 |
| M47*1.5 | 25-33 | 11 | NPT2 | 37-44 | 14 |
| M48*1.5 | 25-33 | 11 | NPT2-1/2 | 42-52 | 15 |
| M50*1.5 | 32-38 | 12 | NPT3 | 65-70 | 15 |
| M54*1.5 | 32-38 | 12 | |||
| M56*1.5 | 32-38 | 12 | Waterproof Cable Glands (Thread Specification:G) |
||
| M60*1.5 | 37-44 | 13 | |||
| M63*1.5 | 37-44 | 13 | Size | Applicable Cable | Thread Length |
| M64*2.0 | 37-44 | 13 | G1/4 | 3-6.5 | 7 |
| M72*2.0 | 42-52 | 15 | G3/8 | 4-8 | 8 |
| M75*2.0 | 42-52 | 15 | G1/2 | 6-12 | 8 |
| M80*2.0 | 55-56 | 15 | G3/4 | 13-18 | 9 |
| M88*2.0 | 65-70 | 15 | G1 | 18-25 | 11 |
| M100*2.0 | 78-84 | 18 | G1-1/4 | 25-33 | 13 |
| M110*2.0 | 80-90 | 18 | G1-1/2 | 32-38 | 14 |
| M150*2.0 | 110-125 | 18 | G2 | 37-44 | 14 |
| G2-1/2 | 42-52 | 15 | |||
| G3 | 65-70 | 15 | |||
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the gland body is made of high quality stainless steel, the claw is made of nylon, the sealing&sealing ring is made of NBR, every parts of the gland are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time. For internal packing, use small carton boxes or self sealing plastic bag, for external packing, use good quality corrugated carton. ELECMAN can follow any requirement of customers.
