| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | WCG |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Carton Boxes |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Nickel Plated Brass&Nylon | Surface Finish: | Nickel Planted |
|---|---|---|---|
| Type: | Threaded Type | Size: | M8-M150;PG7-PG63;NPT1/4-NPT3;G1/4 -G3 |
| Color: | Sliver | Connection: | Cables To Box |

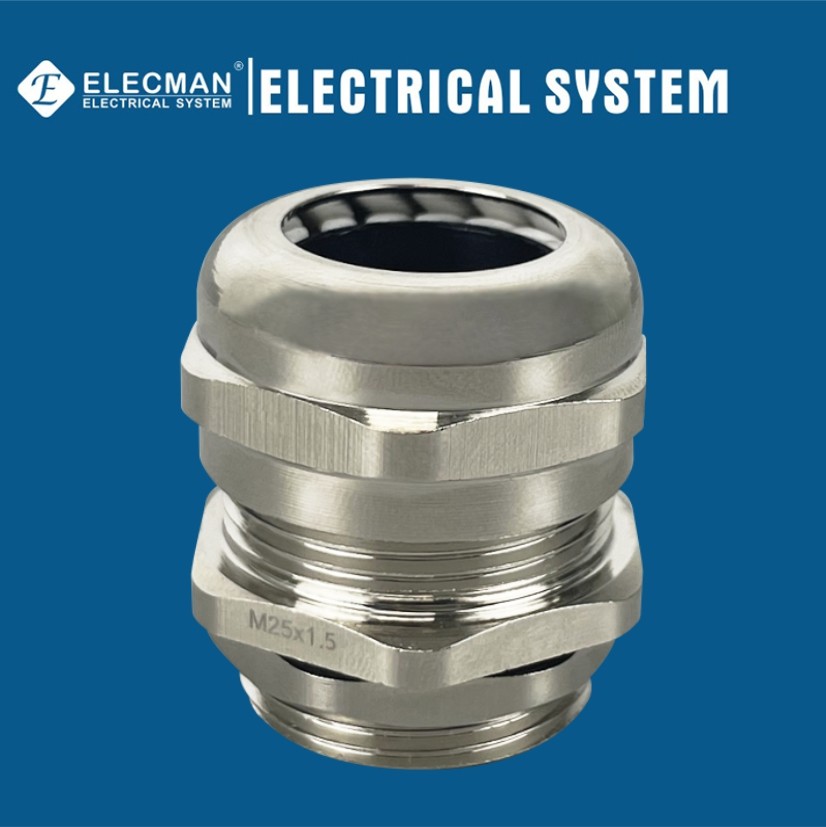

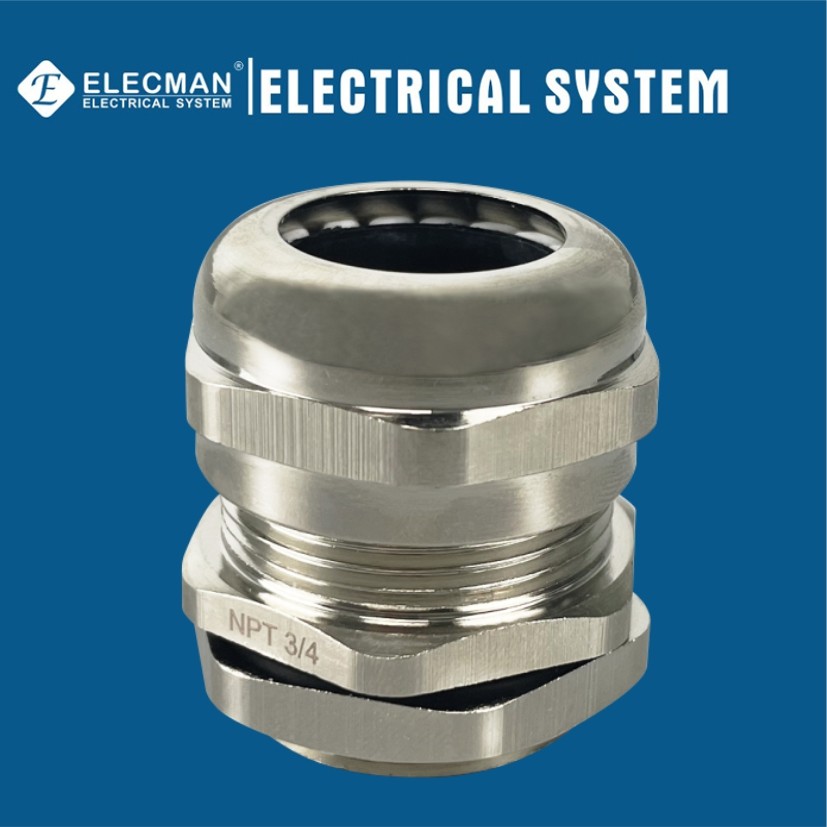

ELECMAN ® Nickel Plated Brass Waterproof Cable Gland Threaded Type
Applications
Features
Specification Data
ELECMAN provides all size and thread specifications nickel plated brass waterproof cable glands threaded type, M8-M150; PG7-PG63; NPT1/4-NPT3; G1/4 -G3.
| Waterproof Cable Glands (Thread Specification:M) |
Waterproof Cable Glands (Thread Specification:PG) |
||||
| Size | Applicable Cable | Thread Length | Size | Applicable Cable | Thread Length |
| M8*1.0 | 2-4 | 5 | PG7 | 3-6.5 | 7 |
| M10*1.5 | 3-6.5 | 6.5 | PG9 | 4-8 | 8 |
| M12*1.5 | 3-6.5 | 6.5 | PG11 | 5-10 | 8 |
| M12*1.5 | 4-8 | 7 | PG13.5 | 6-12 | 8 |
| M14*1.5 | 4-8 | 7 | PG16 | 10-14 | 9 |
| M16*1.5 | 4-8 | 8 | PG19 | 10-14 | 9 |
| M16*1.5 | 5-10 | 8 | PG21 | 13-18 | 9 |
| M18*1.5 | 5-10 | 8 | PG25 | 15-22 | 10 |
| M20*1.5 | 6-12 | 8 | PG29 | 18-25 | 11 |
| M22*1.5 | 10-14 | 9 | PG36 | 25-33 | 12 |
| M24*1.5 | 10-14 | 9 | PG42 | 32-38 | 13 |
| M25*1.5 | 10-14 | 9 | PG48 | 37-44 | 14 |
| M25*1.5 | 12-16 | 9 | PG63 | 42-52 | 15 |
| M25*1.5 | 13-18 | 9 | |||
| M27*1.5 | 13-18 | 9 | Waterproof Cable Glands (Thread Specification:NPT) |
||
| M28*1.5 | 13-18 | 9 | |||
| M30*1.5 | 13-18 | 9 | Size | Applicable Cable | Thread Length |
| M32*1.5 | 15-22 | 10 | NPT1/4 | 3-6.5 | 7 |
| M33*1.5 | 15-22 | 10 | NPT3/8 | 4-8 | 8 |
| M36*1.5 | 18-25 | 10 | NPT1/2 | 6-12 | 8 |
| M37*1.5 | 18-25 | 10 | NPT3/4 | 13-18 | 9 |
| M40*1.5 | 18-25 | 11 | NPT1 | 18-25 | 11 |
| M40*1.5 | 22-30 | 11 | NPT1-1/4 | 25-33 | 13 |
| M42*1.5 | 22-30 | 11 | NPT1-1/2 | 32-38 | 14 |
| M47*1.5 | 25-33 | 11 | NPT2 | 37-44 | 14 |
| M48*1.5 | 25-33 | 11 | NPT2-1/2 | 42-52 | 15 |
| M50*1.5 | 32-38 | 12 | NPT3 | 65-70 | 15 |
| M54*1.5 | 32-38 | 12 | |||
| M56*1.5 | 32-38 | 12 | Waterproof Cable Glands (Thread Specification:G) |
||
| M60*1.5 | 37-44 | 13 | |||
| M63*1.5 | 37-44 | 13 | Size | Applicable Cable | Thread Length |
| M64*2.0 | 37-44 | 13 | G1/4 | 3-6.5 | 7 |
| M72*2.0 | 42-52 | 15 | G3/8 | 4-8 | 8 |
| M75*2.0 | 42-52 | 15 | G1/2 | 6-12 | 8 |
| M80*2.0 | 55-56 | 15 | G3/4 | 13-18 | 9 |
| M88*2.0 | 65-70 | 15 | G1 | 18-25 | 11 |
| M100*2.0 | 78-84 | 18 | G1-1/4 | 25-33 | 13 |
| M110*2.0 | 80-90 | 18 | G1-1/2 | 32-38 | 14 |
| M150*2.0 | 110-125 | 18 | G2 | 37-44 | 14 |
| G2-1/2 | 42-52 | 15 | |||
| G3 | 65-70 | 15 | |||
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the gland body is made of high quality nickel plated brass, the claw is made of nylon, the sealing&sealing ring is made of NBR, every parts of the gland are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time. For internal packing, use small carton boxes or self sealing plastic bag, for external packing, use good quality corrugated carton. ELECMAN can follow any requirement of customers.
