| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | UBC |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Carton Boxes |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Copper Alloy/Brass/Bronze | Surface Finish: | Tin Coated/Copper Coated |
|---|---|---|---|
| Type: | U Bolt Double Plate Type | Size: | 5/8”-1” |
| Color: | Copper Color | Usage: | Earthing Cable Clamp |
| High Light: | Cooper Alloy grounding rod clamp,U Bolt grounding rod clamp,U Bolt ground rod connectors |
||

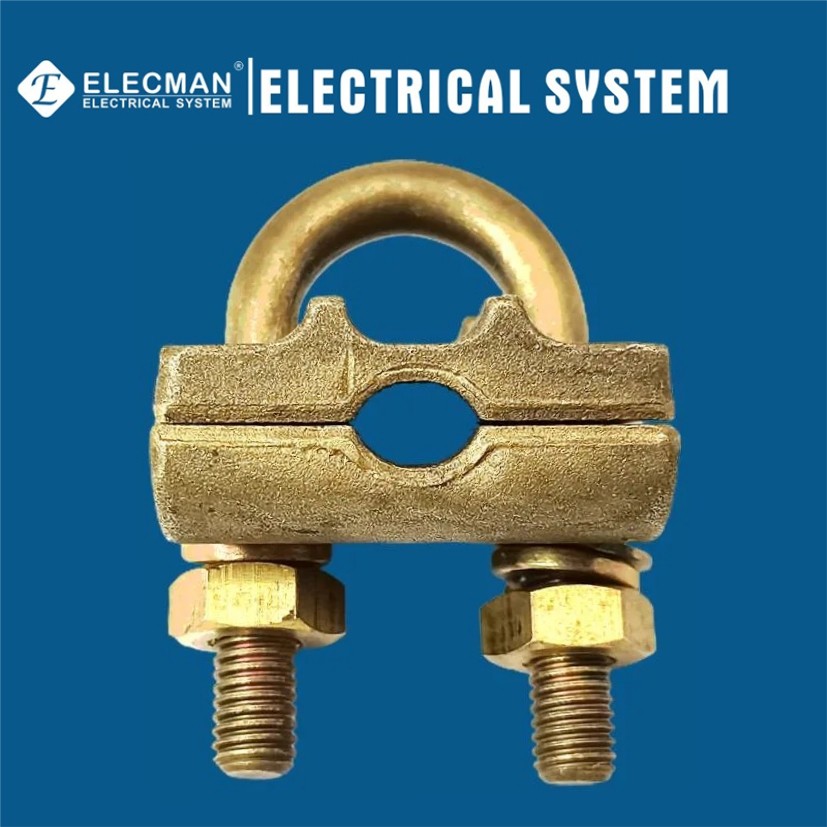

ELECMAN ® Cooper Alloy U Bolt Double Plate Type Grounding Cable Rod Clamp
Applications
ELECMAN® Cooper alloy U bolt double plate type grounding cable rod clamp is used for lightning protection of building, conductor of the fastening and connection of the net work. Use the matched fittings will make the lightning and earthing system easy to install and extend the using life.
Features
Certifications and Compliances
ELECMAN® Cooper alloy U bolt double plate type grounding cable rod clamps shall be produced to the following specification:
Specification Data
ELECMAN provides all size cooper alloy U bolt double plate type grounding cable rod clamps form 5/8” to 1”.
| CAT # | Rod Dia.(mm) | Conductor Range(mm²) |
| UBC058 | 5/8" (16mm) | 16-25 |
| UBC075 | 3/4" (20mm) | 70-185 |
| UBC100 | 1" (25mm) | 150-300 |
| Note: For the size of all wires, if there is no special explanation, all are American Wire Gauge (AWG) | ||
