| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | SBCH |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Carton Boxes |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Copper Alloy/Brass | Surface Finish: | Tin Coated/Copper Coated |
|---|---|---|---|
| Type: | H Type, High Strength | AWG: | 10 To 4/0 |
| Color: | Copper Color | Usage: | Earthing Cable Clamp |
| High Light: | SBCH split bolt connector,H Type split bolt connector,H Type copper split bolt |
||

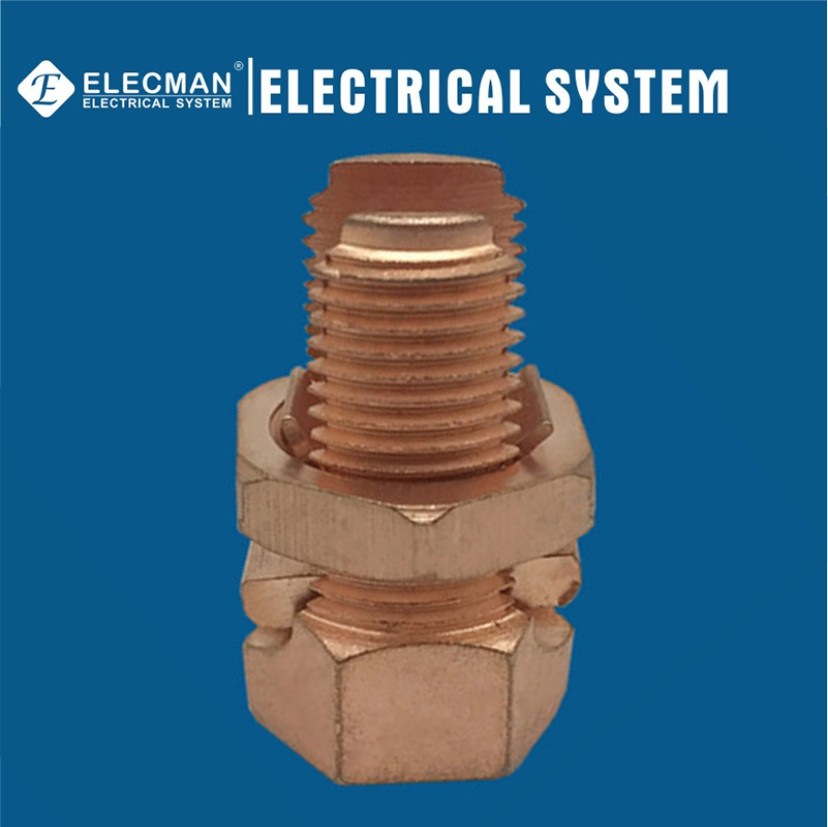

ELECMAN ® Copper Alloy Split Bolt Connector High Strength H Type
Applications
ELECMAN® Copper alloy split bolt connectors high strength H type are used to join two copper wires in power or grounding electrical connection applications. Copper alloy bolt and nut construction provides reliable protection where corrosive elements are present. UL tested for grounding and for direct burial. The split bolt connector has hex design for body and nut allowing a quick installation with wrenches.
Features
Certifications and Compliances
ELECMAN® Copper alloy split bolt connectors high strength H type shall be produced to the following specification:
Specification Data
ELECMAN provides all American Wire Gauge(AWG) copper alloy split bolt connectors high strength H type form 10 to 4/0.
| CAT # | Range of Equal Main & Tap | Min.Tap W/One Max. Main | Wire Diameter Range | Recommended Torque(IN-LB) | ||
| Inch | ||||||
| SBCH-10 | 10Str. - 16Str. | 16Str. | 0.057 - 0.116 | 80 | ||
| SBCH-8 | 8Str. - 12Str. | 14Str. | 0.081 - 0.146 | 80 | ||
| SBCH-6 | 6Sol. - 10Sol. | 10Sol. | 0.116 - 0.184 | 165 | ||
| SBCH-4 | 4Sol. - 8Sol. | 8Sol. | 0.128 - 0.258 | 165 | ||
| SBCH-3 | 2Sol. - 6Sol. | 8Sol. | 0.162 - 0.258 | 275 | ||
| SBCH-2 | 2Str. - 6Sol. | 10Str. | 0.162 - 0.316 | 275 | ||
| SBCH-1/0 | 1/0Str. - 6Sol. | 10Sol. | 0.162 - 0.375 | 385 | ||
| SBCH-2/0 | 2/0Str. - 6Str. | 10Sol. | 0.184 - 0.419 | 385 | ||
| SBCH-3/0 | 3/0Str. - 4Str. | 6Sol. | 0.198 - 0.470 | 500 | ||
| SBCH-4/0 | 250Kcmil - 4Str. | 4Sol. | 0.232 - 0.575 | 650 | ||
| Note: For the size of all wires, if there is no special explanation, all are American Wire Gauge (AWG) | ||||||
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the connector body is made of high quality copper alloy, every part of the connector are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for flexible conduit fittings, ELECMAN provides inner box packing inside the outer box.
