| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | SBCD |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Carton Boxes |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Copper Alloy/Brass | Surface Finish: | Tin Coated/Copper Coated |
|---|---|---|---|
| Type: | With Extra Stud Type | AWG: | 8-6 To 2-1/0 |
| Color: | Copper Color | Usage: | Earthing Cable Clamp |
| High Light: | Copper Alloy Flexible Conduit Fittings,Flexible Conduit Fittings Split Bolt,Conduit split bolt connector |
||

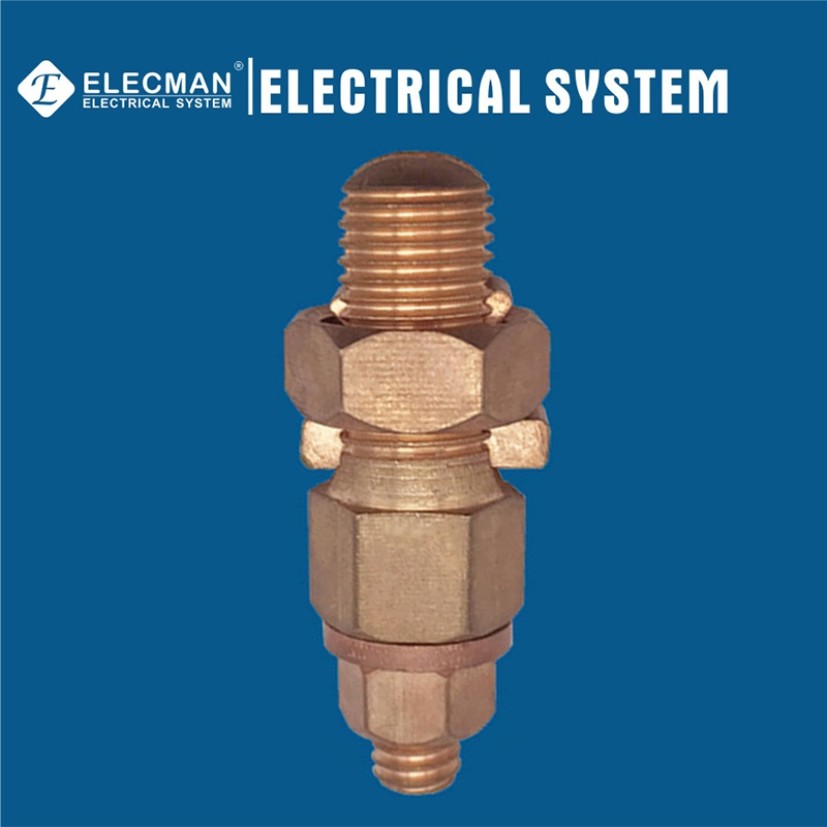

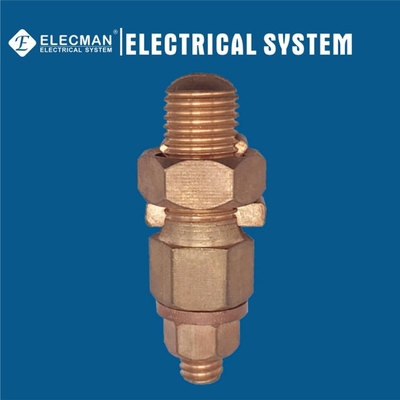

ELECMAN ® Copper Alloy Split Bolt Connector With Extra Stud Type
Applications
ELECMAN® Copper alloy split bolt connectors with extra stud type are used for copper and copper weld wire and rebar connections, the conductor types include: solid, compact, compressed, concentric, also for grounding of steel structures, fence posts and tapping cables from bus bar. The split bolt connector has hex design for body and nut allowing a quick installation with wrenches.
Features
Certifications and Compliances
ELECMAN® Copper alloy split bolt connectors with extra stud type shall be produced to the following specification:
Specification Data
ELECMAN provides all American Wire Gauge(AWG) copper alloy split bolt connectors with extra stud type form 8-6 to 2-1/0.
| CAT # | Conductor Range | Corredera | Wire Diameter Range | ||
| AWG | Inch | ||||
| SBCD-8 | 8 - 6 | 7/32" | 0.129 - 0.184 | ||
| SBCD-6 | 6 - 3 | 1/4" | 0.162 - 0.260 | ||
| SBCD-4 | 3 - 2 | 5/16" | 0.229 - 0.291 | ||
| SBCD-2 | 2 - 1/0 | 3/8" | 0.258 - 0.367 | ||
| Note: For the size of all wires, if there is no special explanation, all are American Wire Gauge (AWG) | |||||
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the connector body is made of high quality copper alloy, every part of the connector are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for flexible conduit fittings, ELECMAN provides inner box packing inside the outer box.
