| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | EFO |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Carton Boxes |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Zinc | Surface Finish: | Natural |
|---|---|---|---|
| Type: | Two Screws Squeeze Type | Size: | 1/2"EMT - 3/8"FMC To 1"EMT - 1"FMC |
| Connection: | Flex(Two Screws Squeeze) To EMT(Set Screw) | Color: | Sliver |
| High Light: | Combination flex to emt coupling,Set Screw flex to emt coupling,1"combination coupling emt to flex |
||

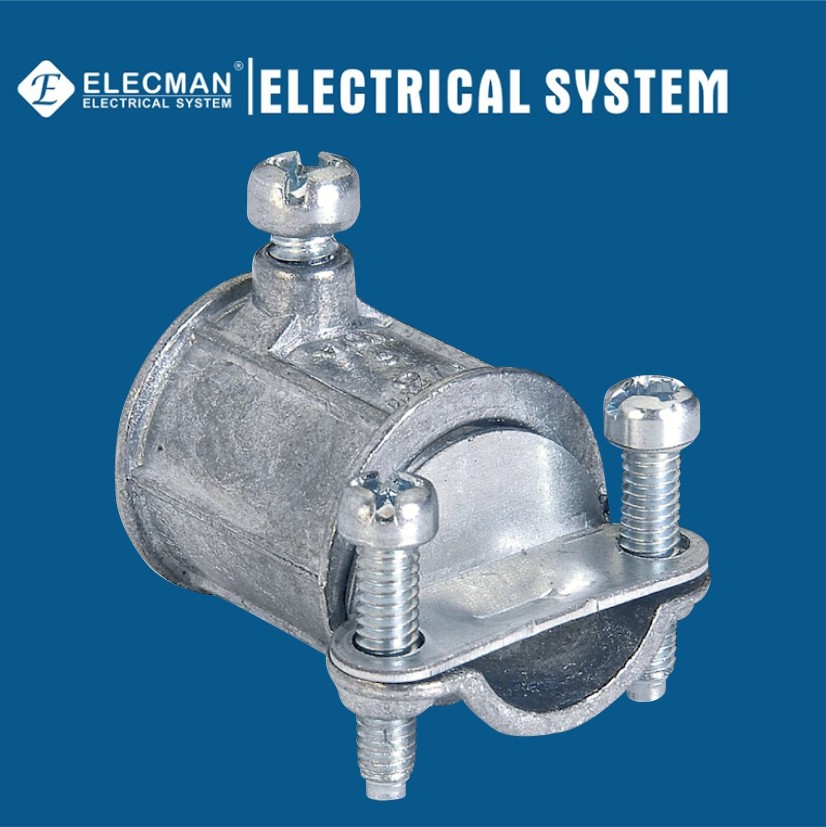

ELECMAN® Zinc Combination Flex(Two Screws Squeeze) to EMT(Set Screw) Coupling
Applications
ELECMAN® Zinc combination flex(two screws squeeze) to EMT(set screw) coupling is made of die-cast zinc for added durability and corrosion resistance. It is used to join EMT conduit to armored cable, metal clad cable or flexible metallic conduit. Coupling is UL Listed.
Features
Certifications and Compliances
ELECMAN® Zinc combination flex(two screws squeeze) to EMT(set screw) couplings shall be produced to the following specification:
Specification Data
ELECMAN provides full size Zinc combination flex(two screws squeeze) to EMT(set screw) couplings from 1/2"EMT-3/8"FMC to 1"EMT-1"FMC.
| CAT # | Trade Size |
| EFO038 | 1/2"EMT - 3/8"FMC |
| EFO050 | 1/2"EMT - 1/2"FMC |
| EFO075 | 3/4"EMT - 3/4"FMC |
| EFO100 | 1"EMT - 1"FMC |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the coupling body is made of high quality zinc, the screws are made of steel, every part of the coupling are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for flex conduit fittings, from 1/2"EMT - 3/8"FMC to 1"EMT - 1"FMC, ELECMAN provides inner box packing inside the outer box.
