| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | SQS |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Carton Boxes |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Zinc | Surface Finish: | Natural |
|---|---|---|---|
| Type: | Straight Type | Size: | 1/2" - 4" |
| Connection: | Flexible Conduit To Box | Color: | Sliver |
| High Light: | Zinc electrical squeeze connector,Straight electrical squeeze connector,Straight flex squeeze connector |
||

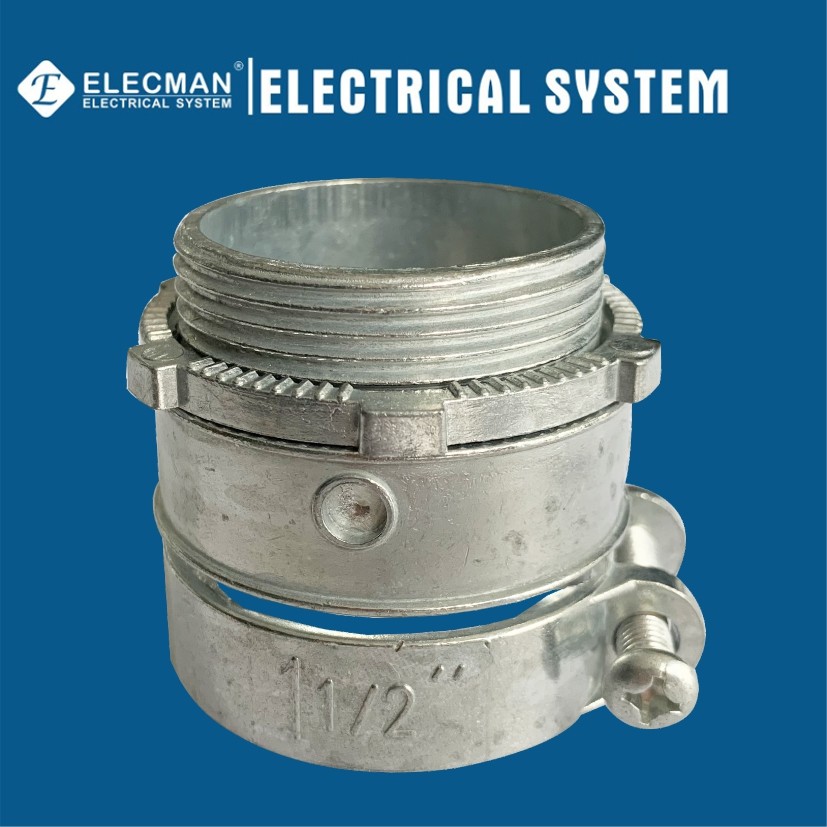

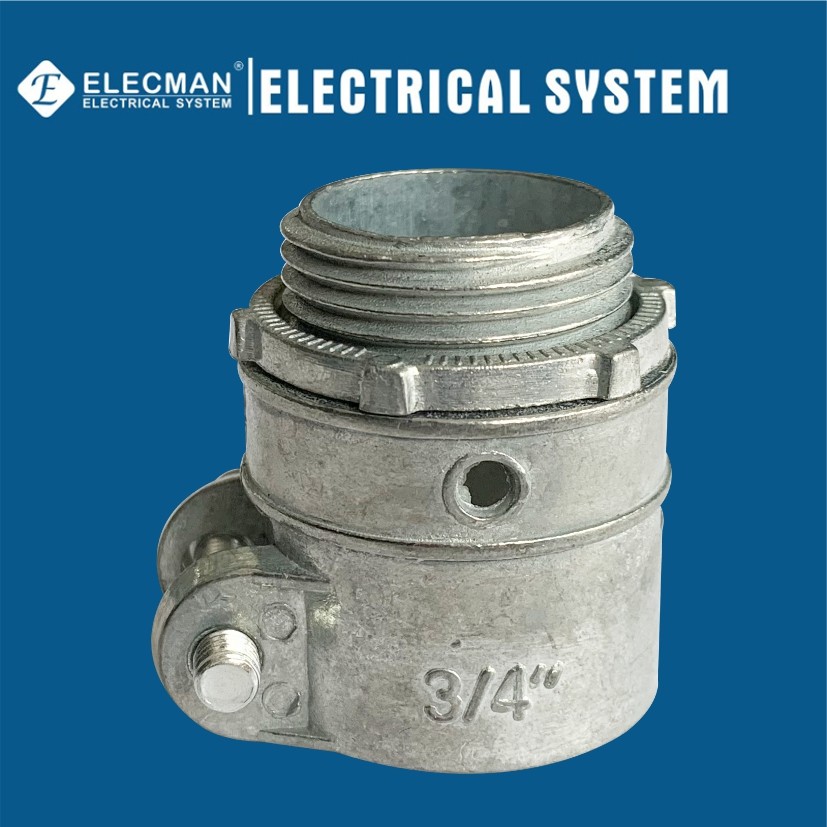

ELECMAN ® Zinc Squeeze Connector Straight Flexible Conduit To Box Type
Applications
ELECMAN® Zinc squeeze connectors straight flexible conduit to box type are used to connect flexible metal conduit and steel armored cable to a box or enclosure in dry locations.
Features
Certifications and Compliances
ELECMAN® Zinc squeeze connector straight flexible conduit to box type shall be produced to the following specification:
Specification Data
ELECMAN provides full size zinc squeeze connector straight flexible conduit to box type from 1/2" to 4".
| CAT # | Trade Size | DIM A | DIM B | DIM C | INNER PACK | MASTER PACK | WEIGHT/C |
| SQS050 | 1/2" | 1.46 | 0.74-0.95 | 0.4 | 100 | 500 | 12.50 |
| SQS075 | 3/4" | 1.58 | 0.88-1.11 | 0.4 | 100 | 200 | 9.00 |
| SQS100 | 1" | 1.75 | 1.13-1.39 | 0.54 | 50 | 300 | 15.00 |
| SQS125 | 1-1/4" | 1.91 | 1.42-1.66 | 0.64 | 25 | 100 | 9.00 |
| SQS150 | 1-1/2" | 2.09 | 1.68-1.94 | 0.75 | 25 | 100 | 11.00 |
| SQS200 | 2" | 2.35 | 2.08-2.56 | 0.75 | 10 | 100 | 14.00 |
| SQS250 | 2-1/2" | - | 40 | 15.00 | |||
| SQS300 | 3" | - | 25 | 13.00 | |||
| SQS400 | 4" | - | 20 | 17.00 |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the connector body is made of high quality zinc, the screws are made of steel, every part of the connector are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for flexible conduit fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box, from 1-1/4" to 4", ELECMAN provides plastic packing inside the outer box.
