| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | ALTN |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Carton Boxes |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Malleable Iron/Aluminum Grounding Lug | Surface Finish: | Zinc-Plated |
|---|---|---|---|
| Type: | 90 Degree, With Grounding Lug | Size: | 3/8" To 4" |
| Application: | Wire Protection | IP Rating: | IP67 Or IP68 |
| High Light: | 90 Degree liquid tight flexible connector,conduit liquid tight flexible connector,Flexible liquid tight conduit connector |
||

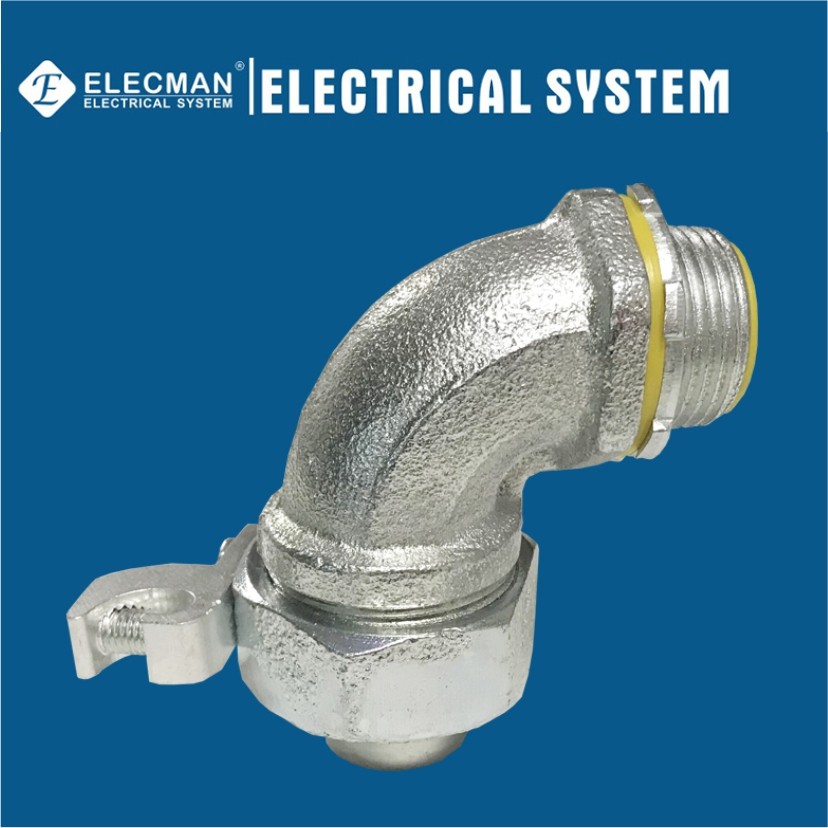

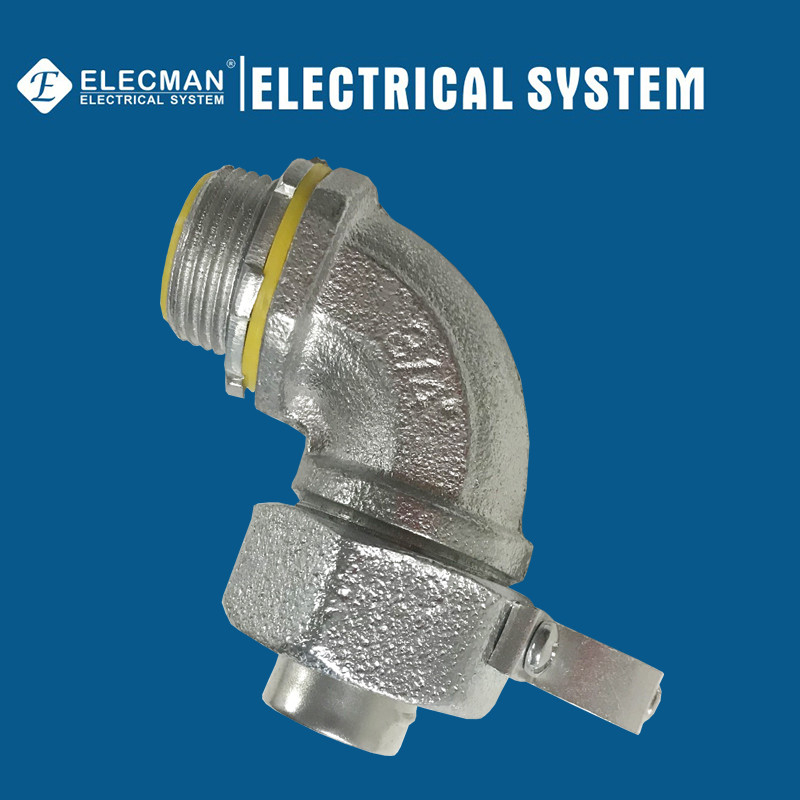

ELECMAN ® Malleable Iron Liquid Tight Connector 90 Degree Type With Grounding Lug
Applications
ELECMAN® Malleable iron liquid tight connectors 90 degree type also named liquid tight conduit fittings (or seal tight connector), it was usually installed with the flexible conduit as the seal tight fittings to ensure the waterproof degree. The liquid-tight connector designed to connect flexible metallic liquid tight conduit ensuring IP67 or IP68 waterproof degree protection for the junction box, equipment, and other electrical enclosures.
Features
Certifications and Compliances
ELECMAN® Malleable iron liquid tight connector 90 degree type with grounding lug shall be produced to the following specification:
- Class II, Divisions 1 & 2;
- Class III, Divisions 1 & 2;
- Suitable for grounding in sizes 3/8” through 1-1/4” under NEC
Specification Data
ELECMAN provides full size malleable liquid tight connectors 90 degree type with grounding lug from 3/8" to 4".
| CAT # | Trade Size | DIM A(inch) | DIM B(inch) | DIM C(inch) | DIM D(inch) | INNER PACK | MASTER PACK |
| ALTN038 | 3/8" | 1.313 | 0.500 | 1.125 | 0.750 | 50 | 250 |
| ALTN050 | 1/2" | 1.438 | 0.500 | 1.250 | 0.750 | 50 | 250 |
| ALTN075 | 3/4" | 1.625 | 0.500 | 1.563 | 0.750 | 50 | 250 |
| ALTN100 | 1" | 2.313 | 0.625 | 1.813 | 0.750 | 40 | 200 |
| ALTN125 | 1-1/4" | 2.375 | 0.688 | 2.250 | 0.750 | 20 | 100 |
| ALTN150 | 1-1/2" | 3.063 | 0.750 | 2.438 | 0.750 | 80 | |
| ALTN200 | 2" | 3.188 | 0.750 | 3.000 | 0.750 | 50 | |
| ALTN212 | 2-1/2" | 8.313 | 1.000 | 4.000 | 1.125 | 25 | |
| ALTN300 | 3" | 9.813 | 1.125 | 4.188 | 1.125 | 15 | |
| ALTN350 | 3-1/2" | 11.188 | 1.188 | 5.250 | 1.500 | 10 | |
| ALTN400 | 4" | 12.563 | 1.250 | 5.750 | 1.500 | 5 |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the connector body is made of high quality malleable iron, the screws are made of steel, the grounding lug is made of aluminum, every part of the connector are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for flexible conduit fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box, from 1-1/4" to 4", ELECMAN provides plastic packing inside the outer box.
