| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | ALTF |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Carton Boxes |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Malleable Iron/Aluminum Lug | Surface Finish: | Zinc Plated |
|---|---|---|---|
| Type: | With Grounding Lug | Size: | 3/8 In. - 4 In. |
| Angle: | 45 Degree | Usage: | Electrical Wires Installation |
| High Light: | Liquid Tight Flexible Conduit Fittings,45 Degree Flexible Conduit Fittings,45 Degree liquid tight flexible connector |
||

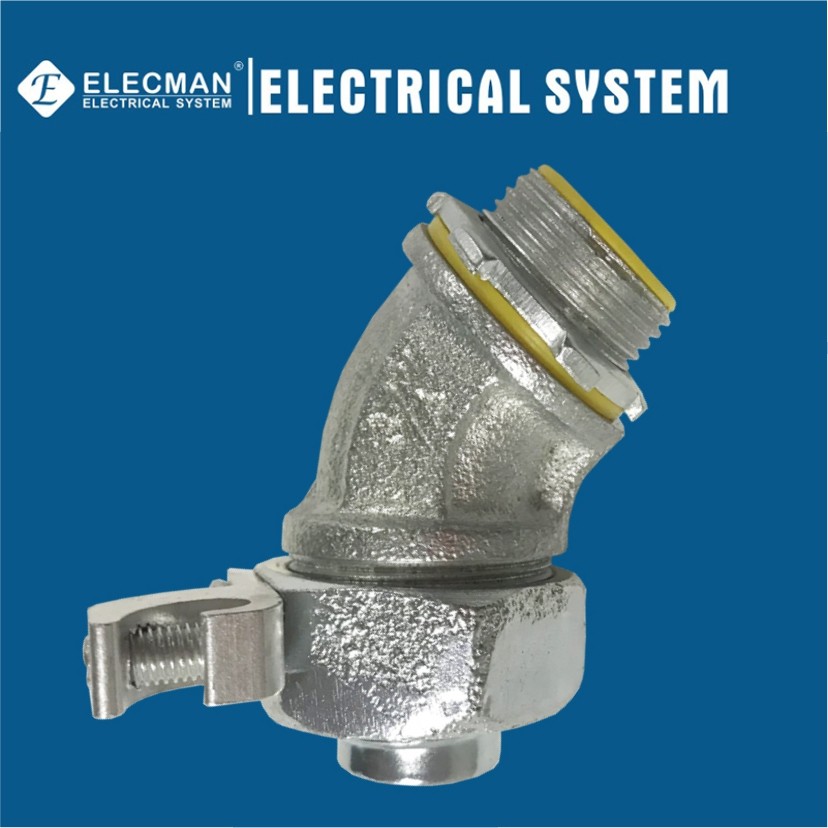

ELECMAN ® Malleable Iron Liquid Tight Connector 45 Degree Type With Grounding Lug
Applications
ELECMAN® Malleable iron liquid tight connectors 45 degree type with insulated throats and grounding lugs are used in both indoor and outdoor locations on flexible metallic liquid tight conduits when copper or aluminum jumper installations are required. The heavy duty locknuts and grounding lug included with every liquid tight connector ensures the continuity of the grounding.
Features
Certifications and Compliances
ELECMAN® Malleable iron liquid tight connector 45 degree type with grounding lug shall be produced to the following specification:
- Class II, Divisions 1 & 2;
- Class III, Divisions 1 & 2;
- Suitable for grounding in sizes 3/8” through 1-1/4” under NEC
Specification Data
ELECMAN provides full size malleable liquid tight connectors 45 degree type with grounding lug from 3/8" to 4".
| CAT # | Trade Size | DIM A(inch) | DIM B(inch) | DIM C(inch) | DIM D(inch) | INNER PACK | MASTER PACK |
| ALTF038 | 3/8" | 1.938 | 0.500 | 1.125 | 0.750 | 50 | 250 |
| ALTF050 | 1/2" | 2.000 | 0.500 | 1.250 | 0.750 | 50 | 250 |
| ALTF075 | 3/4" | 2.188 | 0.500 | 1.563 | 0.750 | 50 | 250 |
| ALTF100 | 1" | 2.500 | 0.625 | 1.813 | 0.750 | 40 | 200 |
| ALTF125 | 1-1/4" | 2.813 | 0.688 | 2.250 | 0.750 | 20 | 100 |
| ALTF150 | 1-1/2" | 3.000 | 0.750 | 2.438 | 0.750 | 80 | |
| ALTF200 | 2" | 3.688 | 0.750 | 3.000 | 0.750 | 50 | |
| ALTF212 | 2-1/2" | 7.313 | 1.000 | 4.000 | 1.125 | 25 | |
| ALTF300 | 3" | 7.625 | 1.125 | 4.188 | 1.125 | 15 | |
| ALTF350 | 3-1/2" | 9.625 | 1.188 | 5.250 | 1.500 | 10 | |
| ALTF400 | 4" | 11.063 | 1.250 | 5.750 | 1.500 | 5 |
Quality Control
ELECMAN QC department pay much attention to controlling the quality, the main part of the connector body is made of high quality malleable iron, the screws are made of steel, the grounding lug is made of aluminum, every part of the connector are produced according to the high standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for flexible conduit fittings, from 1/2" to 1", ELECMAN provides inner box packing inside the outer box, from 1-1/4" to 4", ELECMAN provides plastic packing inside the outer box.
