| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | JSB |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Bundles with Woven Bag |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | PVC & Steel | Surface Finish: | PVC Coated |
|---|---|---|---|
| Size: | 1/4" - 4" | Color: | Black & Grey |
| IP Rating: | IP64 & IP65 | Section Shape: | Round |
| High Light: | UL Listed Galvanized Steel Flexible Conduit,Liquid Tight Galvanized Steel Flexible Conduit,Carbon Steel Flexible Conduit |
||

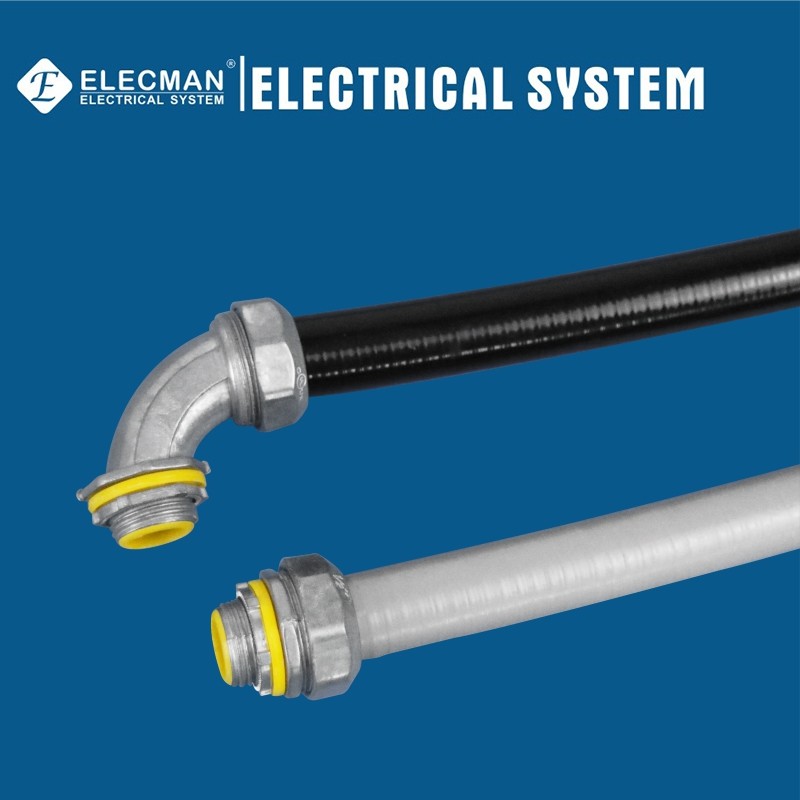

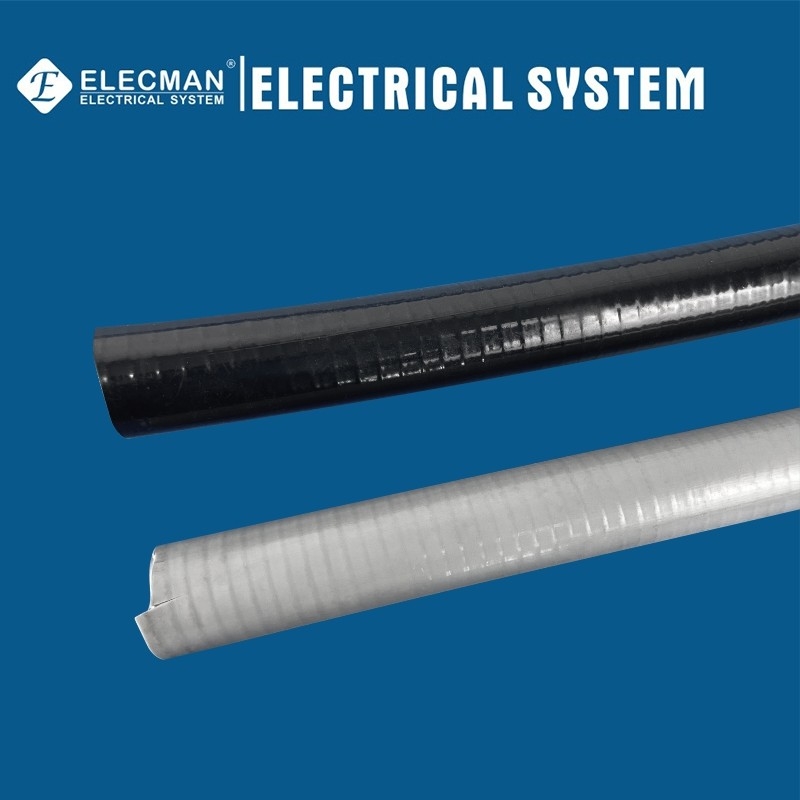

ELECMAN ® 1/4" - 4" Liquid Tight Galvanized Carbon Steel Flexible Conduit
Applications
ELECMAN ® Liquid tight steel flexible conduit is used to protect for wiring circuits located in extremely wet or damp areas. Suitable for machines and equipment where ruggedness is required. Outdoor use due to the inherent UV resistance of PVC. Inner layer flexible steel conduit is manufactured with a continuous spiral wound strip of corrosion rust resistant and hot dipped galvanized steel.
Features
Certifications and Compliances
ELECMAN® 1/4" - 4" liquid tight galvanized steel flexible conduits shall be produced to the following specification:
Specification Data
ELECMAN provides full size liquid tight galvanized flexible steel conduits from 1/4" to 4".
| CAT # | Trade size | Inside Diameter | Outside Diameter | Bending Radius | Length | ||
| MIN(mm) | MAX(mm) | MIN(mm) | MAX(mm) | m/Roll | |||
| JSB-025 | 1/4" | 6.20 | 6.70 | 11.40 | 11.90 | 35 | 100 |
| JSB-038 | 3/8" | 12.30 | 12.80 | 17.50 | 18.00 | 60 | 100 |
| JSB-050 | 1/2" | 15.80 | 16.30 | 20.80 | 21.30 | 85 | 50 |
| JSB-075 | 3/4" | 20.70 | 21.20 | 26.30 | 26.70 | 100 | 50 |
| JSB-100 | 1" | 26.20 | 26.60 | 32.70 | 33.40 | 150 | 50 |
| JSB-125 | 1-1/4" | 34.80 | 35.40 | 41.40 | 42.20 | 180 | 25 |
| JSB-150 | 1-1/2" | 40.10 | 40.60 | 47.40 | 48.30 | 220 | 25 |
| JSB-200 | 2" | 51.30 | 51.90 | 59.40 | 60.30 | 250 | 25 |
| JSB-250 | 2-1/2" | 63.00 | 63.60 | 72.10 | 73.00 | 300 | 10 |
| JSB-300 | 3" | 78.00 | 78.70 | 87.90 | 88.90 | 450 | 10 |
| JSB-400 | 4" | 101.60 | 102.60 | 113.20 | 114.30 | 600 | 10 |
| Notes: Length of roll can be made according to customers' requirements. Black Color or Gray Color is available. |
|||||||
Quality Control
Every ELECMAN people know deeply the core value of ELECMAN is to provide high quality products to customers, that is why ELECMAN QC departments have very strict quality controlling process, from raw material to products, ELECMAN QC department supervise every process, make sure every process follow the standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for electrical flexible conduits, from 1/4" to 4", ELECMAN provide flexible conduits are packed in rolls for internal, used good quality corrugated carton for external packing. ELECMAN can follow any packing requirements of customers.
