| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | JS |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Bundles with Woven Bag |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Steel | Surface Finish: | Galvanized |
|---|---|---|---|
| Size: | 1/4" - 6" | Color: | Sliver |
| Section Shape: | Round | IP Rating: | IP67 |
| High Light: | UL Electrical Flexible Conduits,Electrical Flexible Conduits Hose,1" flexible conduit hose |
||

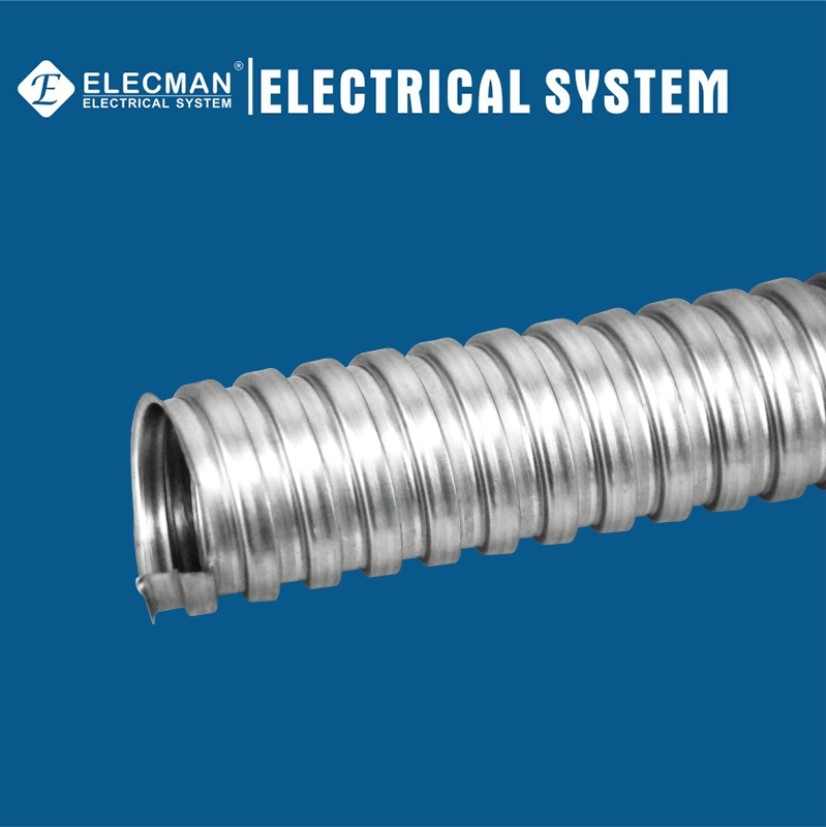

ELECMAN ® UL Listed Metallic Flexible Conduit Metal Hose 3/4" Fleixble Steel Conduit
Applications
ELECMAN ® UL listed metallic flexible conduit metal hose 3/4" fleixble steel conduits are easy to cut and flexible freely. The flex conduit replaces EMT pipe in difficult or impractical locations for tight-spot installation.
Features
Certifications and Compliances
ELECMAN® Metallic flexible conduit metal hose fleixble steel conduits shall be produced to the following specification:
Specification Data
ELECMAN provides UL listed metallic flexible conduit metal hose fleixble steel conduits from 1/4" to 6".
| CAT # | Trade size | Inside Diameter | Outside Diameter | Bending Radius | Length | ||
| MIN(mm) | MAX(mm) | MIN(mm) | MAX(mm) | m/Roll | |||
| JS-025 | 1/4" | 9.70 | 10.20 | 13.50 | 14.00 | 40 | 100 |
| JS-038 | 3/8" | 12.30 | 12.80 | 15.70 | 16.20 | 50 | 100 |
| JS-050 | 1/2" | 15.80 | 16.30 | 19.20 | 19.70 | 65 | 50 |
| JS-075 | 3/4" | 20.70 | 21.20 | 24.50 | 25.10 | 75 | 50 |
| JS-100 | 1" | 26.00 | 26.60 | 30.40 | 31.00 | 100 | 50 |
| JS-125 | 1-1/4" | 34.70 | 35.40 | 39.60 | 40.30 | 125 | 25 |
| JS-150 | 1-1/2" | 40.00 | 40.60 | 45.20 | 48.80 | 150 | 25 |
| JS-200 | 2" | 51.30 | 51.90 | 56.50 | 57.10 | 175 | 25 |
| JS-250 | 2-1/2" | 63.00 | 63.60 | 70.20 | 70.80 | 200 | 10 |
| JS-300 | 3" | 78.00 | 78.70 | 85.20 | 85.90 | 225 | 10 |
| JS-400 | 4" | 101.60 | 102.60 | 108.50 | 109.50 | 275 | 10 |
| JS-500 | 5" | 125.00 | 127.00 | 135.00 | 137.00 | 300 | 5 |
| JS-600 | 6" | 150.00 | 153.00 | 160.00 | 162.00 | 400 | 5 |
| Notes:Length of roll can be made according to customers' requirements. | |||||||
Quality Control
Every ELECMAN people know deeply the core value of ELECMAN is to provide high quality products to customers, that is why ELECMAN QC departments have very strict quality controlling process, from raw material to products, ELECMAN QC department supervise every process, make sure every process follow the standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for electrical flexible conduits, from 1/4" to 6", ELECMAN provide flexible conduits are packed in rolls for internal, used good quality corrugated carton for external packing. ELECMAN can follow any packing requirements of customers.
