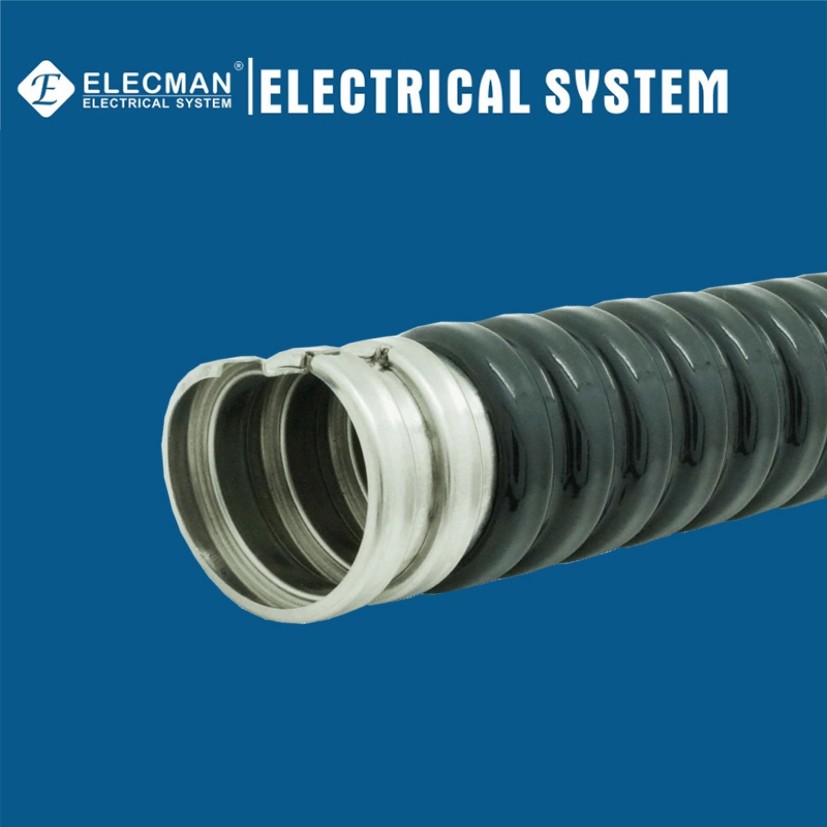

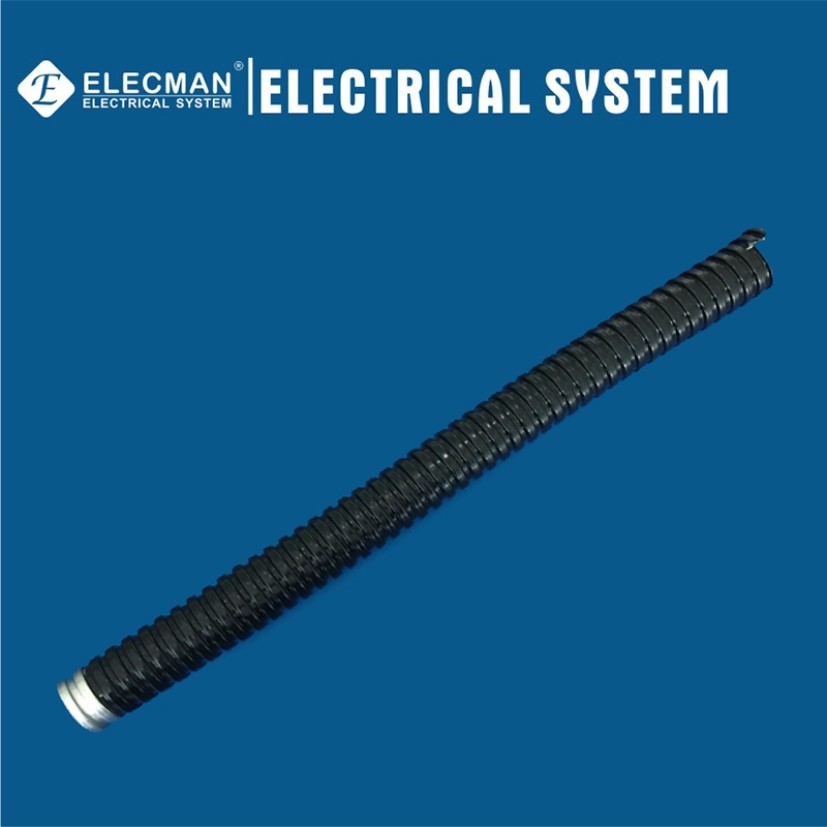

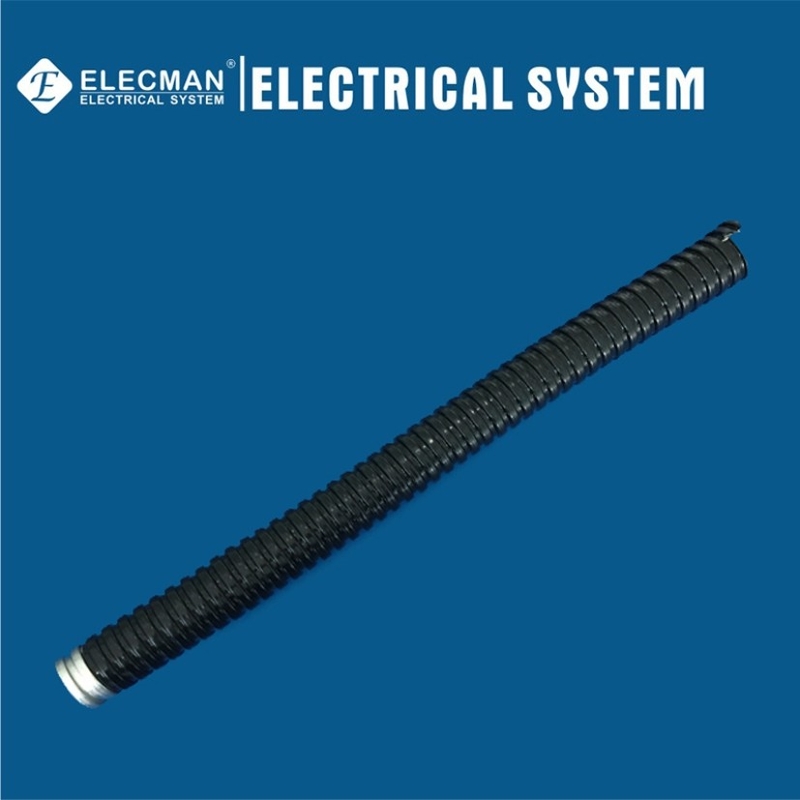

ELECMAN ® UL Standard 3/4 Inch PVC Coated GI Flexible Steel Pipes Black Metal Hose
Applications
ELECMAN ® UL standard 3/4 inch PVC coated flexible steel pipes black metal hose is designed to use in wet or hostile locations where it would be impractical to install rigid steel conduit. PVC coated GI flexible conduit is in galvanized steel construction inside and corrugated PVC jacket outside.
Features
Certifications and Compliances
ELECMAN® PVC coated flexible steel pipes shall be produced to the following specification:
Specification Data
ELECMAN provides full size PVC coated flexible steel pipes from 1/4" to 6".
| CAT # | Trade size | Inside Diameter | Outside Diameter | Bending Radius | Length | ||
| MIN(mm) | MAX(mm) | MIN(mm) | MAX(mm) | m/Roll | |||
| JSH-025 | 1/4" | 9.70 | 10.40 | 14.40 | 14.70 | 45 | 100 |
| JSH-038 | 3/8" | 12.30 | 12.80 | 16.70 | 17.20 | 50 | 100 |
| JSH-050 | 1/2" | 15.80 | 16.30 | 20.20 | 20.70 | 65 | 50 |
| JSH-075 | 3/4" | 20.70 | 21.20 | 25.50 | 26.10 | 75 | 50 |
| JSH-100 | 1" | 26.00 | 26.60 | 31.60 | 32.20 | 100 | 50 |
| JSH-125 | 1-1/4" | 34.70 | 35.40 | 40.80 | 41.50 | 125 | 25 |
| JSH-150 | 1-1/2" | 40.00 | 40.60 | 46.60 | 47.20 | 150 | 25 |
| JSH-200 | 2" | 51.30 | 51.90 | 58.10 | 58.70 | 175 | 25 |
| JSH-250 | 2-1/2" | 63.00 | 63.60 | 71.80 | 72.40 | 200 | 10 |
| JSH-300 | 3" | 78.00 | 78.70 | 87.20 | 87.90 | 225 | 10 |
| JSH-400 | 4" | 101.60 | 102.60 | 111.20 | 112.30 | 275 | 10 |
| JSH-500 | 5" | 125.00 | 127.00 | 137.00 | 139.50 | 300 | 5 |
| JSH-600 | 6" | 150.00 | 153.00 | 162.00 | 165.00 | 400 | 5 |
| Notes:Length of roll can be made according to customers' requirements. Black Color or Grey Color are available. |
|||||||
Quality Control
Every ELECMAN people know deeply the core value of ELECMAN is to provide high quality products to customers, that is why ELECMAN QC departments have very strict quality controlling process, from raw material to products, ELECMAN QC department supervise every process, make sure every process follow the standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for electrical flexible conduits, from 1/4" to 6", ELECMAN provide flexible conduits are packed in rolls for internal, used good quality corrugated carton for external packing. ELECMAN can follow any packing requirements of customers.
