| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | JSH |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Bundles with Woven Bag |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | PVC & Steel | Surface Finish: | PVC Coated |
|---|---|---|---|
| Size: | 1/4" - 6" | Color: | Black & Grey |
| Section Shape: | Round | IP Rating: | IP65 |
| High Light: | IP65 galvanized steel flexible conduit,Electrical Galvanized Flexible Steel Conduit,PVC Coated flexible conduit galvanized steel |
||

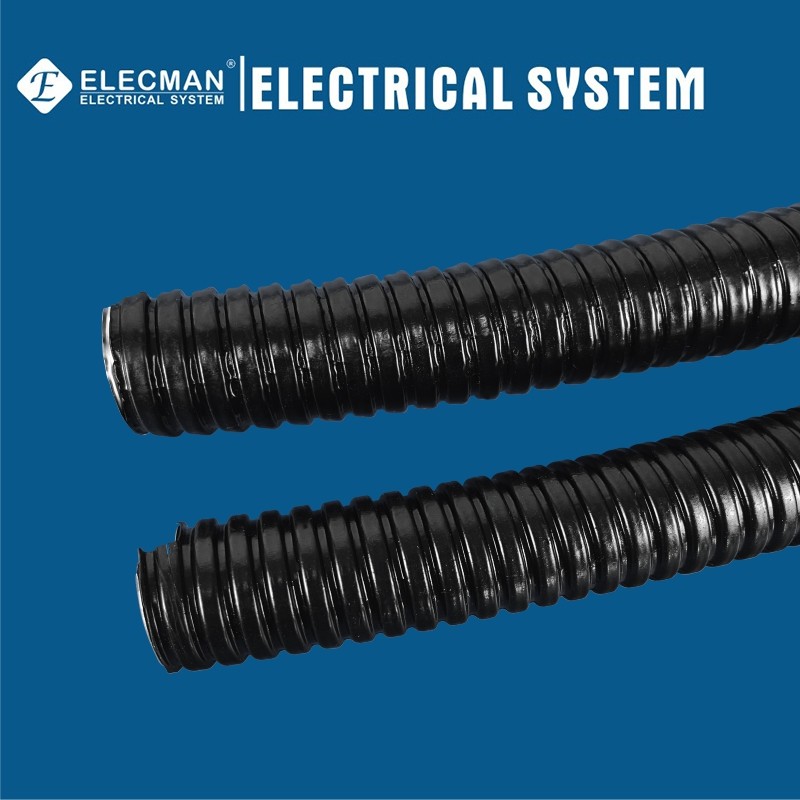

ELECMAN ® 1-1/2" PVC Coated Electrical Galvanized Flexible Steel Conduit
Applications
ELECMAN ® PVC coated galvanized flexible steel conduit have extremely good waterproof, insulating and pull resistance. PVC coated steel flexible conduits are used to protect wires and cables and provide insulation and waterproofing performance. Compared with plastic and metal cable conduit, it is more smooth in the outside and inside. So it is easy to put the wire or cables in it, and move them easily too.
Features
Certifications and Compliances
ELECMAN® 1/4" - 6" PVC coated galvanized carbon steel flexible conduits shall be produced to the following specification:
Specification Data
ELECMAN provides full size PVC coated galvanized carbon flexible steel conduits from 1/4" to 6".
| CAT # | Trade size | Inside Diameter | Outside Diameter | Bending Radius | Length | ||
| MIN(mm) | MAX(mm) | MIN(mm) | MAX(mm) | m/Roll | |||
| JSH-025 | 1/4" | 9.70 | 10.40 | 14.40 | 14.70 | 45 | 100 |
| JSH-038 | 3/8" | 12.30 | 12.80 | 16.70 | 17.20 | 50 | 100 |
| JSH-050 | 1/2" | 15.80 | 16.30 | 20.20 | 20.70 | 65 | 50 |
| JSH-075 | 3/4" | 20.70 | 21.20 | 25.50 | 26.10 | 75 | 50 |
| JSH-100 | 1" | 26.00 | 26.60 | 31.60 | 32.20 | 100 | 50 |
| JSH-125 | 1-1/4" | 34.70 | 35.40 | 40.80 | 41.50 | 125 | 25 |
| JSH-150 | 1-1/2" | 40.00 | 40.60 | 46.60 | 47.20 | 150 | 25 |
| JSH-200 | 2" | 51.30 | 51.90 | 58.10 | 58.70 | 175 | 25 |
| JSH-250 | 2-1/2" | 63.00 | 63.60 | 71.80 | 72.40 | 200 | 10 |
| JSH-300 | 3" | 78.00 | 78.70 | 87.20 | 87.90 | 225 | 10 |
| JSH-400 | 4" | 101.60 | 102.60 | 111.20 | 112.30 | 275 | 10 |
| JSH-500 | 5" | 125.00 | 127.00 | 137.00 | 139.50 | 300 | 5 |
| JSH-600 | 6" | 150.00 | 153.00 | 162.00 | 165.00 | 400 | 5 |
| Notes:Length of roll can be made according to customers' requirements. Black Color or Grey Color are available. |
|||||||
Quality Control
Every ELECMAN people know deeply the core value of ELECMAN is to provide high quality products to customers, that is why ELECMAN QC departments have very strict quality controlling process, from raw material to products, ELECMAN QC department supervise every process, make sure every process follow the standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for electrical flexible conduits, from 1/4" to 6", ELECMAN provide flexible conduits are packed in rolls for internal, used good quality corrugated carton for external packing. ELECMAN can follow any packing requirements of customers.
