| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | JS |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Bundles with Woven Bag |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Steel | Surface Finish: | Galvanized |
|---|---|---|---|
| Size: | 1/4" - 6" | Color: | Sliver |
| Section Shape: | Round | IP Rating: | IP68 |
| High Light: | UL Listed Flexible Conduit Metal Hose,IP68 metal flexible hose electrical,UL Listed metal flexible hose electrical |
||

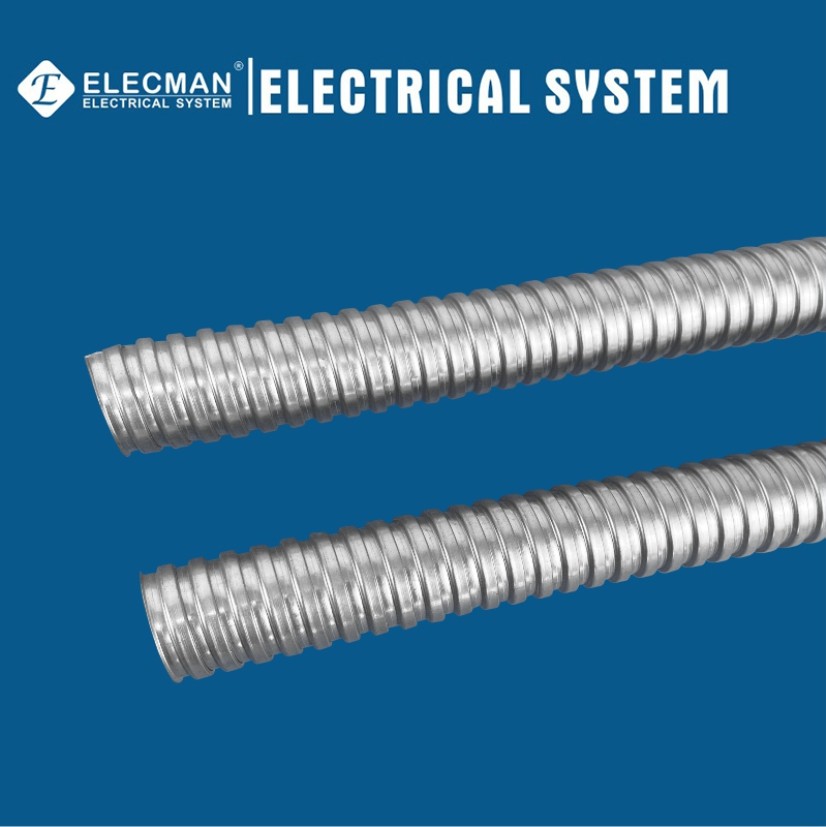

ELECMAN ® UL Listed Flexible Conduit Metal Hose 1-1/4" Fleixble Steel Conduit
Applications
ELECMAN ® Galvanized steel flexible conduit are suitable for concealed or exposed installations for a variety of applications including power and lighting branch circuit conductors and cables for connecting receptacles, luminaries, equipment and more. Easy installation to follow contours and flexibility for simplified positioning.
Features
Certifications and Compliances
ELECMAN® 1/4" - 6" galvanized carbon steel flexible metal conduits shall be produced to the following specification:
Specification Data
ELECMAN provides full size galvanized carbon steel flexible metal conduit from 1/4" to 6".
| CAT # | Trade size | Inside Diameter | Outside Diameter | Bending Radius | Length | ||
| MIN(mm) | MAX(mm) | MIN(mm) | MAX(mm) | m/Roll | |||
| JS-025 | 1/4" | 9.70 | 10.20 | 13.50 | 14.00 | 40 | 100 |
| JS-038 | 3/8" | 12.30 | 12.80 | 15.70 | 16.20 | 50 | 100 |
| JS-050 | 1/2" | 15.80 | 16.30 | 19.20 | 19.70 | 65 | 50 |
| JS-075 | 3/4" | 20.70 | 21.20 | 24.50 | 25.10 | 75 | 50 |
| JS-100 | 1" | 26.00 | 26.60 | 30.40 | 31.00 | 100 | 50 |
| JS-125 | 1-1/4" | 34.70 | 35.40 | 39.60 | 40.30 | 125 | 25 |
| JS-150 | 1-1/2" | 40.00 | 40.60 | 45.20 | 48.80 | 150 | 25 |
| JS-200 | 2" | 51.30 | 51.90 | 56.50 | 57.10 | 175 | 25 |
| JS-250 | 2-1/2" | 63.00 | 63.60 | 70.20 | 70.80 | 200 | 10 |
| JS-300 | 3" | 78.00 | 78.70 | 85.20 | 85.90 | 225 | 10 |
| JS-400 | 4" | 101.60 | 102.60 | 108.50 | 109.50 | 275 | 10 |
| JS-500 | 5" | 125.00 | 127.00 | 135.00 | 137.00 | 300 | 5 |
| JS-600 | 6" | 150.00 | 153.00 | 160.00 | 162.00 | 400 | 5 |
| Notes:Length of roll can be made according to customers' requirements. | |||||||
Quality Control
Every ELECMAN people know deeply the core value of ELECMAN is to provide high quality products to customers, that is why ELECMAN QC departments have very strict quality controlling process, from raw material to products, ELECMAN QC department supervise every process, make sure every process follow the standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for electrical flexible conduits, from 1/4" to 6", ELECMAN provide flexible conduits are packed in rolls for internal, used good quality corrugated carton for external packing. ELECMAN can follow any packing requirements of customers.
