| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | UL |
| Model Number: | JS |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Bundles with Woven Bag |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Steel | Surface Finish: | Galvanized |
|---|---|---|---|
| Size: | 1/4" - 6" | Color: | Sliver |
| Section Shape: | Round | IP Rating: | IP68 |
| High Light: | Galvanized Flexible Cable Conduit,UL Standard Flexible Cable Conduit,IP68 Flexible Cable Conduit |
||

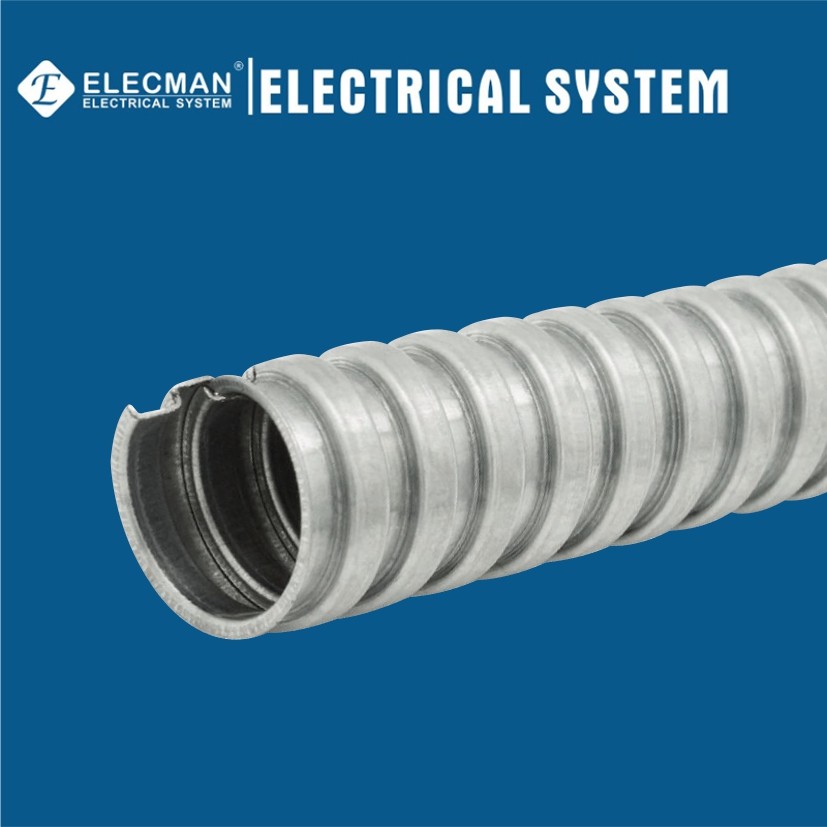

ELECMAN ® UL Standard Gi Flexible Steel Hose Flexible Pipe Cable Conduit
Applications
ELECMAN ® Galvanized steel flexible conduit is designed in order to provide mechanical strength and higher flexibility. These helically wound flexible conduits in galvanized steel are appreciated for features such as corrosion resistance, durability, and high functional life. We offer these conduits in zinc finish.
Features
Certifications and Compliances
ELECMAN® 1/4" - 6" galvanized carbon steel flexible metal conduits shall be produced to the following specification:
Specification Data
ELECMAN provides full size galvanized carbon steel flexible metal conduit from 1/4" to 6".
| CAT # | Trade size | Inside Diameter | Outside Diameter | Bending Radius | Length | ||
| MIN(mm) | MAX(mm) | MIN(mm) | MAX(mm) | m/Roll | |||
| JS-025 | 1/4" | 9.70 | 10.20 | 13.50 | 14.00 | 40 | 100 |
| JS-038 | 3/8" | 12.30 | 12.80 | 15.70 | 16.20 | 50 | 100 |
| JS-050 | 1/2" | 15.80 | 16.30 | 19.20 | 19.70 | 65 | 50 |
| JS-075 | 3/4" | 20.70 | 21.20 | 24.50 | 25.10 | 75 | 50 |
| JS-100 | 1" | 26.00 | 26.60 | 30.40 | 31.00 | 100 | 50 |
| JS-125 | 1-1/4" | 34.70 | 35.40 | 39.60 | 40.30 | 125 | 25 |
| JS-150 | 1-1/2" | 40.00 | 40.60 | 45.20 | 48.80 | 150 | 25 |
| JS-200 | 2" | 51.30 | 51.90 | 56.50 | 57.10 | 175 | 25 |
| JS-250 | 2-1/2" | 63.00 | 63.60 | 70.20 | 70.80 | 200 | 10 |
| JS-300 | 3" | 78.00 | 78.70 | 85.20 | 85.90 | 225 | 10 |
| JS-400 | 4" | 101.60 | 102.60 | 108.50 | 109.50 | 275 | 10 |
| JS-500 | 5" | 125.00 | 127.00 | 135.00 | 137.00 | 300 | 5 |
| JS-600 | 6" | 150.00 | 153.00 | 160.00 | 162.00 | 400 | 5 |
| Notes:Length of roll can be made according to customers' requirements. | |||||||
Quality Control
Every ELECMAN people know deeply the core value of ELECMAN is to provide high quality products to customers, that is why ELECMAN QC departments have very strict quality controlling process, from raw material to products, ELECMAN QC department supervise every process, make sure every process follow the standard.
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for electrical flexible conduits, from 1/4" to 6", ELECMAN provide flexible conduits are packed in rolls for internal, used good quality corrugated carton for external packing. ELECMAN can follow any packing requirements of customers.
