| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | IEC 61386 |
| Model Number: | JSB |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Bundles with Woven Bag |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | PVC & Steel | Surface Finish: | PVC Coated |
|---|---|---|---|
| Size: | 20mm-110mm | Color: | Sliver |
| Section Shape: | Round | IP Rating: | IP64 & IP65 |
| High Light: | IEC 61386 Standard Flexible Steel Conduit,32mm Liquid Tight Flexible Steel Conduit,Sliver Liquid Tight Flexible Steel Conduit |
||

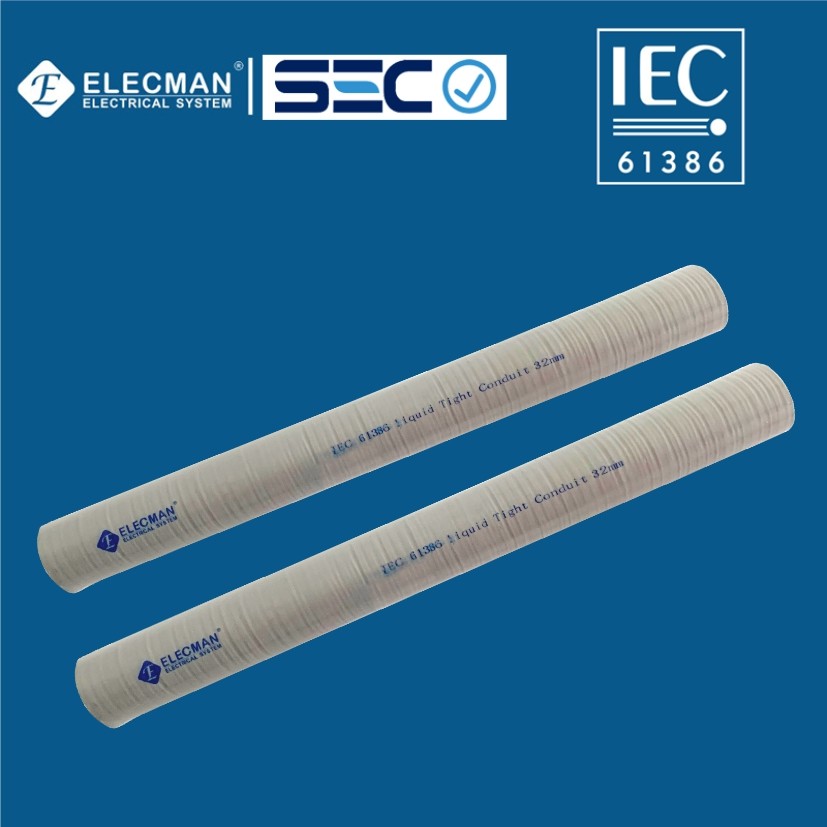

ELECMAN ® 32mm IEC 61386 Standard Chile Liquid Tight Flexible Steel Conduit
Applications
ELECMAN® IEC 61386 standard galvanized steel high-flex, liquid-tight conduit has an interlocking construction that gives it a small bend radius for routing wire and cable around tight bends, and it also absorbs vibrations and movements. Metal conduit is stronger than plastic conduit to protect wire and cable from crushing and impact damage. This conduit has an outer covering that resists moisture, protecting wire and cable from corrosion and water infiltration where liquids are present.
Features
Certifications and Compliances
ELECMAN® IEC 61386 liquid tight steel flexible conduits shall be produced to the following specifications:
Specification Data
ELECMAN provides full size IEC 61386 liquid tight steel flexible conduits from 20mm to 110mm.
| CAT # | Trade size | Inside Diameter | Outside Diameter | Bending Radius |
Length | ||
| MIN(mm) | MAX(mm) | MIN(mm) | MAX(mm) | m/Roll | |||
| JSB20 | 20mm | 14.60 | 15.40 | 19.60 | 20.40 | 100 | 50 |
| JSB25 | 25mm | 19.40 | 20.20 | 24.60 | 25.40 | 150 | 50 |
| JSB32 | 32mm | 25.60 | 26.60 | 31.50 | 32.50 | 180 | 25 |
| JSB40 | 40mm | 32.90 | 34.50 | 39.20 | 40.80 | 220 | 25 |
| JSB50 | 50mm | 41.70 | 43.70 | 49.00 | 51.00 | 250 | 25 |
| JSB63 | 63mm | 52.00 | 55.00 | 61.50 | 64.50 | 300 | 10 |
| JSB75 | 75mm | 63.00 | 66.00 | 73.50 | 76.50 | 320 | 10 |
| JSB90 | 90mm | 77.00 | 80.00 | 88.50 | 90.50 | 380 | 5 |
| JSB110 | 110mm | 94.50 | 97.50 | 108.50 | 111.50 | 400 | 5 |
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for IEC 61386 liquid tight galvanized carbon steel flexible conduits, from 20mm to 110mm, ELECMAN provide flexible conduits are packed in rolls for internal, used good quality corrugated carton for external packing. ELECMAN can follow any packing requirements of customers.
