| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | IEC 61386 |
| Model Number: | JSB |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Bundles with Woven Bag |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | PVC & Steel | Surface Finish: | PVC Coated |
|---|---|---|---|
| Size: | 20mm-110mm | Color: | Sliver |
| Section Shape: | Round | IP Rating: | IP64 & IP65 |
| High Light: | Galvanized IEC 61386 Conduits,liquid tight IEC 61386 Conduits,IEC liquid tight flexible metal conduit |
||

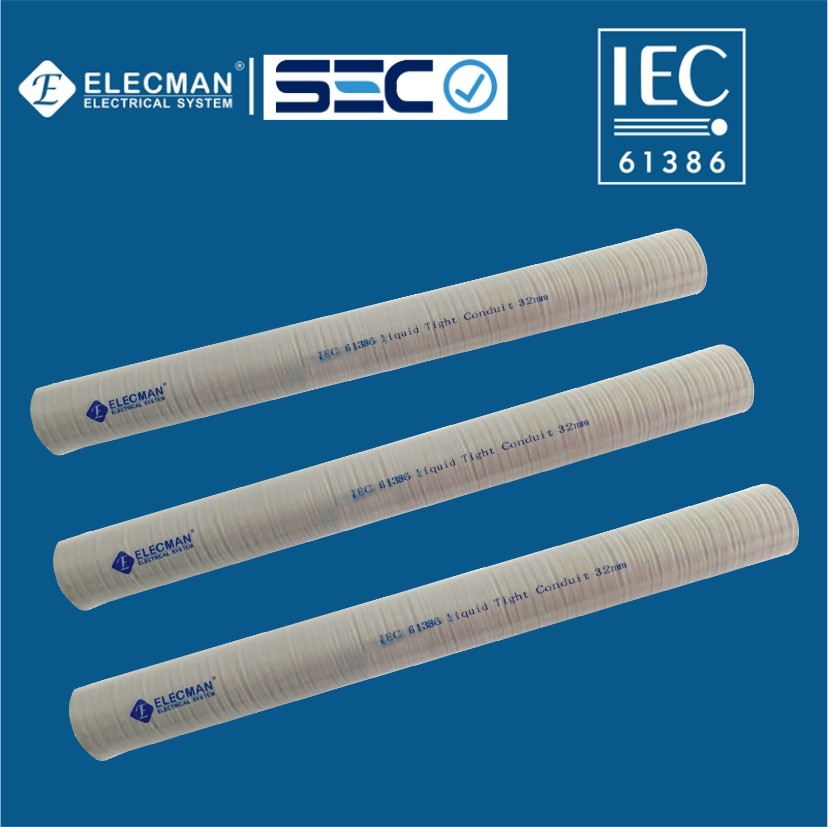

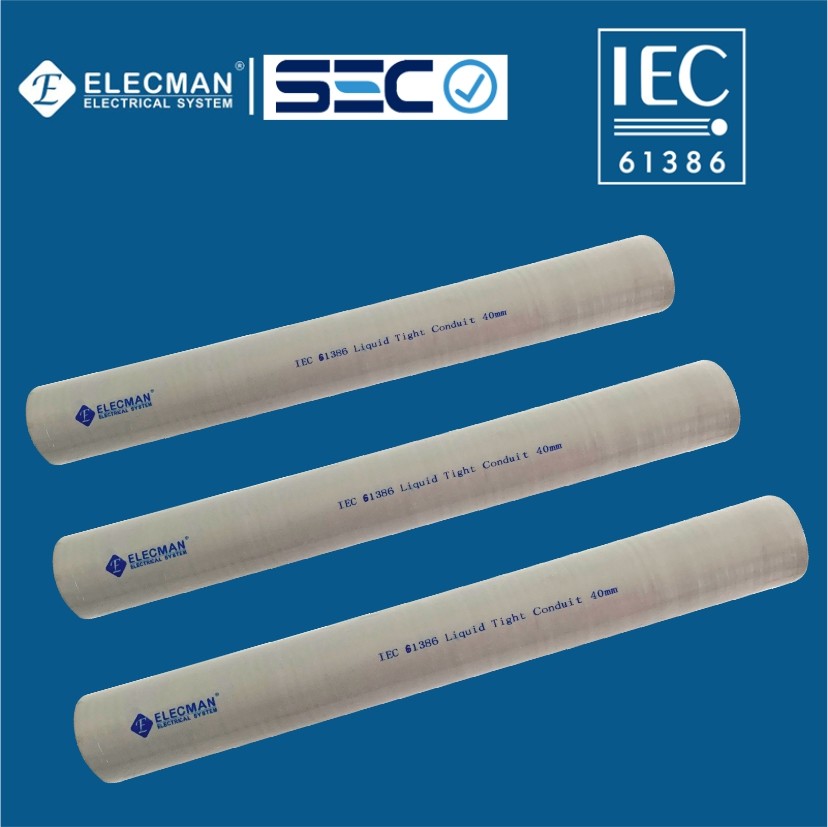

ELECMAN ® IEC 61386 Liquid Tight Galvanized Carbon Steel Flexible Conduit
ELECMAN® IEC 61386 liquid tight galvanized carbon steel flexible conduit is manufactured in accordance with the IEC 61386 ( conduit systems for cable management ).
ELECMAN® IEC 61386 liquid tight galvanized carbon steel flexible conduits can be bent by hand with reasonable small force.
Applications
ELECMAN® IEC 61386 liquid tight galvanized carbon steel flexible conduits can be used as mechanical protection for insulated electrical cables and wires that are functional in normal atmospheric temperature.
Features
Certifications and Compliances
ELECMAN® IEC 61386 liquid tight galvanized carbon steel flexible conduits shall be produced to the following specifications:
Specification Data
ELECMAN provides full size IEC 61386 liquid tight galvanized carbon steel flexible conduits from 20mm to 110mm.
| CAT # | Trade size | Inside Diameter | Outside Diameter | Bending Radius |
Length | ||
| MIN(mm) | MAX(mm) | MIN(mm) | MAX(mm) | m/Roll | |||
| JSB20 | 20mm | 14.60 | 15.40 | 19.60 | 20.40 | 100 | 50 |
| JSB25 | 25mm | 19.40 | 20.20 | 24.60 | 25.40 | 150 | 50 |
| JSB32 | 32mm | 25.60 | 26.60 | 31.50 | 32.50 | 180 | 25 |
| JSB40 | 40mm | 32.90 | 34.50 | 39.20 | 40.80 | 220 | 25 |
| JSB50 | 50mm | 41.70 | 43.70 | 49.00 | 51.00 | 250 | 25 |
| JSB63 | 63mm | 52.00 | 55.00 | 61.50 | 64.50 | 300 | 10 |
| JSB75 | 75mm | 63.00 | 66.00 | 73.50 | 76.50 | 320 | 10 |
| JSB90 | 90mm | 77.00 | 80.00 | 88.50 | 90.50 | 380 | 5 |
| JSB110 | 110mm | 94.50 | 97.50 | 108.50 | 111.50 | 400 | 5 |
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for IEC 61386 liquid tight galvanized carbon steel flexible conduits, from 20mm to 110mm, ELECMAN provide flexible conduits are packed in rolls for internal, used good quality corrugated carton for external packing. ELECMAN can follow any packing requirements of customers.
