| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | IEC 61386 |
| Model Number: | JSB |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Bundles with Woven Bag |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | PVC & Steel | Surface Finish: | PVC Coated |
|---|---|---|---|
| Size: | 20mm-110mm | Color: | Sliver |
| Section Shape: | Round | IP Rating: | IP64 & IP65 |
| High Light: | IEC 61386-21 Flexible Metallic Pipe,IEC 61386 Conduits Metallic Pipe,Flexible Metallic Pipe 25mm |
||

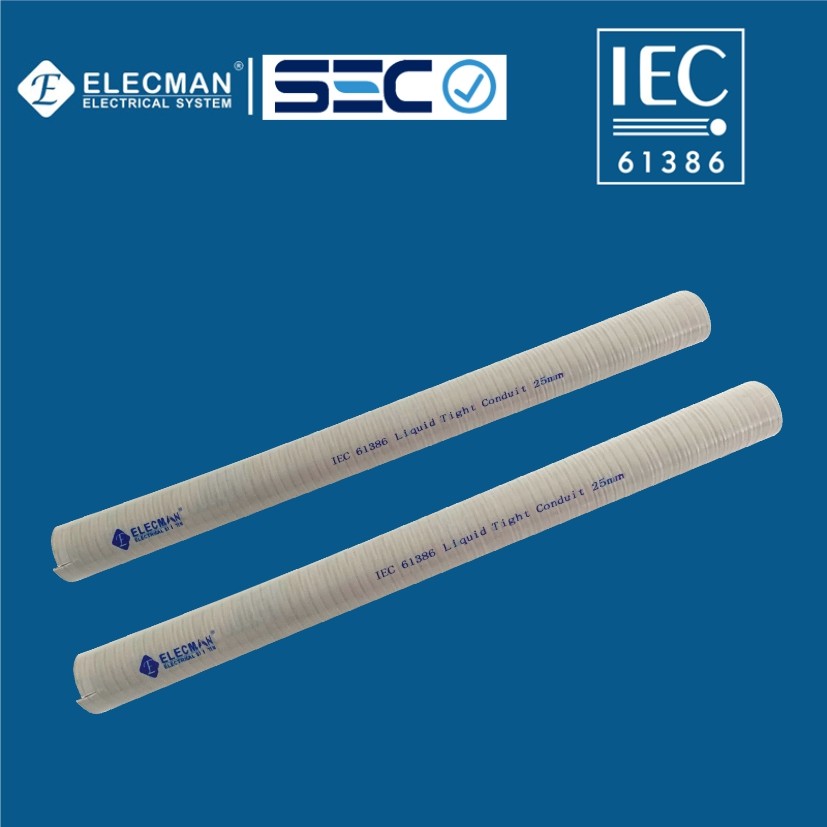

ELECMAN ® IEC 61386-21 Liquid Tight Flexible Metallic Pipe For Chile 25mm
Applications
ELECMAN® IEC 61386 liquid-tight flexible metallic conduit is suitable for use in a variety of environments and applications from general purpose wiring in wet or damp locations, to direct burial and in concrete embedment, to raised computer room floors and site lighting jobs. It’s flexible to fit around curves or tight spaces. Metal conduit is stronger than plastic conduit to protect wire and cable from crushing and impact damage.
Features
Certifications and Compliances
ELECMAN® IEC 61386 liquid tight steel flexible conduits shall be produced to the following specifications:
Specification Data
ELECMAN provides full size IEC 61386 liquid tight steel flexible conduits from 20mm to 110mm.
| CAT # | Trade size | Inside Diameter | Outside Diameter | Bending Radius |
Length | ||
| MIN(mm) | MAX(mm) | MIN(mm) | MAX(mm) | m/Roll | |||
| JSB20 | 20mm | 14.60 | 15.40 | 19.60 | 20.40 | 100 | 50 |
| JSB25 | 25mm | 19.40 | 20.20 | 24.60 | 25.40 | 150 | 50 |
| JSB32 | 32mm | 25.60 | 26.60 | 31.50 | 32.50 | 180 | 25 |
| JSB40 | 40mm | 32.90 | 34.50 | 39.20 | 40.80 | 220 | 25 |
| JSB50 | 50mm | 41.70 | 43.70 | 49.00 | 51.00 | 250 | 25 |
| JSB63 | 63mm | 52.00 | 55.00 | 61.50 | 64.50 | 300 | 10 |
| JSB75 | 75mm | 63.00 | 66.00 | 73.50 | 76.50 | 320 | 10 |
| JSB90 | 90mm | 77.00 | 80.00 | 88.50 | 90.50 | 380 | 5 |
| JSB110 | 110mm | 94.50 | 97.50 | 108.50 | 111.50 | 400 | 5 |
Packing Information
Packing is so important, good packing can help customers to improve the brand image, good packing also can help can help customers to stock the products well for longer time, so ELECMAN pay much attention to that, for IEC 61386 liquid tight galvanized carbon steel flexible conduits, from 20mm to 110mm, ELECMAN provide flexible conduits are packed in rolls for internal, used good quality corrugated carton for external packing. ELECMAN can follow any packing requirements of customers.
