| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | IEC 61386 |
| Model Number: | RGD |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Bundles with Woven Bag |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Steel | Surface Finish: | Hot Dipped Galvanized |
|---|---|---|---|
| Type: | Threaded | Size: | 20mm-110mm |
| Section Shape: | Round | Color: | Sliver |
| High Light: | Hot Dipped Galvanized IMC Rigid Conduit,50mm IMC Rigid Conduit,IMC Rigid Tube 50mm |
||

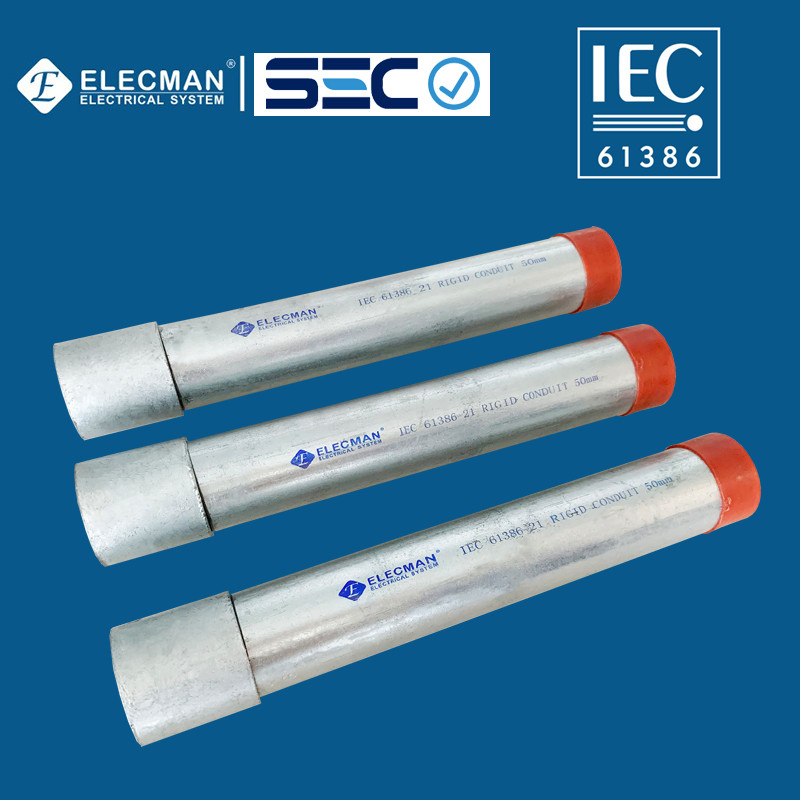

ELECMAN ® 50mm Hot Dipped Galvanized IMC Rigid Conduit IEC 61386 Rigid Tube
Applications
ELECMAN® IEC 61386-21 galvanized Rigid conduit is manufactured from carbon steel, it is used as a steel raceway system for electric conductors. The shape is circular cross-section, designed for the physical protection and routing of wire conductors and use as an equipment grounding conductor.
ELECMAN® IEC 61386-21 galvanized rigid steel conduit is the heaviest weight and thickest wall of electrical conduits. It is made of low carbon steel pipe with accurate round section, uniform wall thickness, free inner surface and continuous weld.
Features
Certifications and Compliances
ELECMAN® IEC 61386 carbon steel Rigid metallic conduit(IEC Rigid conduit) shall be carbon steel, electrically welded, galvanized and produced to the following specifications:
Specification Data
ELECMAN ® IEC 61386 carbon steel Rigid metallic conduit(IEC Rigid conduit) is listed to Chile SEC Safety Standard and manufactured in accordance with IEC 61386 - 21. details shall accord with following table. ELECMAN provides full size IEC 61386 Rigid metallic conduit from 20mm to 110mm.
| CAT # | Trade size | O.D. | Thickness | Length |
| mm | mm | m | ||
| RGD20 | 20mm | 20 | 2.50 | 3 |
| RGD25 | 25mm | 25 | 2.50 | 3 |
| RGD32 | 32mm | 32 | 3.00 | 3 |
| RGD40 | 40mm | 40 | 3.25 | 3 |
| RGD50 | 50mm | 50 | 3.25 | 3 |
| RGD63 | 63mm | 63 | 3.50 | 3 |
| RGD75 | 75mm | 75 | 3.50 | 3 |
| RGD90 | 90mm | 90 | 4.50 | 3 |
| RGD110 | 110mm | 110 | 4.50 | 3 |
Quality Control
Every ELECMAN people know deeply the core value of ELECMAN is to provide high quality products to customers, that is why ELECMAN QC departments have very strict quality controlling process, from raw material to products, ELECMAN QC department supervise every process, make sure every process follow the standard for IEC 61386 carbon steel Rigid metallic conduit(IEC Rigid conduit). QC department need to inspect the dimensions, welding line, zinc coatings and bending feature.
Packing Information
IEC 61386 carbon steel Rigid metallic conduit(IEC Rigid conduit) are packed in bundles with woven bag, we also can put customers' sticker on pipes, on woven bag, we will put a big sticker with detailed information for customers to distinguish different sizes.
