| Place of Origin: | China |
|---|---|
| Brand Name: | ELECMAN |
| Certification: | IEC 61386 |
| Model Number: | RGD |
| Minimum Order Quantity: | 100 Pcs |
| Price: | Negotiate |
| Packaging Details: | Packed in Bundles with Woven Bag |
| Delivery Time: | 30 Days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 Pcs/Day |
| Material: | Steel | Surface Finish: | Hot Dipped Galvanized |
|---|---|---|---|
| Type: | Threaded | Size: | 20mm-110mm |
| Section Shape: | Round | Color: | Sliver |
| High Light: | IEC 61386-21 Rigid Metal Conduit,HDG Rigid Metal Conduit,IEC Rigid Pipe 40mm |
||

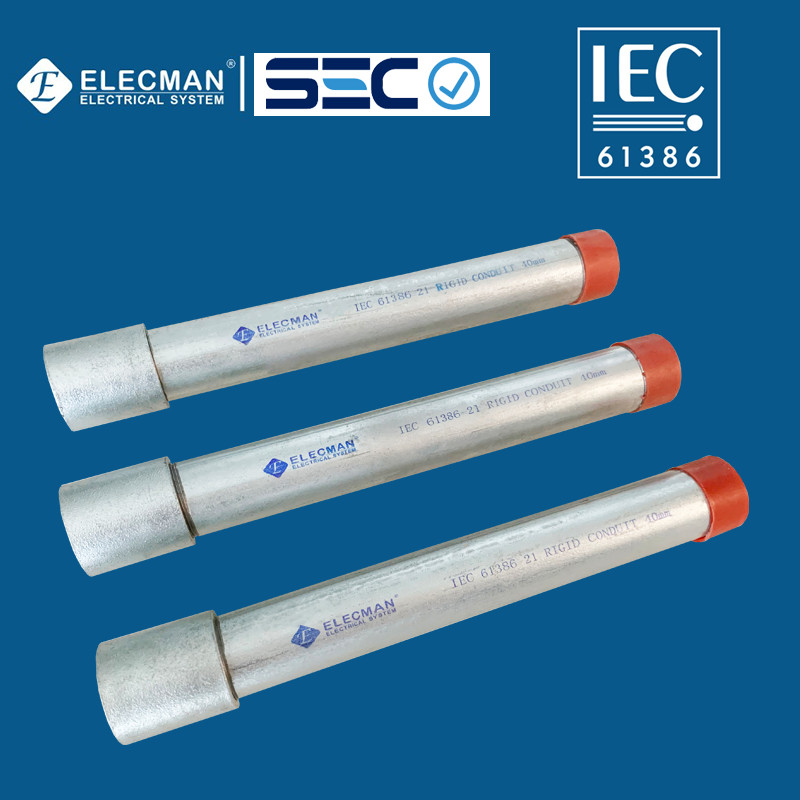

ELECMAN ® IEC 61386-21 HDG Rigid Metal Conduit(RMC) IEC Rigid Pipe 40mm
Applications
ELECMAN® IEC 61386-21 HDG Rigid Metal Conduit(RMC) is used to protect insulated electrical conductors and cables from magnetic fields, impact damage and crushing. IEC Rigid conduit has much thicker walls than IEC EMT, and is more expensive as a result. But the thickness of rigid conduit makes it perfect for outdoor installation. Rigid conduit will continue to do its job, even in extreme weather conditions.
Features
Certifications and Compliances
ELECMAN® IEC 61386 carbon steel Rigid metallic conduit(IEC Rigid conduit) shall be carbon steel, electrically welded, galvanized and produced to the following specifications:
Specification Data
ELECMAN ® IEC 61386 carbon steel Rigid metallic conduit(IEC Rigid conduit) is listed to Chile SEC Safety Standard and manufactured in accordance with IEC 61386 - 21. details shall accord with following table. ELECMAN provides full size IEC 61386 Rigid metallic conduit from 20mm to 110mm.
| CAT # | Trade size | O.D. | Thickness | Length |
| mm | mm | m | ||
| RGD20 | 20mm | 20 | 2.50 | 3 |
| RGD25 | 25mm | 25 | 2.50 | 3 |
| RGD32 | 32mm | 32 | 3.00 | 3 |
| RGD40 | 40mm | 40 | 3.25 | 3 |
| RGD50 | 50mm | 50 | 3.25 | 3 |
| RGD63 | 63mm | 63 | 3.50 | 3 |
| RGD75 | 75mm | 75 | 3.50 | 3 |
| RGD90 | 90mm | 90 | 4.50 | 3 |
| RGD110 | 110mm | 110 | 4.50 | 3 |
Quality Control
Every ELECMAN people know deeply the core value of ELECMAN is to provide high quality products to customers, that is why ELECMAN QC departments have very strict quality controlling process, from raw material to products, ELECMAN QC department supervise every process, make sure every process follow the standard for IEC 61386 carbon steel Rigid metallic conduit(IEC Rigid conduit). QC department need to inspect the dimensions, welding line, zinc coatings and bending feature.
Packing Information
IEC 61386 carbon steel Rigid metallic conduit(IEC Rigid conduit) are packed in bundles with woven bag, we also can put customers' sticker on pipes, on woven bag, we will put a big sticker with detailed information for customers to distinguish different sizes.
